9.3.4 Water Balance

The analysis results of Water Balance will tell how the water is routed among different sectors, like evapotranspiration, infiltration and surface runoff. The results can be found in two places. One is the Water Balance Results table, which is by default located at the bottom of the main interface, and the other is to click the Water Balance button in the Simulation toolbar.

Water Balance Results table shows the average results of yearly amount.

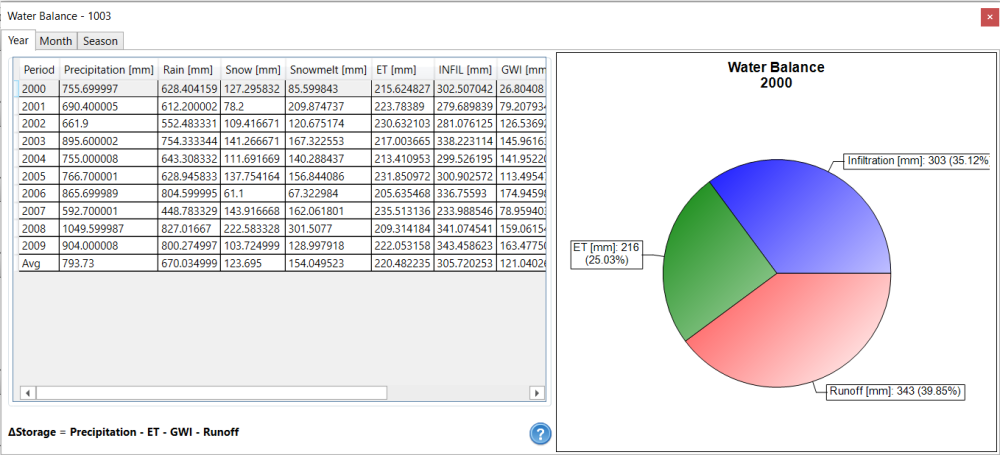

Users can view the Water Balance results in terms of yearly, monthly and quarterly distribution for each command. To do that, first select the desired command and then open the Water Balance window by clicking the button in the Simulation toolbar.
