6.4.7 Decouple Geometry

When using the Assign Geometry tool to assign a command on Schematic View to a GIS geometry on the Map, a OTTHYMO Map command will also added to and shown on the map. This Map command is synchronized from the command on Schematic View.

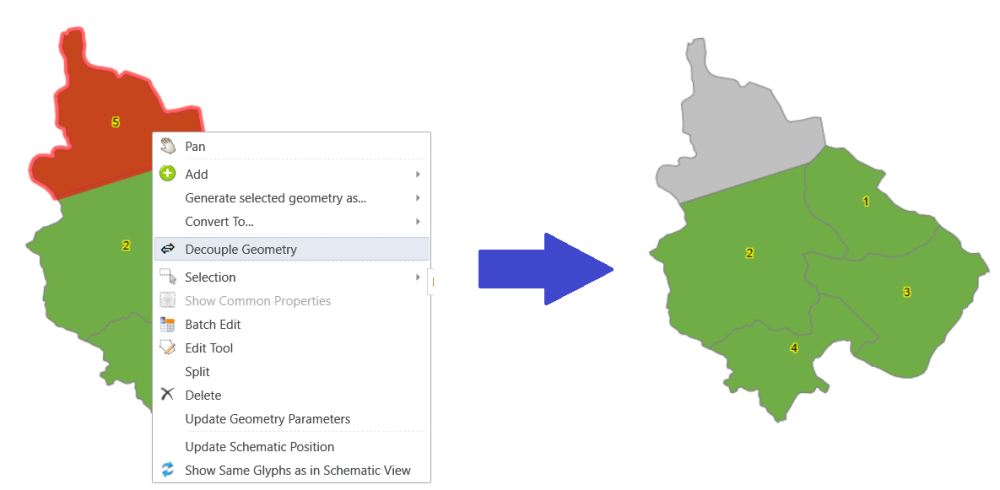

If users want to remove the assignment between the map geometry and the command on the Schematic View, users can select the Map command and right click to open the context menu and select Decouple Geometry. Then, the Map command will be removed from the map, but the command on the Schematic View will stay and the GIS geometry will not be changed.
