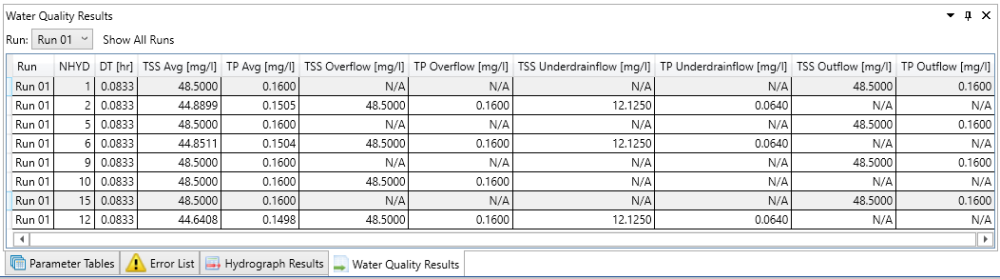

The Water Quality Results window is the same window appearing for single-event simulation and continuous simulation. By default, this window is at the bottom of the main interface. It’s used to show the water quality summary results of each hydrologic object.

In case there are multiple simulation runs, only summary results of select run (selected in scenario property) is shown in the table. To switch to another run, select the run from the drop-down list above the data table. It’s possible to show summary results of all runs by clicking the Show All Runs button.

Same as Parameter Tables window, the hydrologic object could be zoomed in by double-clicking on the data record.
