Step 4: Run Simulations for Post-Development Conditions with LIDs - Visual OTTHYMO

Following the similar procedure to run and view results for the scenario of post-development conditions with LIDs.

Find the scenario “Post-Dev. Solved” under the Drainage Network Scenarios group in the Project Manager. Double-click the scenario to open it in a new tab on Schematic view.

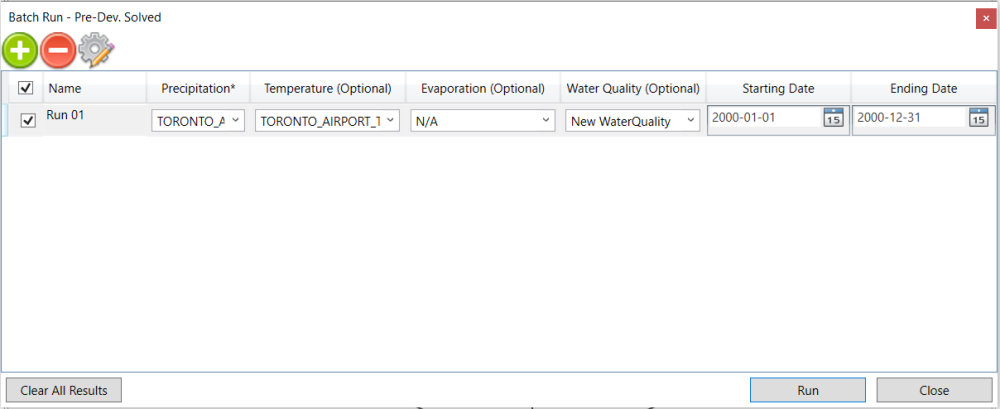

Click the Run button in the Simulation toolbar. In the opened Batch Run window, make sure your settings are the same as below. Click the Run button on the Batch Run window to finish the run.

After the simulation is done, the labeled schematic will look like the figure below.
