6.5 Updating Hydrologic Object Location in Schematic View

The location of hydrologic objects in schematic view can be determined based on their geospatial location on map. As a result, the hydrologic objects will be in a similar location in schematic view, making the comparison easier.

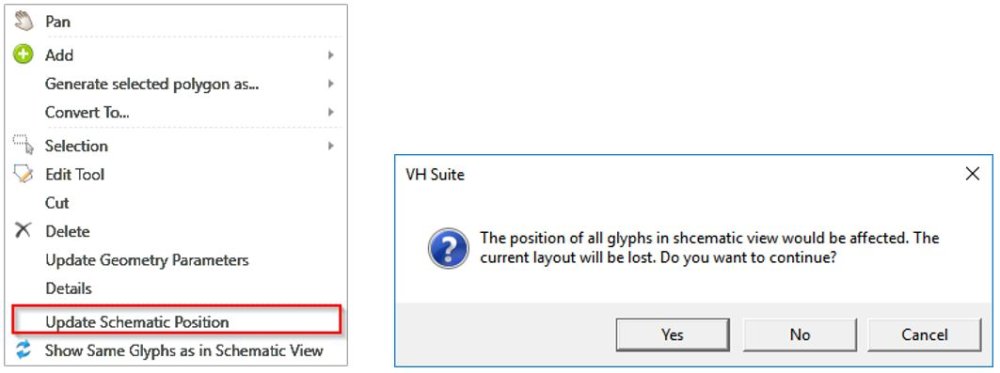

To update the location, choose the Update Schematic Position context menu and click Yes on the confirmation window. The location of all hydrologic objects would be updated.

For some models with large number of hydrologic objects, the location of few hydrologic objects may not be completely accurate. They need to be adjusted manually.
