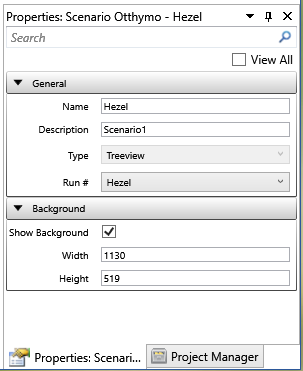

Scenario settings are available in Properties window. To show the scenario properties, open the scenario and deselect all objects.

The settings are described in the table below.

Setting Description
Name The name of the scenario
Description The description of the scenario
Type The type of the view. It can’t be changed.
Run # The active simulation run
Show Background If the background will be displayed in Schematic View
Width The width of the background in point
Height The height of the background in point
