The following tables list the icons from the Toolbar and their name. There are three (3) tabs in total: Home, GIS and Simulation. A brief description of the contents of these tabs are given in Table 4-3 Table 4-5. For a more detailed description of each Toolbar item, please refer to the Help System within the program.

TABLE 4-2 FILE MENU

Icon Command Icon Command
New Project
Creates a new project
Open Project
Opens an existing project
Save Project
Saves the current project
Save Project As
Saves the current project under a different name
Import
Import scenarios
Export
Export the current scenario
Copy to Clipboard
Copy select objects to clipboard
Print
Print the canvas

TABLE 4-3 HOME TAB

Icon Command Icon Command
New Project
Creates a new project
Delete
Deletes selection
Open Project
Opens an existing project
Undo
Removes the latest action
Save Project
Saves the current project
Redo
Repeats the last action
Save Project As
Saves the current project under a different name

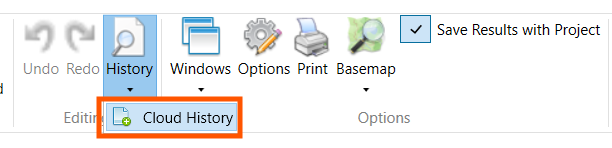

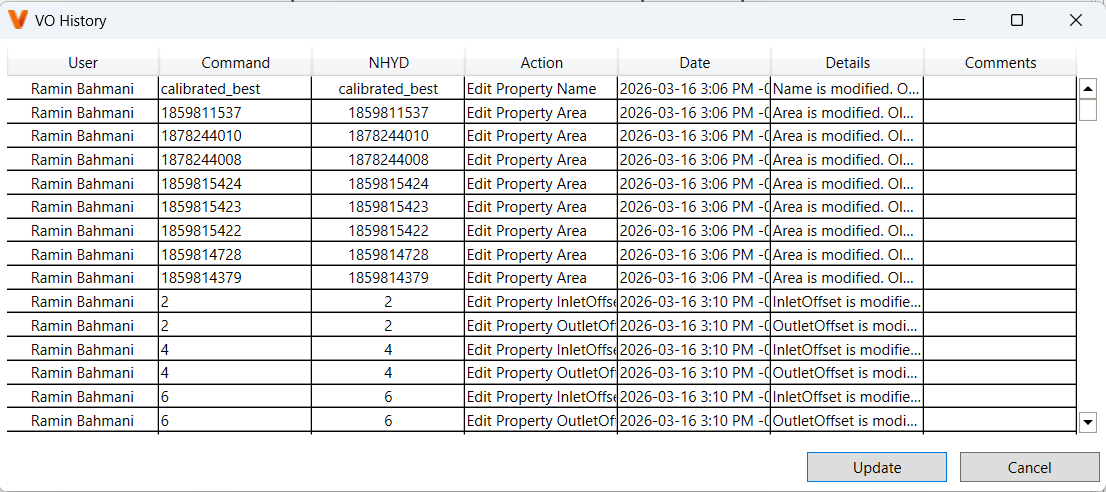

Edit History
Displays list of actions performed by the modeler(s)
Copy
Copies the selection to the clip-board
Find
Locates a specific object by ID or name
Cut
Extracts the selection to the clipboard
Windows
Provides dropdown for selection of windows to be displayed
Paste
Pastes copied or cut hydrologic objects
Options
Accesses window to define gen-eral settings details such as Unit and Precision, etc.

TABLE 4-4 GIS TAB

Icon Command Icon Command
Add Layer
Provides Dropdown to add an imported GIS layer,
Group Map layer or Base Map Layer into the Map View.
Find Feature
Locates a specific object or specific text in the Map.
Attribute Table
Accesses Attributes Table of selected feature.
Pan
Allows to pan around the map.
Zoom In
Zooms into the selected area.
Zoom Out
Zooms out from selected area.
Fixed Zoom In
Zooms in on the map at a preset scale, usually into
the center of the Map.
Fixed Zoom Out
Zooms out on the map at a preset scale usually from the center of the Map.
Last Extent
Brings the user back to the last extent view.
Next Extent
Brings back to current extent if the Last Extent was used to view previous extent.
Zoom Pan
Zoom in/out depending on panning up or down.
Full Extent
Shows the full extent of the map.
Select Feature
Select features on the Map.
Identify
Identifies the selected features and displays all the attributes of it.
Add Vertex
When in editing mode (double click a focused feature)
allows to add a new vertex along an existing polyline or polygon shape.
Remove Vertex
When in editing mode deletes any existing vertex from a project object
**Edit Tool*
Select features on map to edit
Add Link
Create the link between two hydrologic objects on map
Point
Allows to snap to a point.
MidPoint
Allows to snap to a vertex when required
Vertex
Allows to snap to the vertex.
Intersection
Allows to snap to the intersection
Edge
Allows to snap along the edge of polyline or polygon.
EndPoint
Allows to snap to the end point of polyline or polygon.
Assign Geometry
Assign geometry to hydrologic objects
Calculate CN
Calculate CN based on soil and land use layer and assign to NasHyd or StandHyd
Calculate Area Weighted
Calculate the parameter values with given layer using area-weighted method
Calculate Landuse Percentage
Calculate the Area and Percent-age values with given layer using are-weighted method

TABLE 4-5 SIMULATION TAB

Icon Command Icon Command
Run
Runs simulation
Hydrograph
Displays hydrograph window
Detail Output
Displays the detail text output for selected objects
Summary Output
Displays the summary text output for selected objects
Cross Scenario Plot
Plots hydrograph for objects from different scenarios
Hydrograph Result
Display the hydrograph summary in a table
Flow Data
Displays the hydrograph time-series in a table
Resource Library
Displays the Resource Library window
Convert to CN *
Converts the CN to CN *
Batch Assign
Assigns parameter value of selected parameter to given values
Calibrate Commands
Changes parameter values with given percentage
Plot Calibration
Plots calculated and observed hydrograph
Export Channel Roughness
Export the channel roughness to a file
Export Channel Cross Sections
Export the channel cross sections to a file
