By default the model should open with a scenario called “Pre-Dev. Solved”. If you have a different scenario open, find the scenario under the Drainage Network Scenarios group in the Project Manager. Double-click the scenario to open it in Schematic view. If you just see a part of the scenario, right click the empty place on the canvas to open context menu and select Zoom Extent.

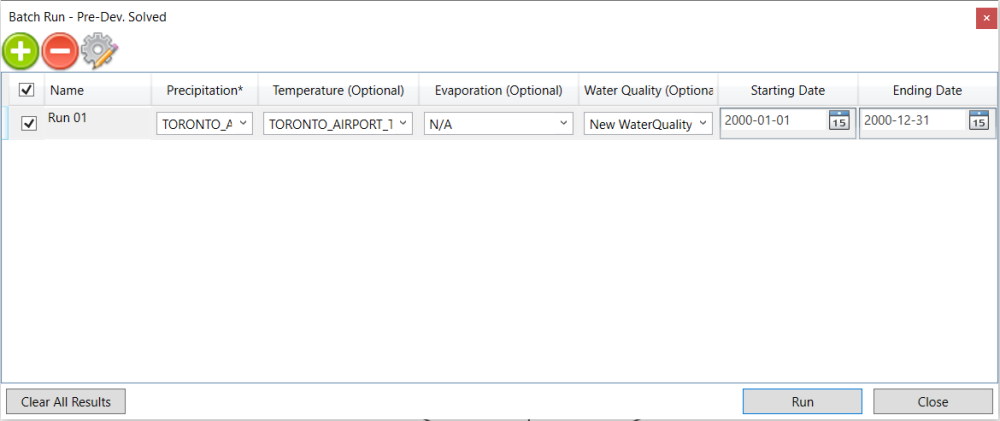

Click the Run button in the Simulation toolbar. In the opened Batch Run window, make sure your settings are the same as below. Click the Run button on the Batch Run window to finish the run.

After the simulation is done, the model will display the results with labels as below. You may need to move positions of commands on the Schematic view to see all label contents.
