The Project Manager is to manage the scenarios and climate data in the project. By default, it’s located on the right-hand side besides the Properties window.

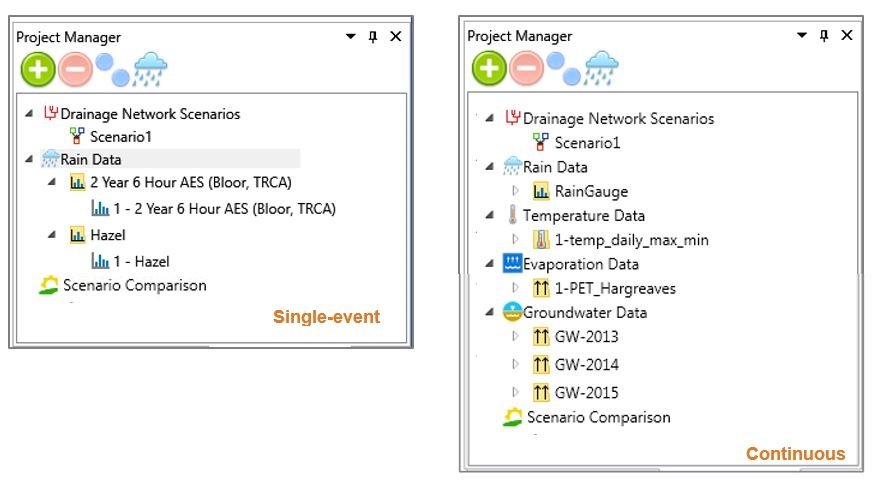

THE PROJECT MANAGER IN CONTINUOUS OTTHYMO PROJECT HAS THREE MORE SECTIONS (TEMPERATURE DATA, EVAPORATION DATA, GROUNDWATER DATA AND SCENARIO COMPARISON) COMPARED TO THE ONE IN SINGLE-EVENT OTTHYMO PROJECT AS SHOWN BELOW.
On the top of Project Manager is the tool bar. The buttons are described in Table 4-6.
TABLE 4-6 PROJECT MANAGER TOOLBAR
| Icon | Command | Icon | Command |
|---|---|---|---|
 |
Add Add Scenario or Open Resource Library |
 |
Duplicate Duplicate Selected Item |
 |
Delete Delete Selected Item |
 |
Resource Library Open Resource Library |
Below the toolbar there is a tree view of scenarios and climate data. Items are represented with icons described in Table 4-7. Some of the sections would open the detailed information window by double-click, which is also described in Table 4-7.
TABLE 4-7 ICONS IN PROJECT MANAGER TREE VIEW
| Icon | Command | Icon | Command |
|---|---|---|---|
 |
Scenario Section |  |
Evaporation Data Section |
 |
Scenario Open Scenario |
 |
Groundwater Data Section |
 |
Rain Data Section |  |
Evaporation / Groundwater Group |
 |
Rain Group Open Rain Group Viewer for Single-event Simulation |
 |
Evaporation / Groundwater Data Open Data Viewer |
 |
Rain Data Open Storm Viewer |
 |
Scenario Comparison |
 |
Temperature Data Section |  |
Flow Data Section |
 |
Temperature Group |  |
Flow Group |
 |
Temperature Data Open Temperature Data Viewer |
 |
Flow Data Open Flow Data Viewer |
 |
Water Quality Section | |
Water Quality Data Open Water Quality Data Viewer |

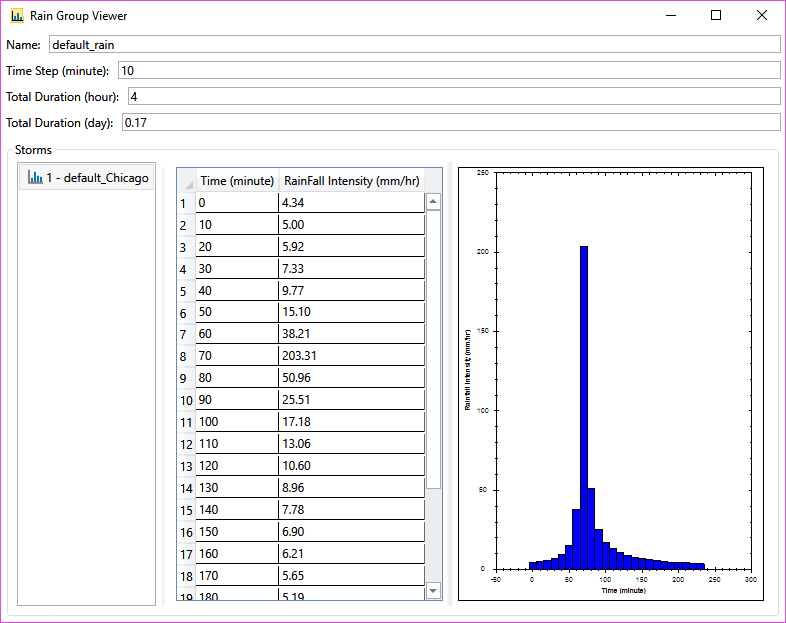

For example, the Rain Group Viewer as shown below will be opened by double-clicking on Rain Group section.

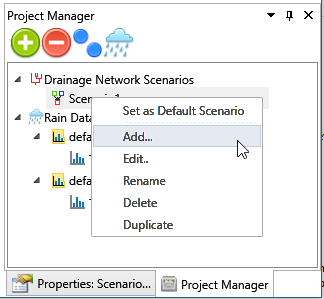

Context menus are also available in the tree view as shown in the figure below. If one menu item is not applied to current item, it will be greyed out. For example, the Set as Default Scenario menu is only applied to scenario. All the menus are described in Table 4-8.
TABLE 4-8 CONTEXT MENU IN PROJECT MANAGER TREE VIEW
| Menu | Command | Applicable Items |
|---|---|---|
| Set as Default Scenario | Set selected scenario as default scenario | |
| Add… | Add Scenario or Open Resource Library | |
| Edit… | Open Scenario or Data Viewer | |
| Rename | Rename the selected item | |
| Delete | Delete Selected Item | |
| Duplicate | Duplicate Selected Item | |
