12.1.2.1.1.10.1.3.1. Scale (Minimum, Middle, Maximum)

In the Scale tab, users can customize various properties related to the scale of the gauge control.

*All color pickers in this window feature three tabs, providing users with the ability to select colors either by manipulating sliders or input fields in the RGBA color picker or by choosing from a scrollable list of pre-defined options. For more information on these tabs, please refer to the description for the First Color field.

1. Scale Name: This field allows users to select the specific scale they want to configure from a dropdown menu.
   • Scales: Base Scale, Min Scale, Middle Scale, or Max Scale.

     • Gauge Scales Preview: Web View

!Depending on the selected scale, the available fields in this window may vary. In this section of the manual, we will be focusing on the fields specifically applicable to the minimum, middle, or maximum scales. For information on the fields relevant to the base scale, click here.

2. Enable: This is a checkbox which, if selected, allows users to enable the display of the selected scale.
3. Back Color: This is a color picker that allows users to choose the background color of the scale.
   • This color is used as the initial color or the starting point of the gradient that defines the scale’s background.
4. Back Color 2: This is a color picker that allows users to choose the secondary color of the scale.
   • This color is used as the final color or the ending point of the gradient that defines the scale’s background.

   • Gauge Scale Background Color Customization: Web View

5. Border Color: This is a color picker that allows users to choose the color of the scale’s border.
6. Border Width: This is a numeric updown field that allows users to set the width of the scale’s border.

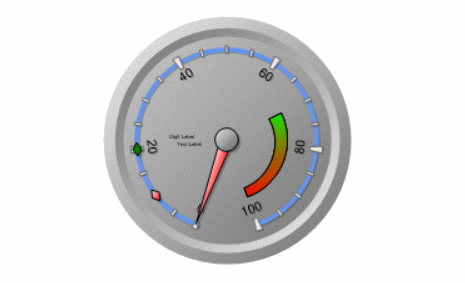

   • Gauge Scale Border Customization: Web View

7. Distance: This is a numeric updown field that allows users to specify the distance between the scale and the gauge control.
   • This value determines the spacing or gap between the scale and other elements of the gauge control.

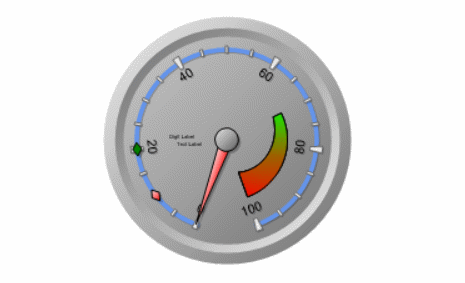

   • Gauge Scale Distance Customization: Web View

8. Start Width: This is a numeric updown field that allows users to specify the starting width of the scale.
   • This value determines the initial width of the scale at its starting point.

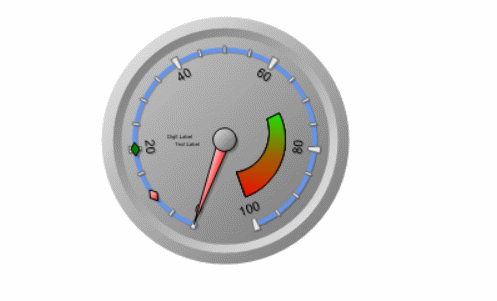

   • Gauge Scale Start Width Customization: Web View

9. End Width: This is a numeric updown field that allows users to specify the ending width of the scale.
   • This value determines the final width of the scale at its ending point.

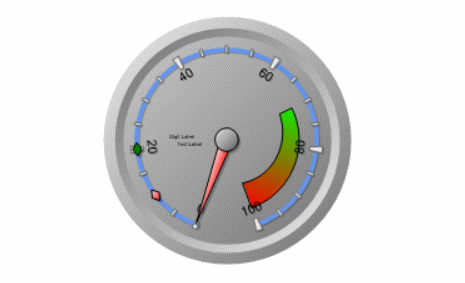

   • Gauge Scale End Width Customization: Web View
