12.1.2.1.1.10.1.4. Needle

In the Needle tab, users can customize various properties related to the needle of the gauge control.

*All color pickers in this window feature three tabs, providing users with the ability to select colors either by manipulating sliders or input fields in the RGBA color picker or by choosing from a scrollable list of pre-defined options. For more information on these tabs, please refer to the description for the First Color field.

1. Needle Name: This field allows users to select the specific needle they want to configure from a dropdown menu.
   • Needles: Needle 1, Needle 2, or Needle 3.

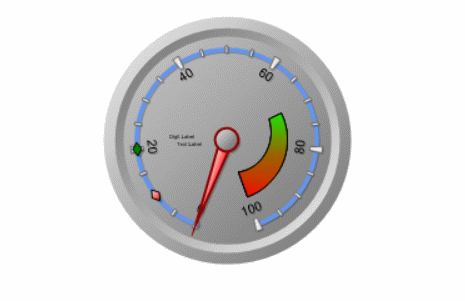

     • Gauge Needles Preview: Web View

2. Enable: This is a checkbox which, if selected, allows users to enable the display of the selected needle.
3. Back Color: This is a color picker that allows users to choose the background color of the needle.
   • This color is used as the initial color or the starting point of the gradient that defines the needle’s background.
4. Back Color 2: This is a color picker that allows users to choose the secondary color of the needle.
   • This color is used as the final color or the ending point of the gradient that defines the needle’s background.

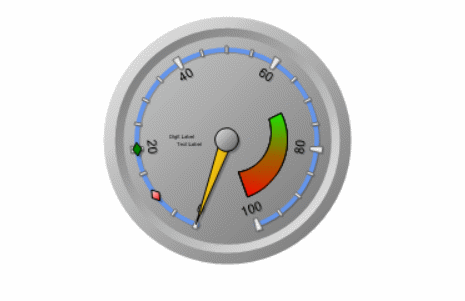

   • Gauge Needle Background Color Preview: Web View

5. Border Color: This is a color picker that allows users to choose the color of the needle’s border.
6. Border Width: This is a numeric updown field that allows users to set the width of the needle’s border.

   • Gauge Needle Border Preview: Web View
