12.1.2.1.1.11.1.2. Grid – Control Properties

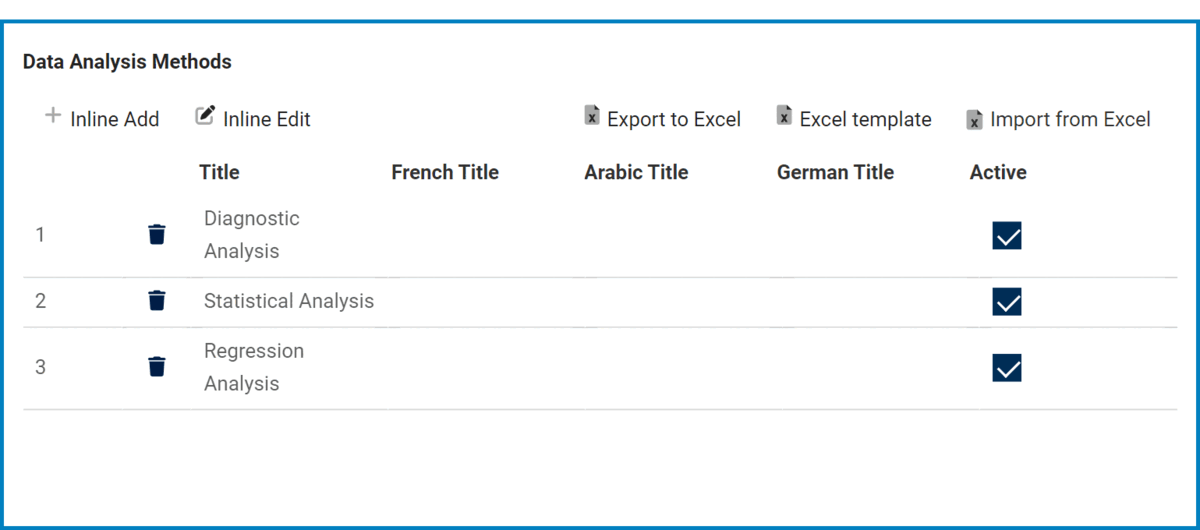

In the Grid tab of the Control Properties window, users can build and customize the grid.

*In the General tab of this window, users can configure business rules for the grid control. For more information on this matter, please click here and navigate to the relevant section.

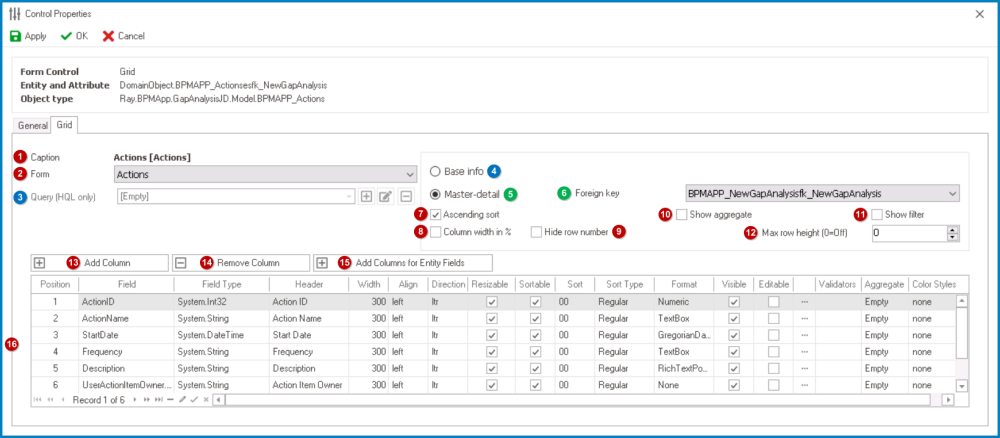

1. Caption: This field displays the (English) caption of the grid.
   • To modify the caption displayed in this field, refer to the Name category in the Control Properties panel.
2. Form: This is a single-select dropdown field that retrieves the list of forms (from the List of Forms section of the Forms module). It allows users to select which form they want to display the attributes of in the grid.

!Only forms associated with the selected attribute for the grid will be displayed in this dropdown. Depending on which attribute is selected, the list of available forms may vary. For more information on the binding properties for grids, click here.

3. Query (HQL Only:) This is a single-select dropdown field that retrieves the list of relevant queries (from the KPI section of the Entities module). It allows users to select a custom HQL query for the data source of a grid, providing greater flexibility and control over the displayed information.
   • To define a new query, select the button.
     • It will display the Query Editor window.
   • To modify an existing query, select the button.
   • To remove a query, select the button.

*To enable this field, users must first select the Base Info option.

4. Base Info: This option allows users to display the fields of the custom entity associated with the grid, without showing related detail records. It is useful for presenting a simplified view of the data when only basic information is required.
   • If this option is selected, it will enable the Query (HQL Only) field, allowing users to select or define a custom query for the grid data source.

*Detail records are additional records related to the custom entity associated with the grid, often through a foreign key relationship.

5. Master-Detail: This option allows users to display related detail records in addition to the custom entity’s fields in the grid, based on a defined relationship (such as a foreign key). This is helpful when a more detailed view of the data is required.
   • If this option is selected, it will enable the Foreign Key field, allowing users to select a relationship between the main entity and the custom entity’s detail records, which will be displayed in the grid.
6. Foreign Key: This is a single-select dropdown field that retrieves the list of foreign keys (from the Entity Designer section of the Entities module. It allows users to specify a relationship between the main entity and the custom entity’s detail records, which will be displayed in the grid.


   !!Only foreign keys under the entity associated with the grid will be displayed in this dropdown.

*To enable this field, users must first select the Master-Detail option.

7. Ascending Sort: This is a checkbox which, if selected, allows users to sort the grid data in ascending order based on the selected column header.
8. Column Width in %: This is a checkbox which, if selected, allows users to automatically adjust the width of the grid columns as a percentage of the grid width.
9. Hide Row Number: This is a checkbox which, if selected, allows users to hide the row numbers displayed in the first column of the grid.

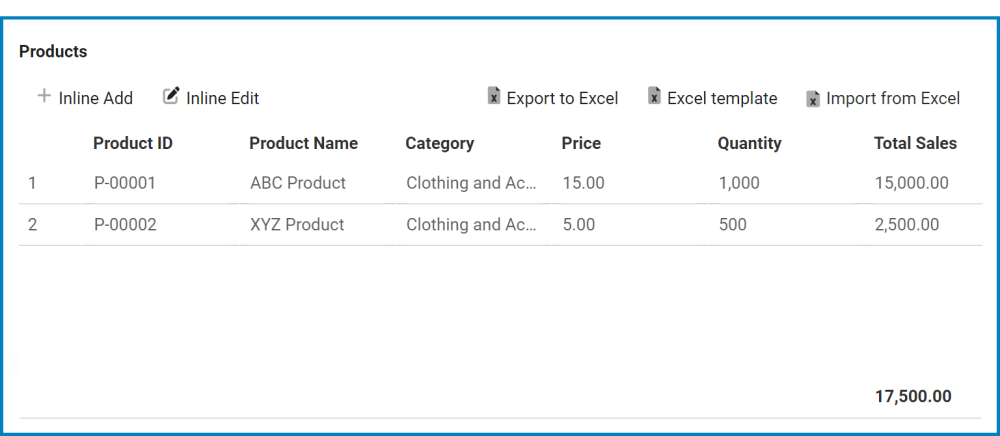

10. Show Aggregate: This is a checkbox which, if selected, allows users to display aggregate values for selected columns in the grid footer, such as sum or average.

11. Show Filter: This is a checkbox which, if selected, allows users to display a filter row at the top of the grid where they can filter the data based on specific criteria.

12. Max Row Height: This is a numeric updown field that allows users to set the maximum height of the rows in the grid.
    • By default, the maximum height is set to 0. To adjust this size, users can enter numbers into the field either manually or by clicking the increment/decrement arrows.


      **If this field is kept at 0 or left empty altogether, the row height will automatically adjust to display rich text content. If a value is inputted in the field, however, all rows in the grid will be set to the determined height.

13. Add Column: This button allows users to add a new column to the grid.
    • If selected, it will display the Grid Column window, in which users can define the properties of the column.
14. Remove Column: This button allows users to remove a selected column in the grid.
15. Add Columns for Entity Fields: This button allows users to add all fields in the related entity as columns in the grid.

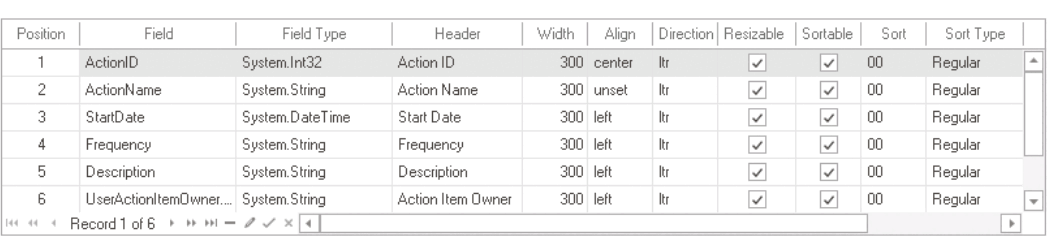

16. Column Customization: In this table, users can access and customize the columns populating the grid.

    • Position: This field allows users to specify the order in which the column appears in the grid.
    • Field: This field allows users to select the corresponding attribute for the column.
      • To select a field or attribute, click on the ellipses () inside the box. It will display the Object Browser window, in which users can access a list of the associated entity’s attributes.
    • Field Type: This field displays the data type of the attribute linked to the column.
    • Header: This field allows users to specify the text that appears in the header of the column.
      • Users can input their preferred header directly into this field. Alternatively, they can click on the ellipses to display the Grid Column Header Edit window, in which they can input or modify the caption in all available languages.

        • As English is set as the default language in the system, any caption inputted in the English caption field will be used as the display caption for the column, regardless of other language options that may be available.

          **Users can determine which languages are available for use in the Settings of the Designer. Currently, however, only five languages are supported on the web server: English, French, German, Arabic, and Hebrew.

    • Width: This field allows users to set the width of the column in pixels.
    • Align: This field allows users to specify the alignment of the text within the column. Users can choose their alignment preference from a dropdown menu.

      • Alignment Options

        1. Left: This option aligns the text to the left side of the column.
        2. Right: This option aligns the text to the right side of the column.
        3. Center: This option centers the text within the column.
        4. Default: This option aligns the text based on the language or culture setting in the web application.


    • Direction: This field allows users to specify the direction of the text within the column. Users can choose their direction preference from a dropdown menu.

      • Direction Options

        1. Left-to-Right: This option specifies that the text in the column should be read from left to right, in the standard direction for languages that use a Latin-based alphabet (such as English).
        2. Right-to-Left: This option specifies that the text in the column should be read from right to left, in the opposite direction to the standard direction for languages that use a Latin-based alphabet (such as Arabic or Hebrew).
        3. Default: This option specifies that the text direction should be based on the language or culture setting in the web application.


    • Resizable: This is a checkbox which, if selected, allows users to resize the width of the column in the grid.
    • Sortable: This is a checkbox which, if selected, allows users to sort the column by clicking on its header.
    • Sort: This field allows users to set the initial sort order of the column. Users can choose the sort order from a dropdown menu.
      • By selecting a value from this dropdown, users are essentially assigning a priority level for the column.
    • Sort Type: This field allows users to specify the type of sorting that should be used for the column. Users can choose their sorting preference from a dropdown menu.

      • Sort Types

        1. Regular: This option allows users to sort the data in the column based on their string representation. For example, if the column contains data in the format of “AA, BB, CC”, the sorting will be done alphabetically.
        2. As Numbers: This option allows users to sort the data in the column based on their numerical representation. For example, if the column contains numerical data, such as “10, 20, 30”, the sorting will be done based on their numerical value, not their string representation.


    • Format: This field allows users to specify the display format of the column.
      • To select or modify the display format, click on the ellipses () inside the field.
        • It will display the Edit Type window.


          ** If users choose to add a date field to the grid, they should select a format that matches the chosen display type for the corresponding date/time picker. This is because the selected format will override the display type. For more information on the display type options, click here.

    • Visible: This is a checkbox which, if selected, allows for the column to be visible in the grid.
    • Editable: This is a checkbox which, if selected, allows users to edit data inside the column.
    • Column State: This field allows users to set the column state per form behavior.
      • To access or modify the column state, click on the button.
        • It will display the Column Behavior Grid window.
    • Validators This field allows users to specify validation rules for the data within the column.
      • For more information on required field and range validation, click here.
    • Aggregate: This field allows users to specify how the data in the column should be aggregated. Users can choose their preferred aggregation option from a dropdown menu.

      • Aggregation Options

        1. Average: This option allows users to calculate the average of the values in the column.
        2. Empty: This option allows users to specify that the grid should not perform any aggregation on the column.
        3. Sum: This option allows users to calculate the sum of the values in the column.


    • Color Styles: This field allows users to apply color styles to the column in the grid.
      • To apply color styles to the column, click on the ellipses () inside the field.
        • It will display the Column: Color Styles window.


          **By using color styles, users can visually highlight important data or patterns in the column, making it easier to interpret and analyze the information. Users can specify conditional formatting rules for the data within the column, such as applying a specific background or text color to cells that meet certain criteria.
