After importing the sewer manholes, sewer pipes and catch basins, the map will display as below:

  • To Zoom In and Zoom Out the map, scroll mouse wheel.
  • To move the map, there are two ways. The first way is to use the Pan tool , which can be found from the GIS tab or the Quick Access Toolbar. The second way is to hold the mouse wheel to change the mouse cursor to the Pan mode .

Turn on the flow path direction

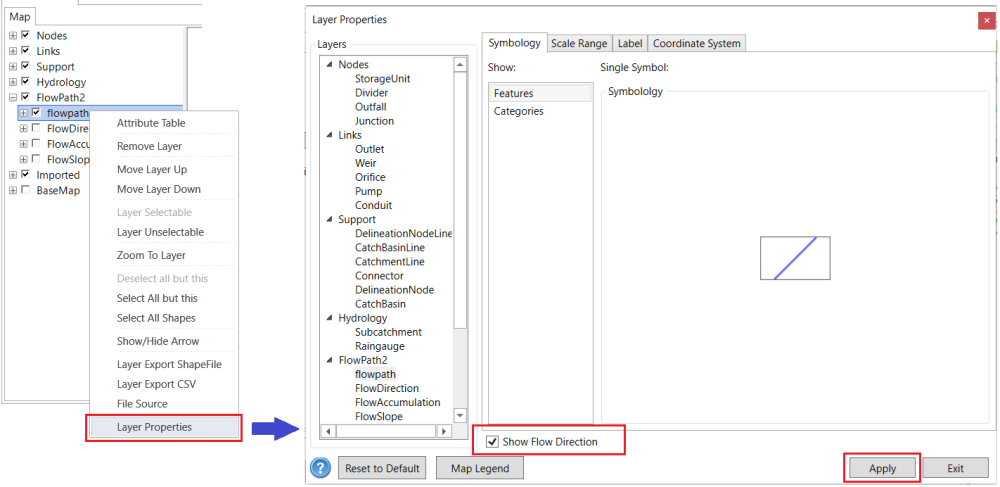

Navigate to the “flowpath” layer in the layer table of the map. Right-click the layer to open the context menu. Select Show/Hide Arrow.

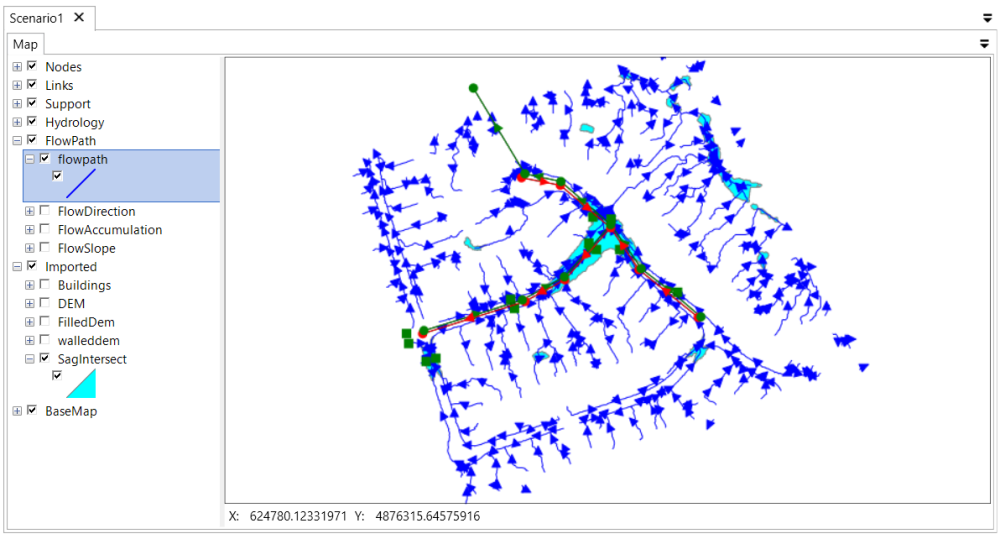

Then flow path direction will be shown with arrows.
