The Simulation tab includes tools mainly for setting up and running simulations, viewing and analyzing results, and managing database that will be used in the model.

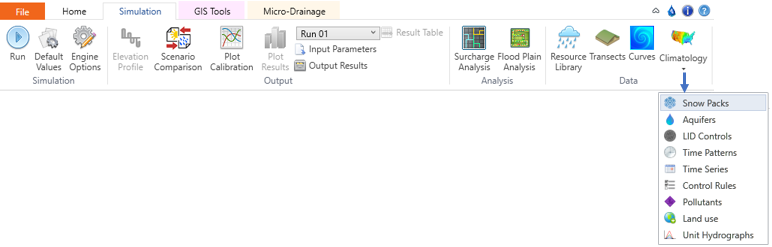

Simmulation Tab
![]()
Icon | Command | Description | Icon | Command | Description |
---|---|---|---|---|---|
|
Run | Run Simulation | |
Default Values | Default values for newly added hydrologic objects |
|
Engine Options | Engine Options | |
Elevation Profile | Displays the elevation output for selected objects |
|
Scenario Comparison | Comparing objects from different scenarios | |
Plot Calibration | Calibration viewer |
|
Plot Results | View Plot Results for selected object | |
Input Parameters | Input parameter format |
|
Output Results | Output results selected run | |
Result Table | Results Table for selected object |
|
Surcharge Analysis | Update Model Results | |
Flood Plain Analysis | Analysis based on flood depth on each major node |
|
Resource Library | Open Resource Library | |
Transects | Setup Transect |
|
Curves | Setup Curves | |
Climatology | Setup Climatology settings |
