Step 13: View Simulation Summary Results

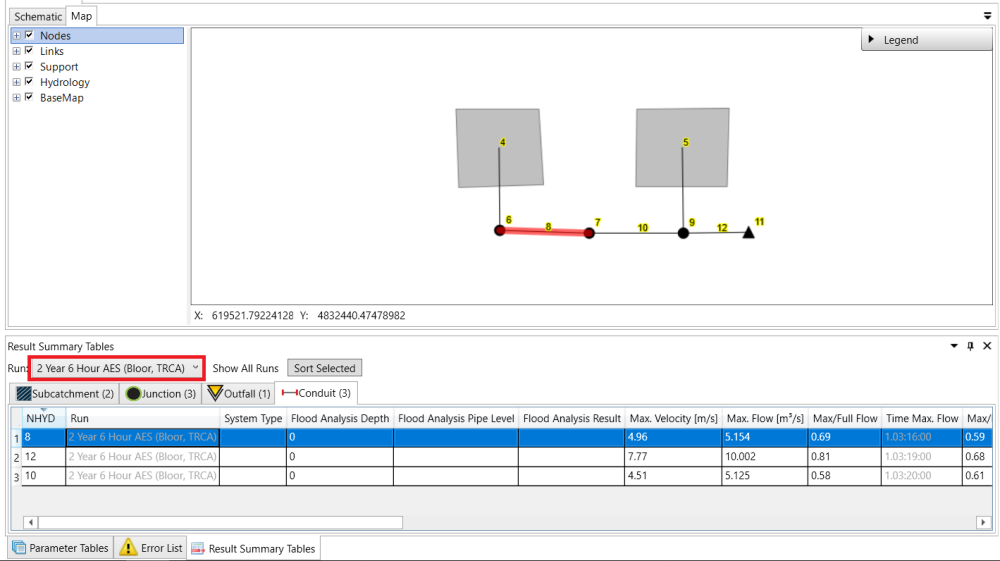

The Hydraulic Result Tables list the summary results of all the objects. Click the Hydraulic Result Tables tab and then click Conduit (3) tab. In the drop-down list of Run in the Hydraulic Result Tables to choose the simulation run.

*The number (3) in the Conduit (3) means the total number of that type of objects.

• Select one row in the table. The selected object will be highlighted on the canvas.
• Double-click on the row to zoom into the selected object.
• Click on the header of one column to sort the table by that column.

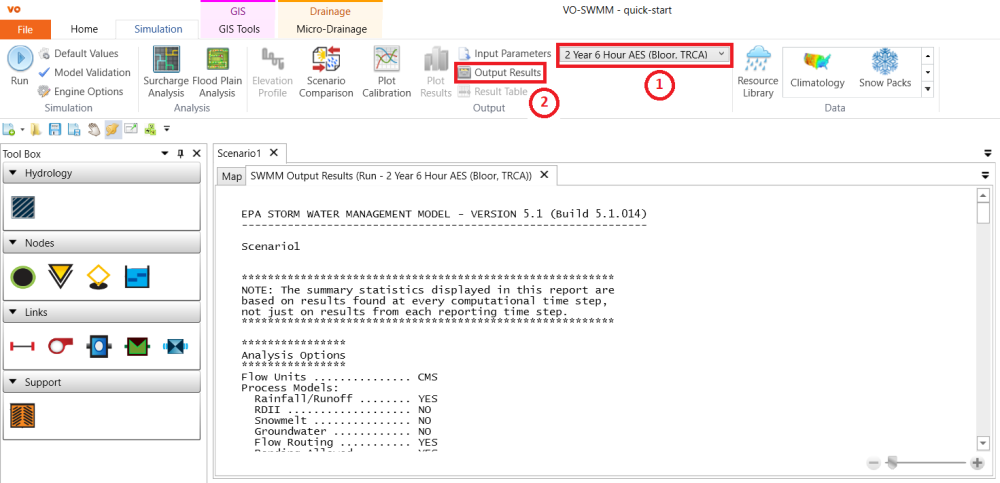

Navigate to the Simulation tab. In the drop-down list of the Output section, select the run. Click Output Results to view the summary results in a text file format.
