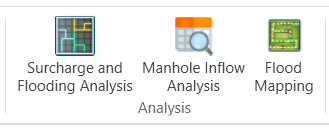

In this section, user can do analysis based on the simulation results.

Surcharge Analysis

Click the Surcharge Analysis button. In the pop-up window, in the drop-down list of Run select the run whose simulation results are to be analysis, and type in critical depth for the surcharge analysis. Click Run button to run surcharge analysis. The field Freeboard Level 1 is the distance from the Freeboard 1 to the ground and the field Freeboard Level 2 is the distance from the Freeboard 2 to the ground. When users do not want to differentiate two levels of freeboards, type the same number in the two fields.

For the minor system, there are four levels from the surcharge analysis result:

  • No surcharge: the node is not surcharged. By default, the symbol is green circle dot.
  • Surcharge Below Freeboard 2: the node is surcharged, and the water level is below Freeboard 2. By default, the symbol is yellow circle dot.
  • Surcharge Between: the node is surcharged, and the water level is between the Freeboard 2 and Freeboard 1. By default, the symbol is orange circle dot.
  • Surcharge Above Freeboard 1: the node is surcharged, and the water level is above the Freeboard Level 1. By default, the symbol is red circle dot.

For the major system without reverse driveway, there are two levels from the surcharge analysis result:

  • No surcharge: the node is not surcharged. By default, the symbol is green circle dot.
  • Surcharge: the node is surcharge and the water depth is above the value given in the field Surcharge Level under the Major Node section. By default, the symbol is red circle dot.

Flood Mapping

Click the Flood Mapping button. In the pop-up window, choose the ground elevation raster from the drop-down list of Raster Layer, and choose the run to be analyzed in the drop-down list of Run. In the Output File Path, give the folder and file name for the flood plain raster to be generated. Click OK to generate the flood plain raster.

The generated flood plain raster will be added to the map and the layer table of the map.
