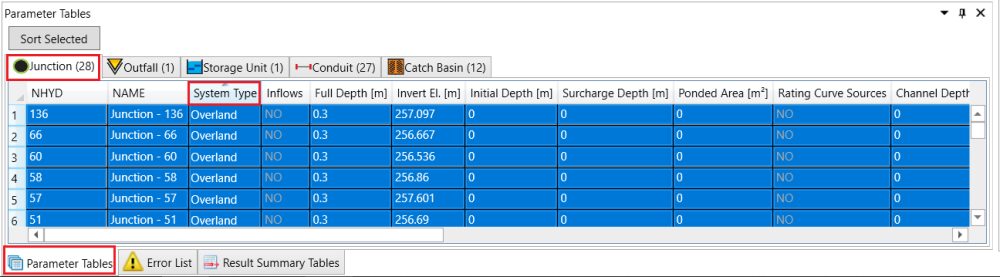

Navigate to Parameter Tables below the VOSWMM main interface. Click the Junction tab. Sort the table by click the column header of System Type. You can adjust the window size to show more rows in the table. Select all the Junction in the table whose System Type is Overland. Select the first row whose System Type is Overland. Then, hold Shift key and select the last row whose System Type is Overland.

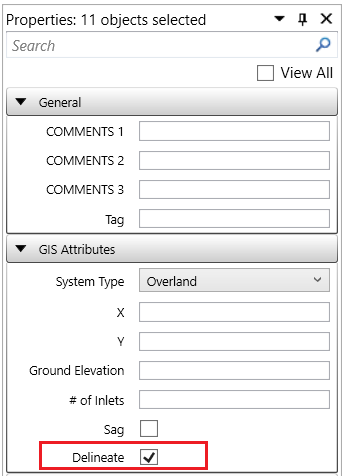

With all the overland junctions selected, navigate to the Properties tab on the right side of the VOSWMM main interface and check on the Delineate box in the Properties tab

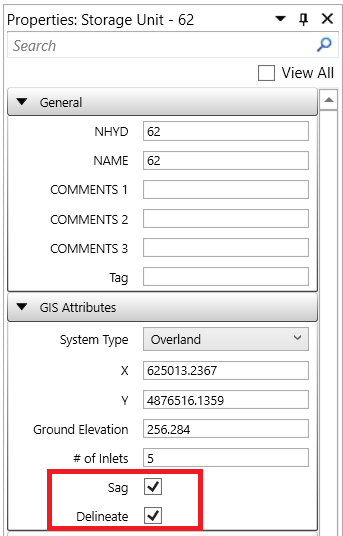

Select the Storage Unit on the map. Navigate to the Properties tab and check on the Delineation box and the Sag box in the Properties tab.

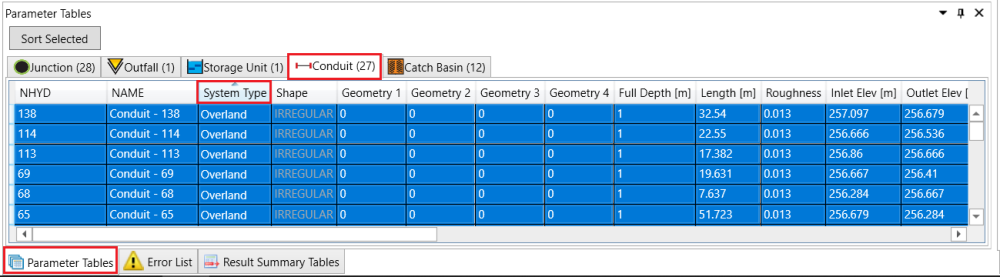

Go back to the Parameter Tables, click on the Conduit tab and sort the table by System Type by clicking on the System Type header. Select all the Conduit links whose System Type is Overland.

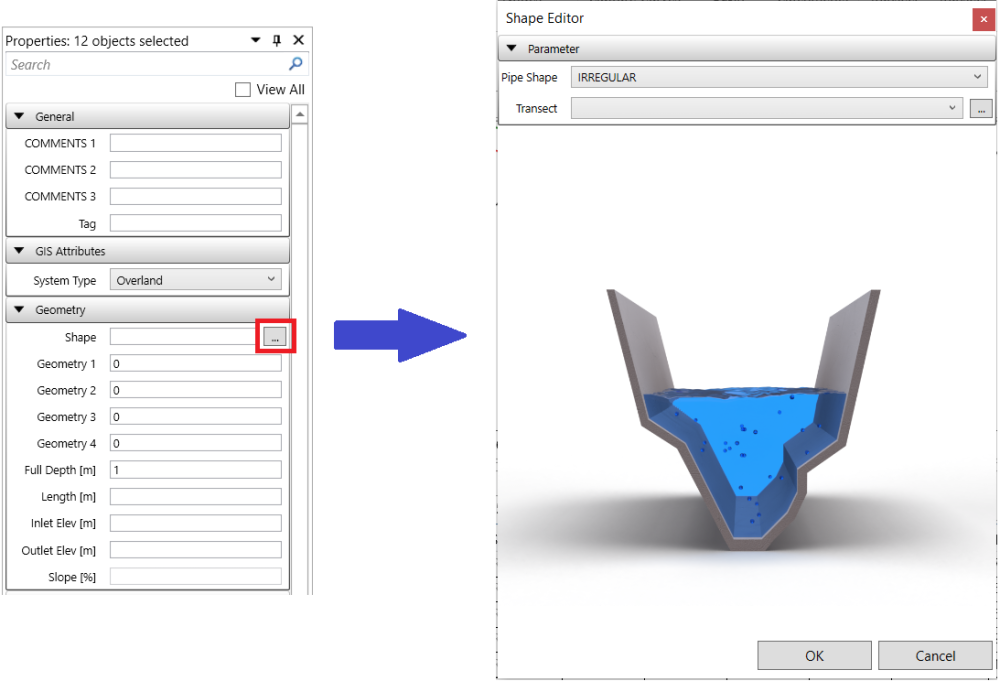

In the Properties tab, click the button next to the Shape to open the Shape Editor window.

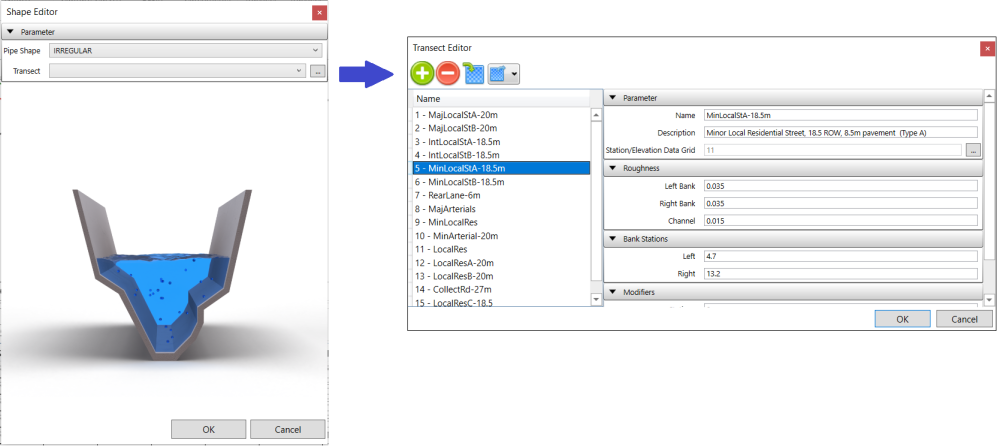

Click the button next to the Transect to open the Transect Editor. Select MinLocalStA-18.5m in the Name table on the left. Click OK to close the Transect Editor. Click OK to close the Shape Editor.
