Step 11: Add Storm Data to Model

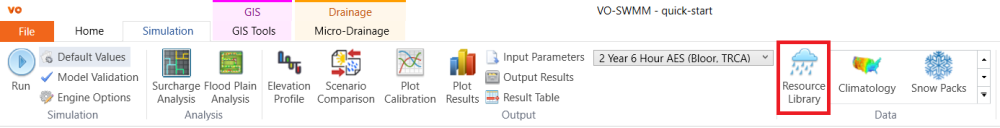

Navigate to Simulation tab and click the Resource Library button.

In the pop-up Resource Library window, navigate to and select “2 Year 6 Hour AES (Bloor, TRCA)”. Then, click the Add to Model button. A dialog window will pop up. Choose the first option “Create rain group and simulation run fro selected storms”

Click OK. A message box will show.

Close the message box by clicking OK and close the Resource Library. Check the Project Manager. The storm has been added to the Rain Data group and a run is created under the Run group.
