With the release of v1.3.0 programmers now have the ability to create a Custom Handset ratio. As more devices are released, the standard ratios 16:9 and 4:3 do not cover the devices on the market. By building a Custom UI you can create the correct UI to match the installed client device.


Interface Wizard

  1. Launch Builder
  2. Open UI section in Left pane

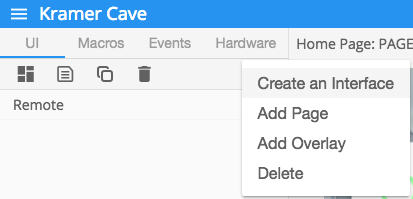

  3. Open Menu and Create An Interface

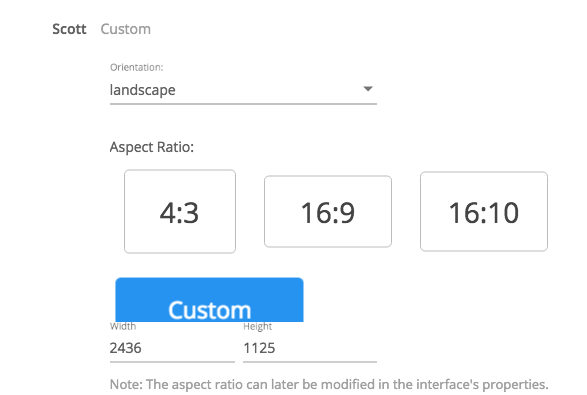

Choose the Custom Option within the Wizard

Enter Width and Height parameters

Choose the Option to create

Edit existing Interface

  1. Launch Buidler
  2. Open UI section of the Left Pane
  3. Select Interface to be changed

Refer to the Properties window after selecting the UI and select the Target Dimensions option to change the parameters

Revision: 1
Last modified: 16 March 2018
