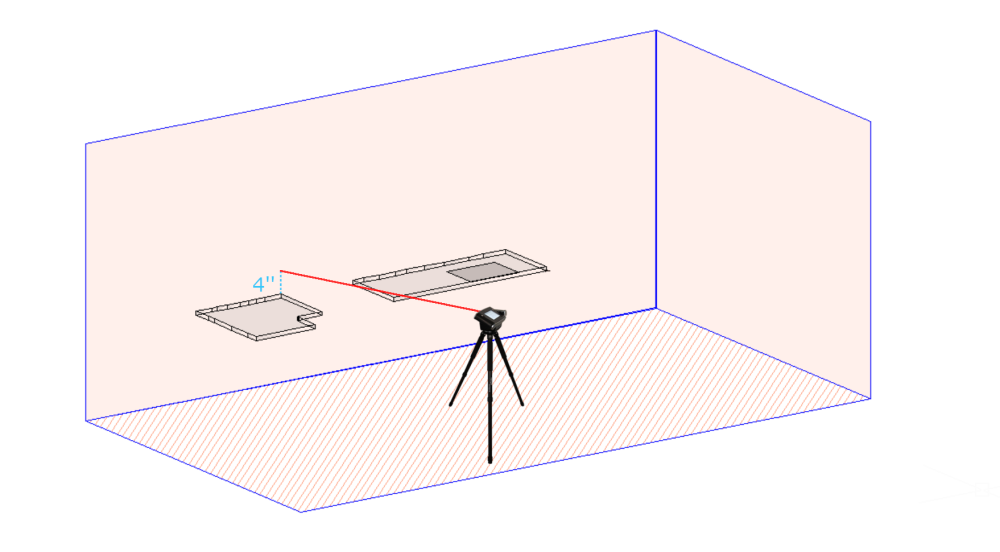

The ‘Quick Aim’ function allows a user to have the Flexijet project a point at a distance from a selected point in the the measurement drawing.

For example, this function is useful for pointing the laser in the corner above an existing laminate countertop with backsplash.

To use this function:

  1. On the ‘Flexijet’ ribbon, click the text below ‘Show CAD-point’ and select ‘Quick Aim’ from the drop-down list

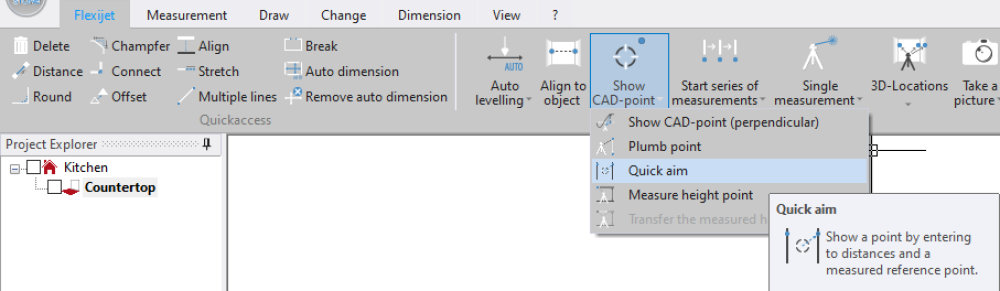

    Quick aim button from the Show CAD-point drop-down menu

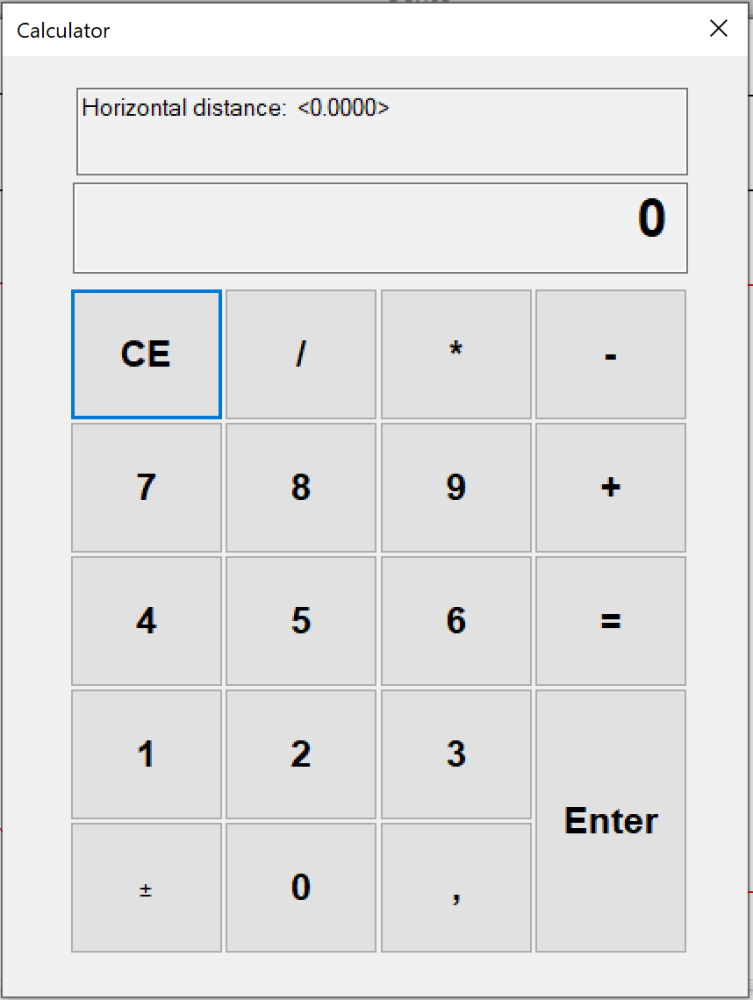

  1. If using touch mode, a numeric pad will pop up asking for the horizontal value. Generally when working with countertops, this value will be ‘0’, so click enter to continue.
  1. Now, enter the Vertical distance where you would like to show the CAD point. A positive value will project the point above where the plane was set (E.G. 4” above backsplash), while a negative value will project the point below where the plane was set (E.G. 8” down for sink centre).

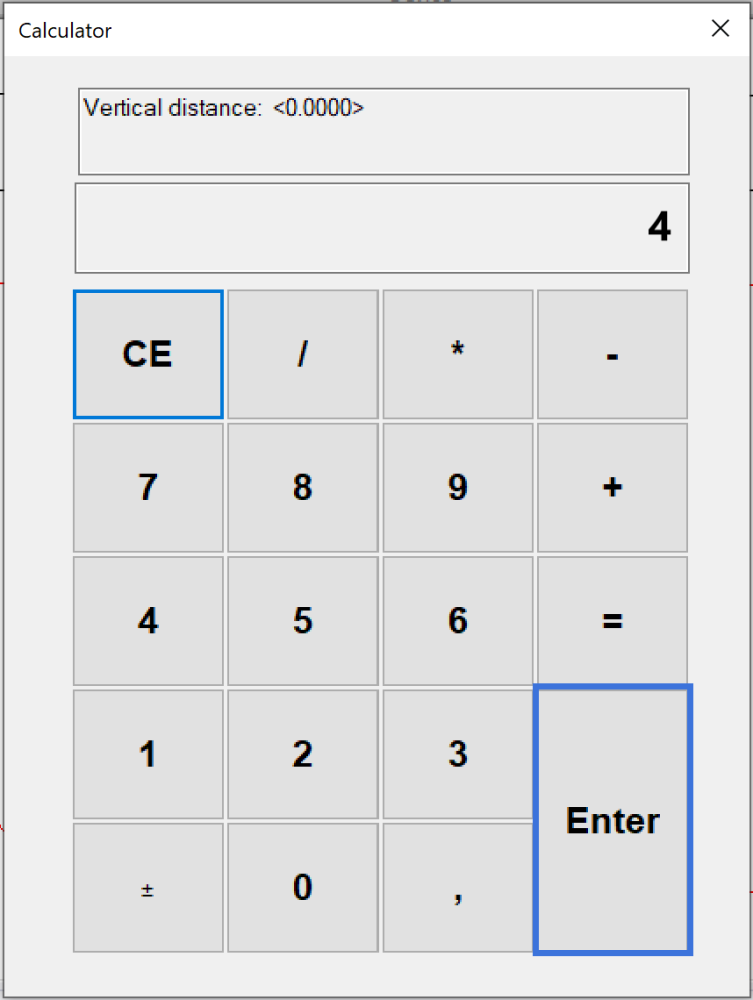

    Vertical Distance input for Quick Aim

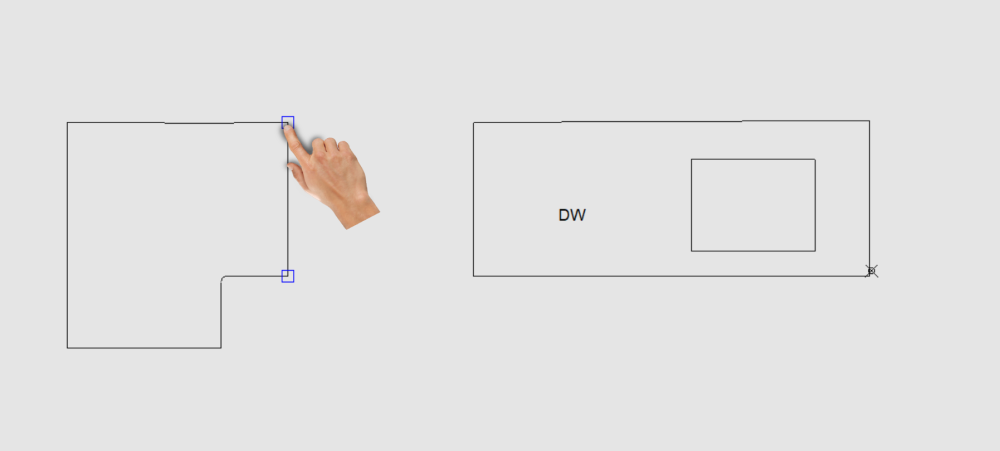

  1. Select the point you would like to project by tapping or clicking on the screen. Flexijet will now aim and point the laser at the point, at the vertical and horizontal offset specified
