Manual levelling allows users to manually define the reference to level by using 3 points, instead of using the built-in Auto-Levelling function.

Manual levelling should be used in the following situations:

  • On a ship, or other moving vessel. Here, manual leveling is done with 3 points.
  • If the height measurements are not relevant (templates), manual leveling can be done by measuring 3 points of the floor.
  • Alignment inside a building on existing markers.
  • This type of levelling can be done with the help of a cross-line laser if specific points must be referenced.

To use Manual Levelling:

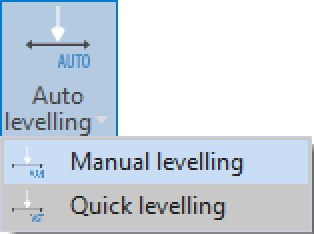

  1. Select the ‘Manual Levelling’ button from the Drop-down under ‘Auto-Levelling’.
    Manual Leveling Button

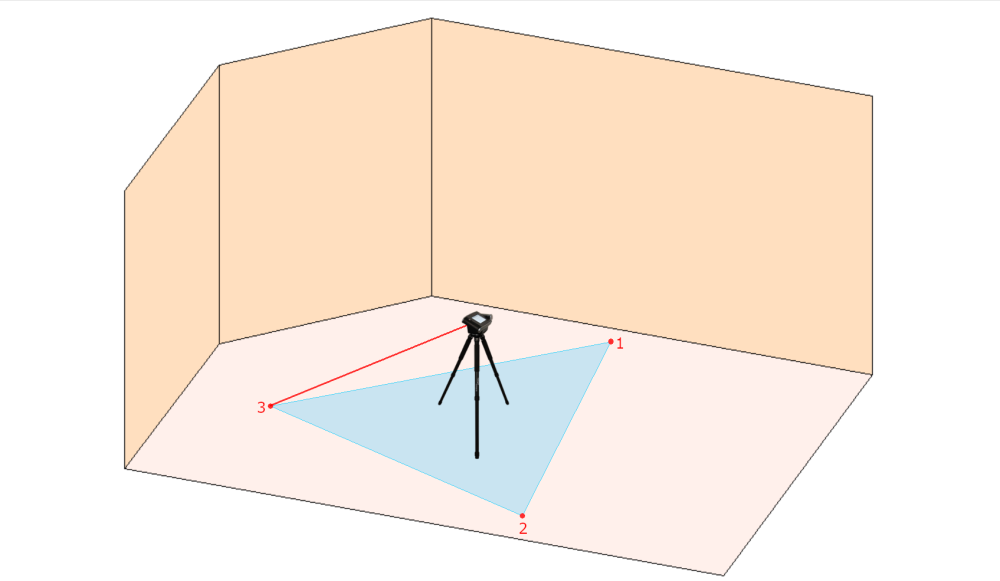

  1. Following the command prompt, measure 3 horizontal points forming a level triangle.

Make sure that the measured points are forming a big triangle, for example, a point on the left wall, a point on the front wall and a point on the right wall. Or, measure 3 points on the floor in a large triangle.

If you measure 3 points on the same wall, these 3 points form a line and not a triangle, and cannot be used to set level.
