The font, size, color, and emphasis of text can be set using the ‘Text Style’ window.
Different styles can be set and used as required in drawings, to allow for easy annotation.

Changing a Text Style will change all elements in your current project using this text style.

Text Style window

To change the size of the text,

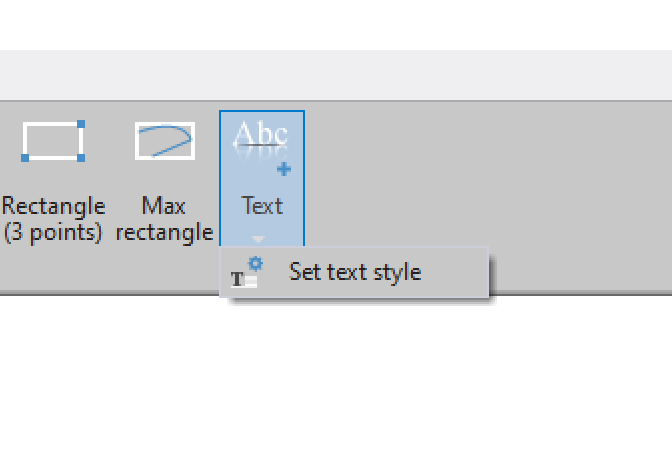

  1. Go to ‘Set Text Style’ on the ‘Draw’ ribbon
    Set Text style button
  1. Select the text style to be modified from the list. NOTE: STANDARD is the default Text and Label format, while Autodim is the default dimension format.
