Creating a PDF

FlexiCAD and Flexijet Stone PDF tool creates a custom PDF version of the measurements and data created.

• The content of this PDF can be customized to your specifications.
• To simply Print/plot to PDF the contents of a folder, see Print/Plot below.
• For versions 3.1.2.0 and earlier, please see PDF Tool – 3.1 and earlier below.

PDF Snapshot:

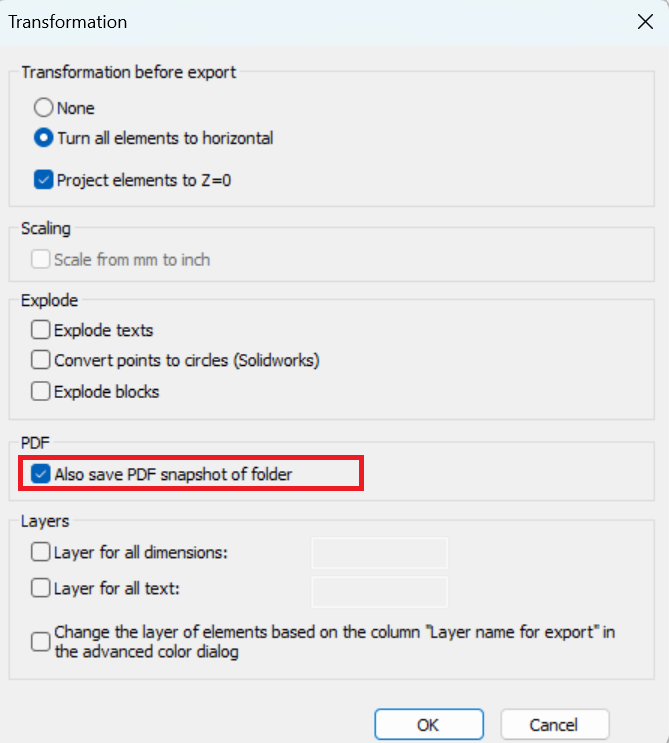

Additionally in version 3.2.0.0 and later, a PDF Snapshot of an individual folder can be created during the export of that folder. Simply select the ‘Also save PDF snapshot of Folder’ option on the ‘Transformations’ window.

PDF Tool

• To export a PDF, click on the PDF logo at the top of the FlexiCAD window to open the PDF export dialog. You can also access this function in the File menu as ‘Create PDF’.


• The PDF Job Data window will now appear.

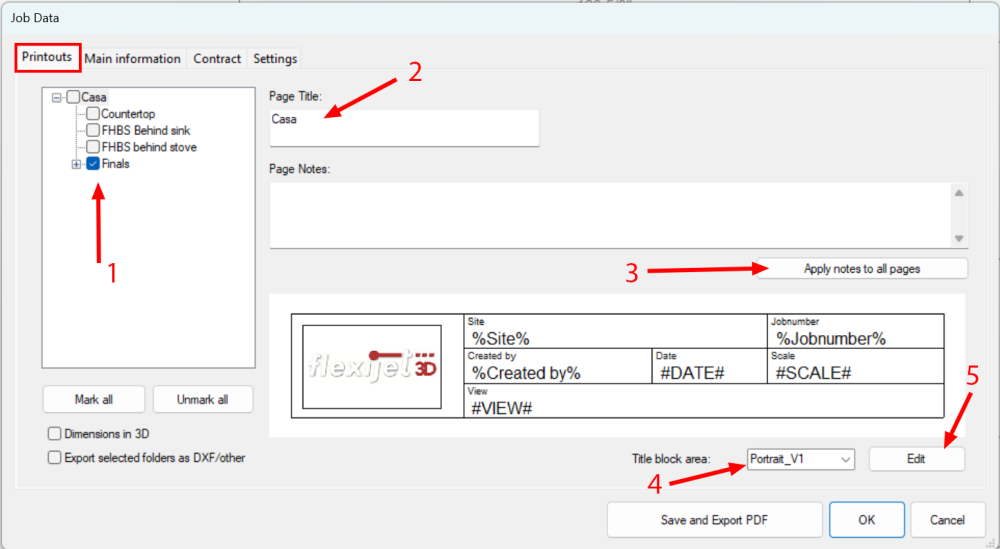

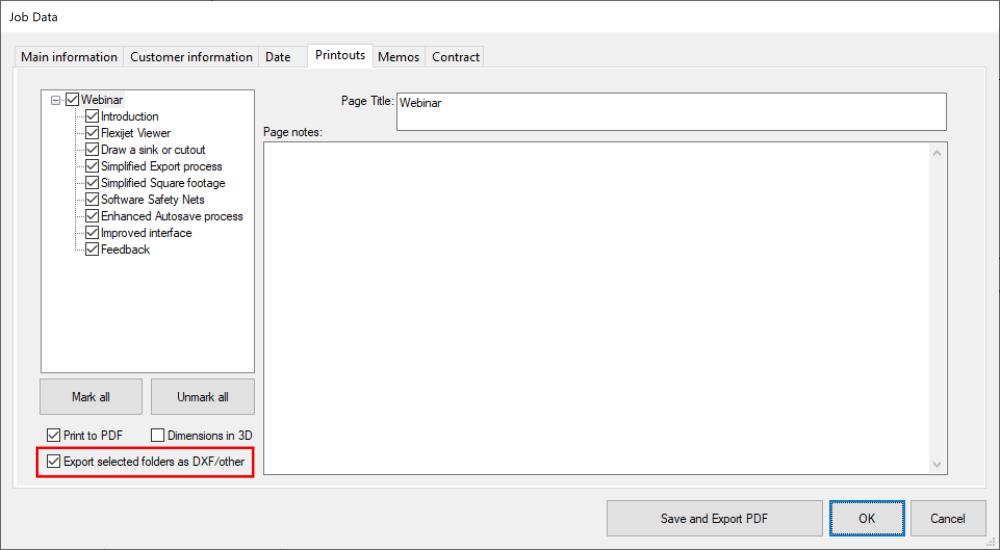

• On the Printouts tab
  1. Select the checkboxes of the folders you wish to include in the PDF output.
  2. Add a Title to the page
  3. You may add additional notes to each individual folder or apply the current notes to all pages using the ‘Apply notes to all pages’ button.
  4. Select the appropriate title block

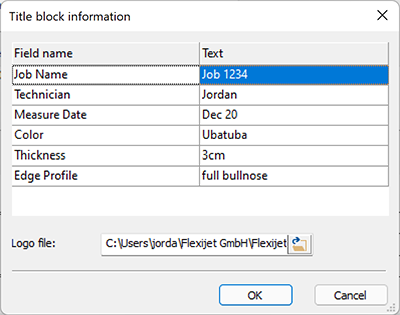

  5. Click ‘Edit’ to fill the user-defined fields.

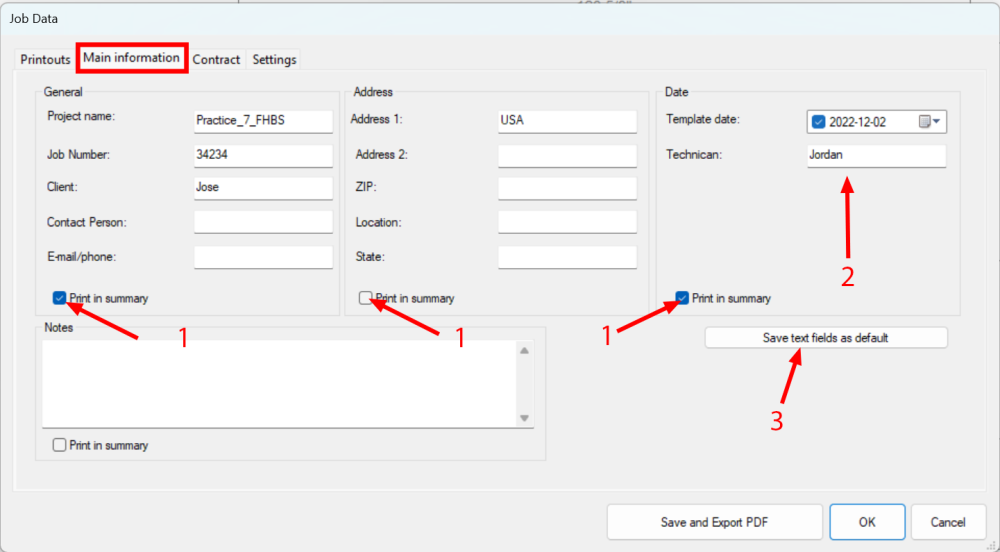

• From the Main Information tab,
  1. You may enter the job and customer’s information, including address, etc. Select ‘Print in summary’ to include this information in the summary page.
  2. Add the template date and the technician who templated this project.
  3. Note that these fields can be included in the customizable titleblocks using the appropriate fields.

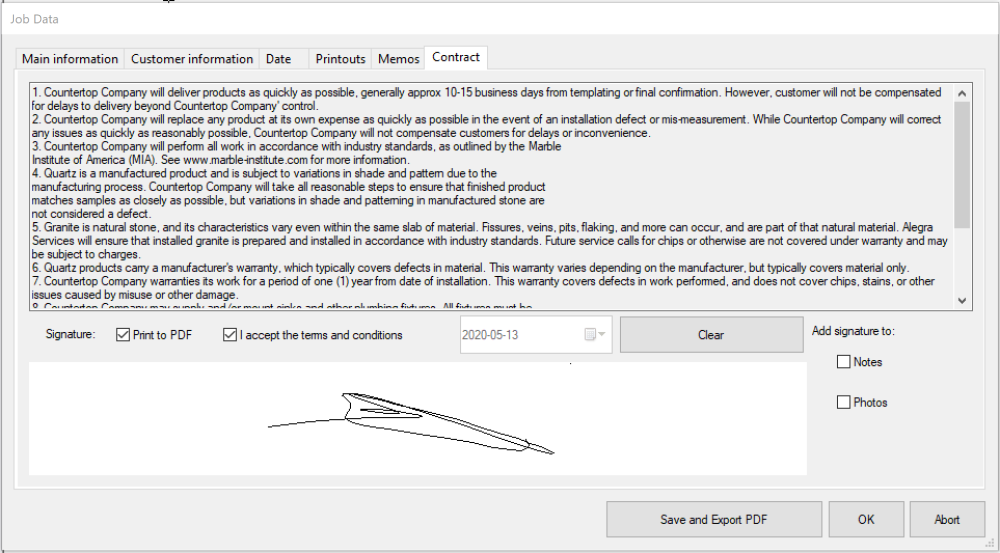

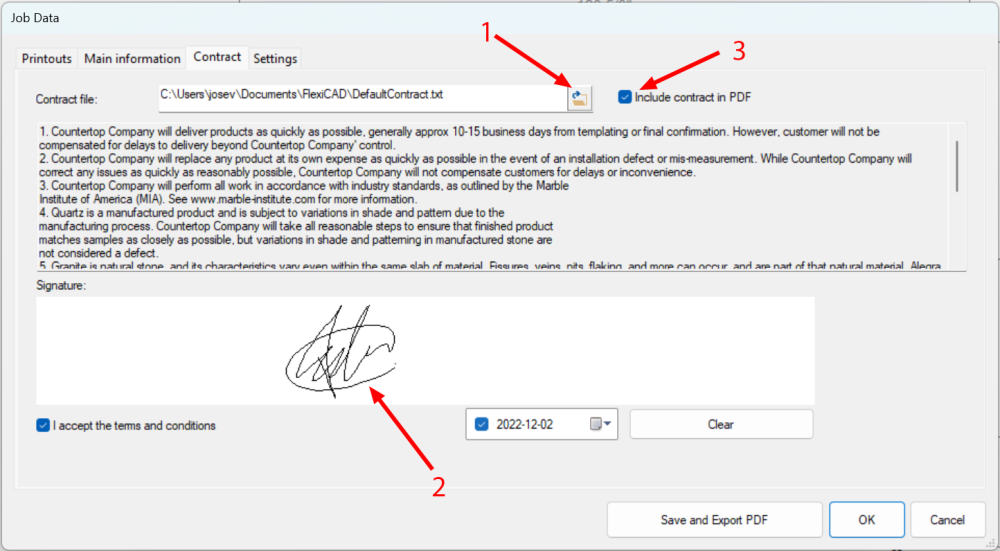

• On the Contract tab
  1. You may review your contract term, you can also insert your own contract file if you have one.
  2. Collect a signature.
  3. You may select if you wish to print your signature and contract on the PDF document output.


*Note: the contract file to be attached must be a .txt file saved with UTF-16 LE encoding. You may Download this default contract file as a template for your contract.

!Note: this is provided as an example only, and does not constitute legal advice. Use and edit this example file at your own discretion.

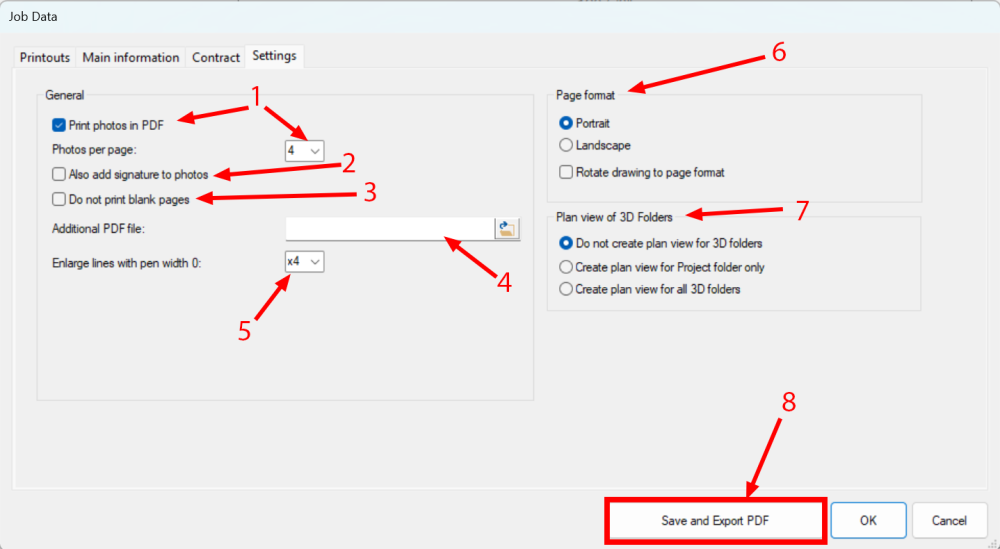

• The Settings tab
  1. Allows you to select some options. Like including jobsite/webcam pictures in the PDF output, you can select up to 4 pictures per page.
  2. Whether to add signature to photos.
  3. Optionally omit blank pages form the PDF output.
  4. Add an additional PDF file to the resulting pdf (such as a checklist).
  5. Enlarge Lines with pen width up to 4 times.
  6. Select the format (Portrait or Landscape) of the resulting PDF. Optionally, select whether to auto-rotate the pages to best match the page format that is selected.
  7. You can select whether to create a plan view for all 3D folders, for project folder only or do not create plan view for 3D folders.
  8. Finally, you can save it and Export the PDF.


• When clicking in ‘Save and Export PDF’ to create your PDF. If the ‘Export selected folders as DXF/other’ option was also selected, you will be prompted to choose the file format for your DXF export, and any applicable transformations.

PDF titleblocks can be customized! Click here to learn about customize the PDF Titleblock

Print/Plot

The Print/plot function will plot the selected area of the canvas

1. With the desired folder and elements active and visible, Select ‘Print/Plot’ from the ‘File’ menu.

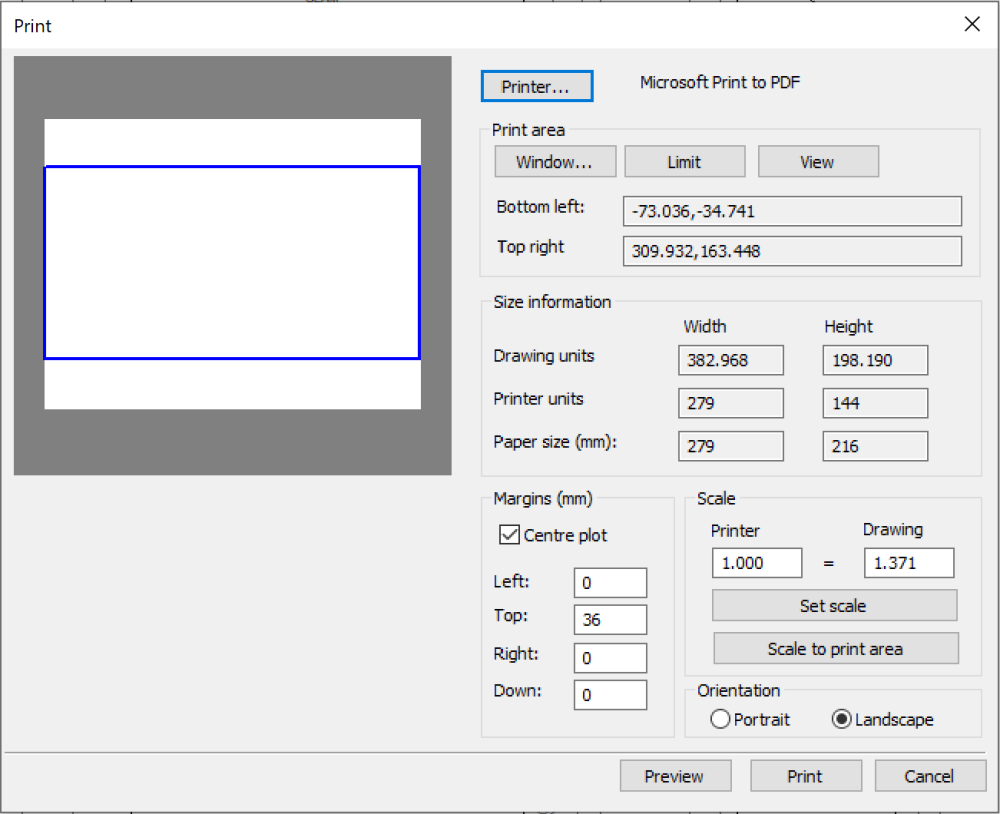

2. The Print/Plot Dialog window will now appear.

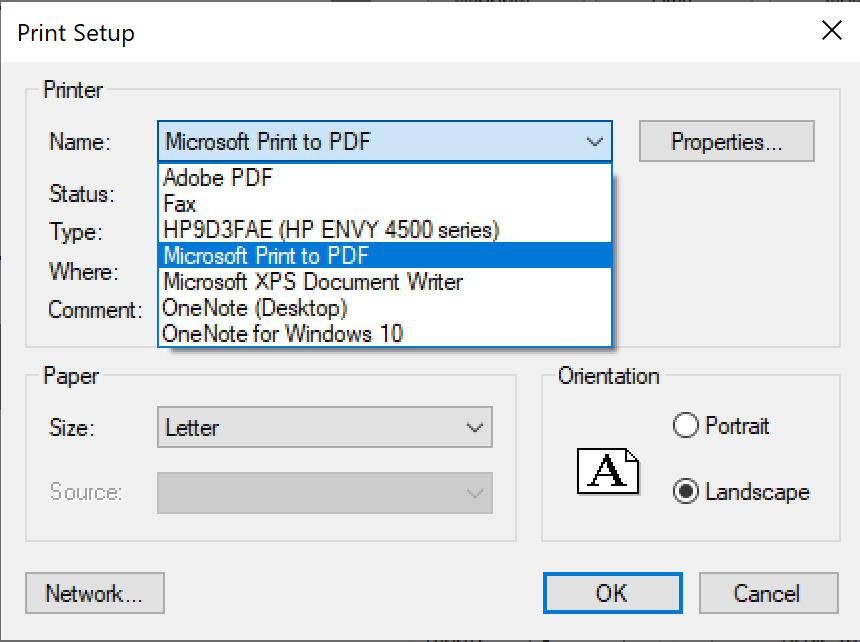

3. To print to PDF, select ‘Microsoft Print to PDF’. To print directly to printer, select the appropriate printer. As needed, adjust and set print parameters in the ‘Properties’ window, including paper size.

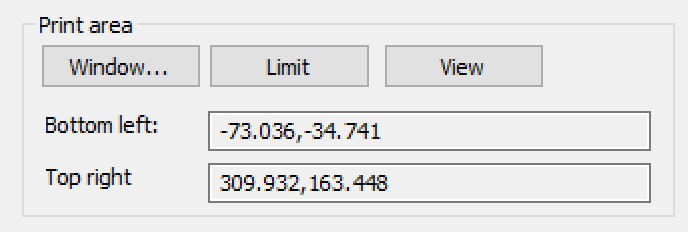

4. By default, all elements on the active canvas will be selected. To select a particular window, select ‘Window’ and draw a box around the desired elements.

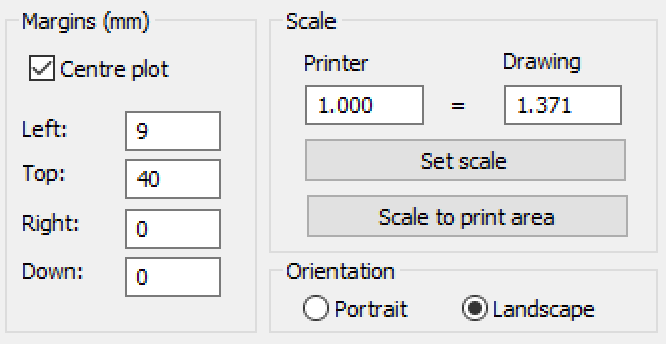

5. Set the margins and scale as required. Choose between Landscape and Portrait mode.

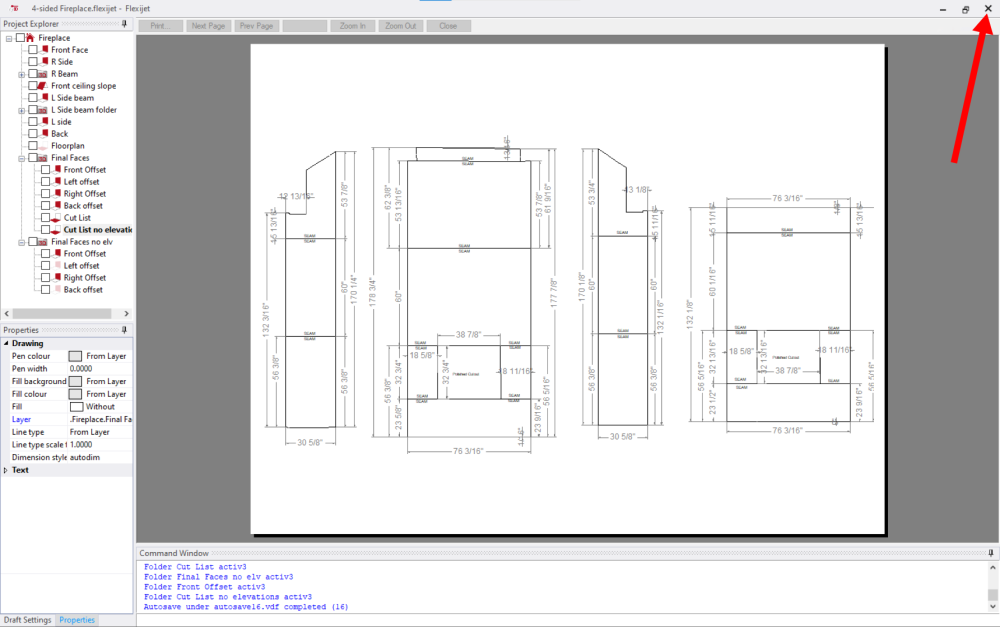

6. To see a preview, select ‘Preview’. The preview of the printed area will appear. Press ‘X’ to exit the Print Preview and return to the print dialog

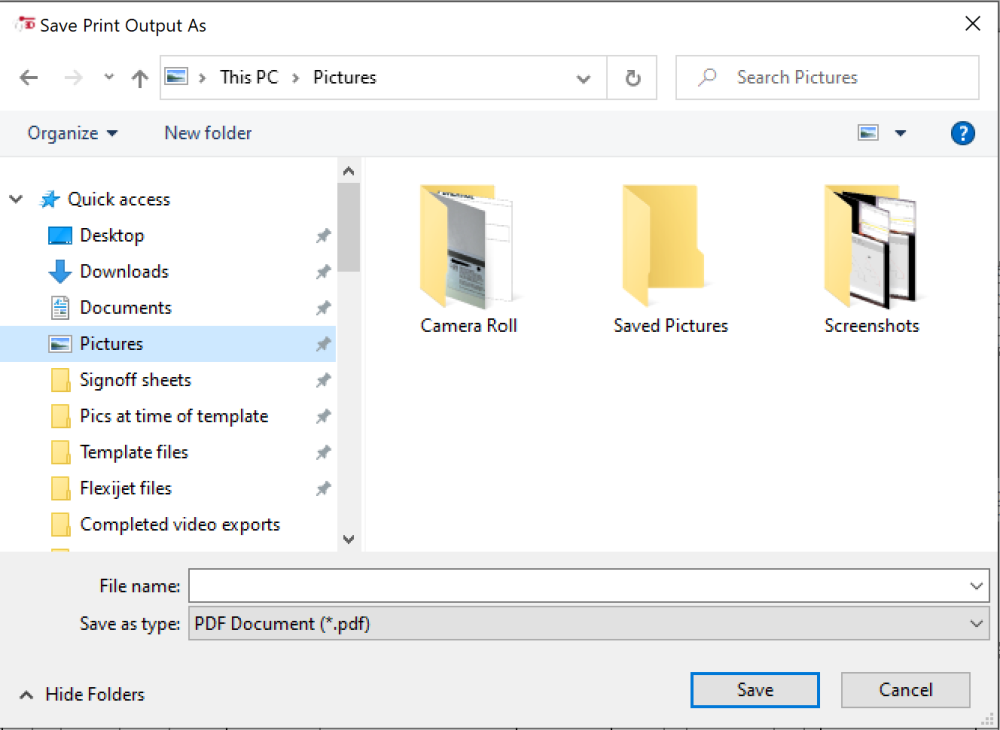

7. When ready, click ‘Print’ to print to the selected printer. If printing to PDF, a file dialog window will appear to name and choose a location for your PDF file.


PDF Tool (versions 3.1.1.0 and earlier)

1. To export a PDF, click on the PDF logo at the top of the FlexiCAD window to open the PDF export dialog. You can also access this function in the File menu as ‘Create PDF’.

2. The PDF Job Data window will now appear. On the Main Information tab, you may enter job name, number, Name of company, Name of the contact person, phone number. You may also select a logo to be added to your PDF, a contract file, and an additional PDF file to be added at the end of the PDF export. You may also select whether to include Site Photos (taken with webcam or Flexijet Smart Remote App) in your PDF export.


*Note: the contract file to be attached must be a .txt file saved with UTF-16 LE encoding. You may Download this default contract file as a template for your contract. Note this is provided as an example only, and is not provided as a legal template.

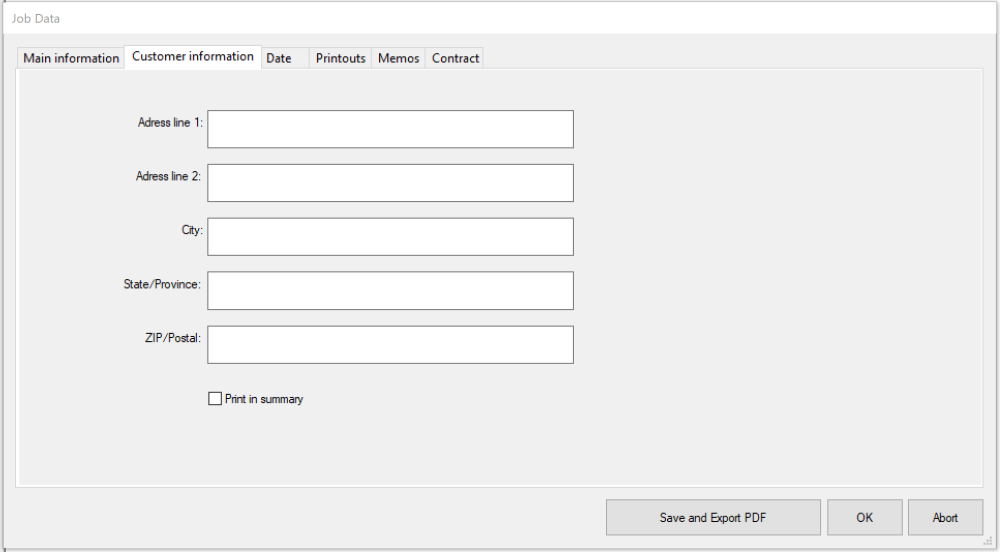

3. From the ‘Customer Information’ tab, you may enter the customer’s address, including city, State/province, and Zip/Postal code. Select ‘Print in summary’ to include this information in the summary page.

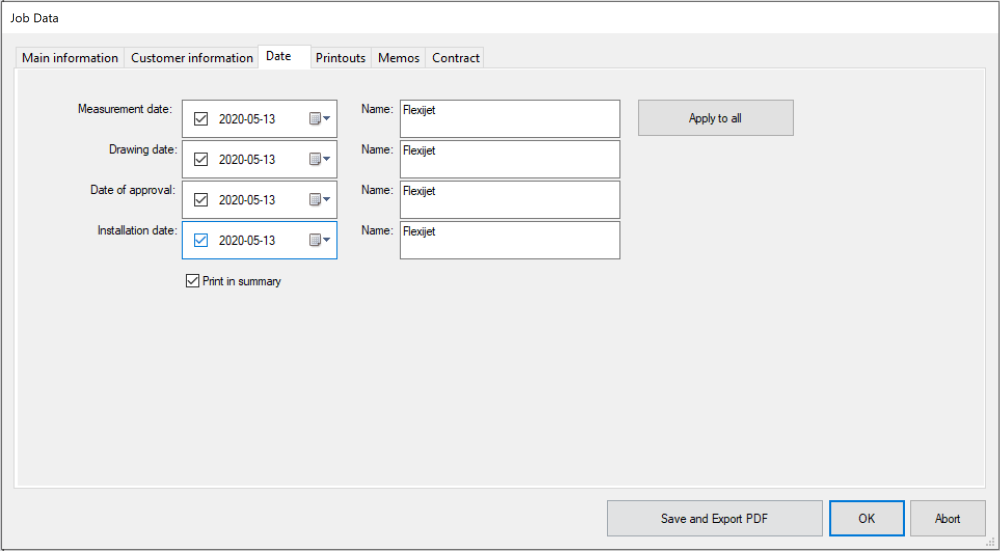

4. From the ‘Date’ tab, select the measurement date and name of technician.


5. From the ‘Printouts’ tab, check the checkboxes of the folders you wish to print in the PDF output. Note: ensure the ‘Print to PDF’ box is selected to ensure these views print on the PDF.
   As well, you may add additional notes to each individual folder.

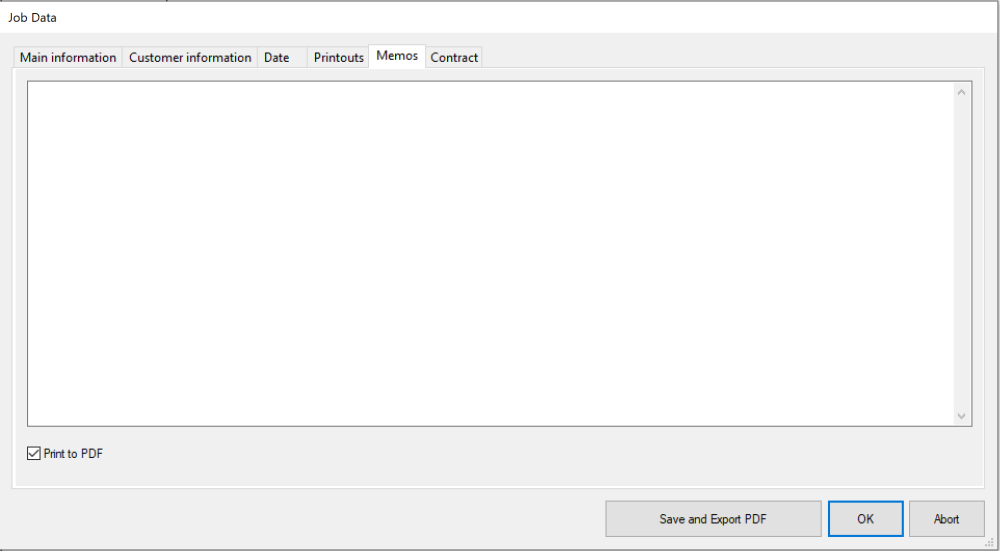

6. From the ‘Memos’ tab, you may add additional notes to the PDF.


7. On the ‘Contract’ tab, you may review your contract terms, and collect a signature. You may select if you wish to print your signature on the PDF document output


8. Click on ‘Save and Export PDF’ to create your PDF. If the ‘Export selected folders as DXF/other’ option was also selected, you will be prompted to choose the file format for your DXF export, and any applicable transformations.
