The ‘Single measurement’ button will trigger a measurement.
Single measurement button in FlexiCAD

By activating the laser distance measurement device, the distance between the laser distance measurement device and the focused point is determined.

The submenu of ‘Single measurement’ offers more commands.

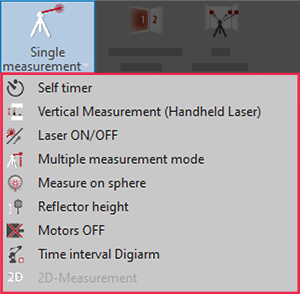

Drop-down Submenu of 'Single Measurement' in FlexiCAD

  • Self timer: Sets a time after which the laser distance measurement device starts a measurement.
  • Vertical Measurement
  • Laser On/Off: The laser point of the measuring device is switched on or off.
  • Multiple measurement mode: Changes the number of distance measurements per measurement point.
  • Measure on sphere: Prompt to enter a radius of a sphere. Helps when changing the location of a long narrow corridor.
  • Reflector Height: Allows to define the height of a reflector typically used in surveying. After entering the reflector height, all measured z-values are to the input value corrected
  • Motors OFF: Turns the motor of the turning-rotating unit off
  • Time interval Digiarm: Defines the time interval between measurement capture on the Digiarm. Not used with Flexijet laser measurement devices.
  • 2D Measurement: While working in a 3D model space, the 2D measurement mode flattens the Z-coordinates of 3D measurements. Not used in 2D planes.
