NEW in Flexijet Stone version!
Show Corners diagram with icon

The show Corners function uses Flexijet 3D to project the corners from your drawing automatically.

To show corners:

  • From the Flexijet tab, click on the “Show Corners” function.

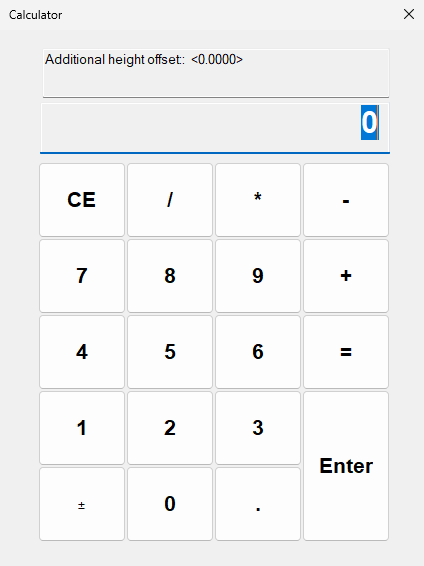

  • A window will prompt, asking you for an optional height offset.
  • Now, click or tap on the corner of your drawing where you would like Flexijet to point.

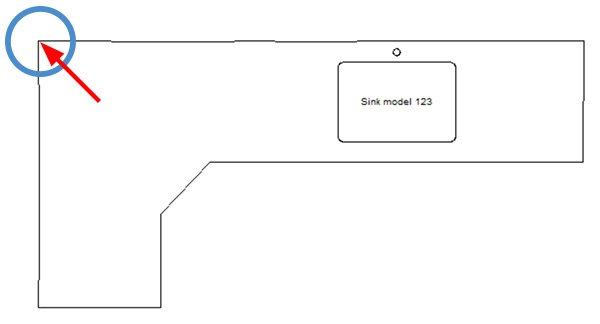

    Show corners diagram of countertop with corner indicated
  • Flexijet will move to project that point, and once it is there, it will take a photo.

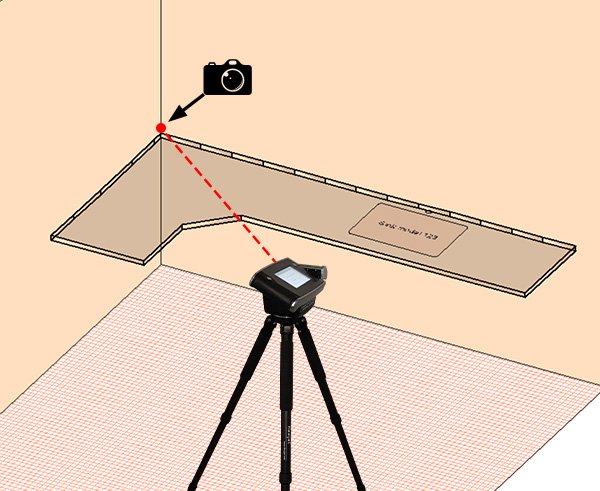

    Diagram showing Flexijet aiming at a corner
  • Now, you can select another corner to be projected.
