Flexijet 3D Next-Generation’s Touch-screen can be used to control Flexijet Stone.

Flexijet Basic Functions

Auto-Levelling, Align to Object, Repositioning, and more can be accessed in the ‘Basic Functions’ section of the Flexijet’s touchscreen.

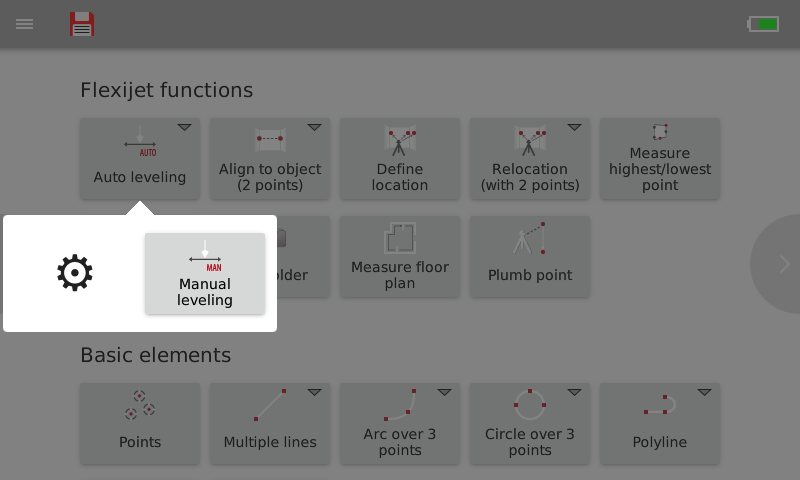

Note that some functions have drop-down options available to access additional options or change settings.

To access these functions, you have to long press (3 sec) on the function that you want.
A drop-down menu will appear and will give you access to the different options that you have on that function.

Creating and selecting Folders on Flexijet 3D

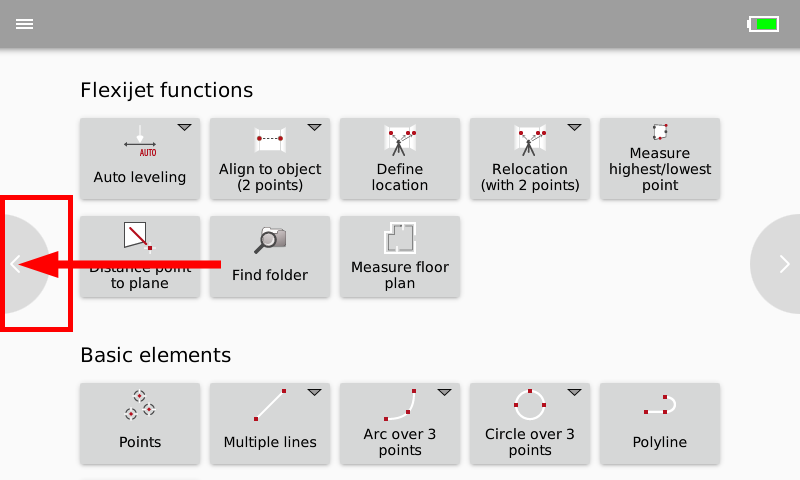

Folders can be selected directly from the screen of Flexijet 3D. To access this menu, click on the left arrow, or swipe from left to right to open the ‘Project’ screen on the Flexijet.
Flexijet screen with arrow showing left button

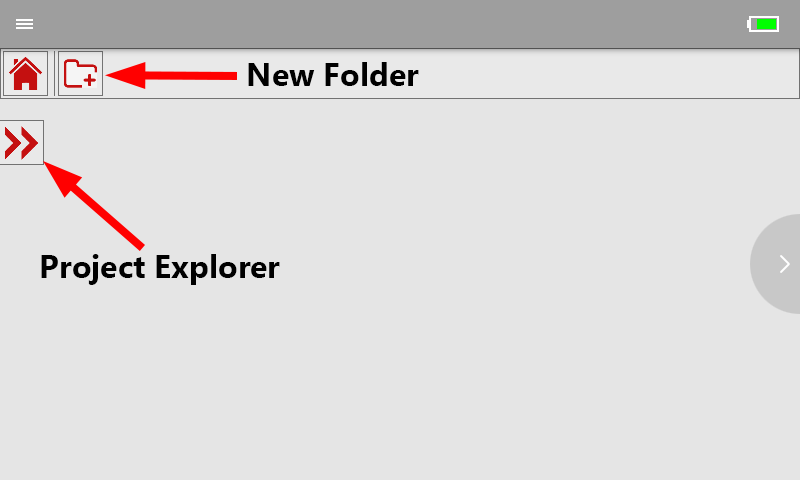

This will show the ‘Project’ screen on the Flexijet 3D. If there are no folders or measured elements, this area will appear empty. There are buttons to create new folders, and to show the ‘Project explorer’ section on the left of the screen.
Flexijet screen project screen

If no root folder exists, you can create a root folder from the Flexijet using the ‘New Folder’ buttton screen. A keyboard will appear to type the name.
Flexijet screen new root folder dialog

Using the same ‘New Folder’ button, you can then create different types of folders. Name the folder, and select the appropriate type from the screen, and follow the prompts to set the plane.
Flexijet screen with new folder dialog with plane types highlighted.

To select a folder, simply show the ‘Project Explorer’ area and select a folder.
Flexijet screen select folders

Reminder: You can also select a folder automatically by selecting ‘Find Folder’ and measuring a point on that surface. Flexijet Stone/FlexiCAD will automatically select the appropriate folder.
Flexijet screen - Find Folder button
