Auto-fillet

Flexijet’s Auto-Fillet feature allows you to automatically connect the endpoints when using the Multiple Lines function.

This can connect the end-points into an open element or a closed element (first point of first line and last point of last line also connected to close a shape).

*Auto-Fillet can be accessed from either the screen of the Flexijet, or within Flexijet Stone/FlexiCAD

To access Auto-Fillet from Flexijet Stone/FlexiCAD:

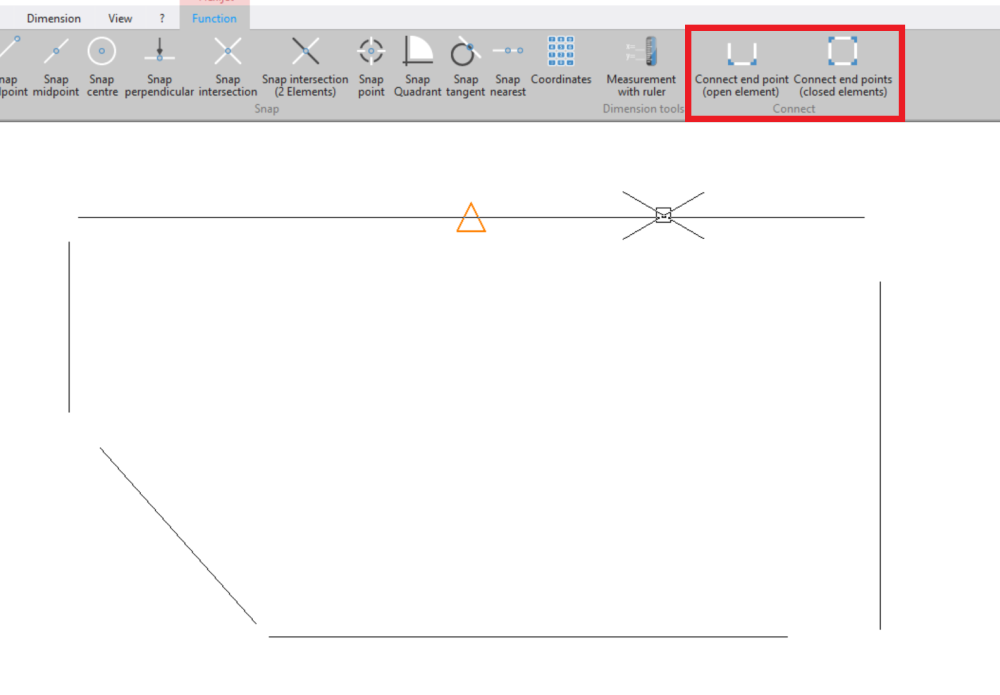

• Select the desired button for open or closed element on the top right corner of Flexijet Stone/FlexiCAD.

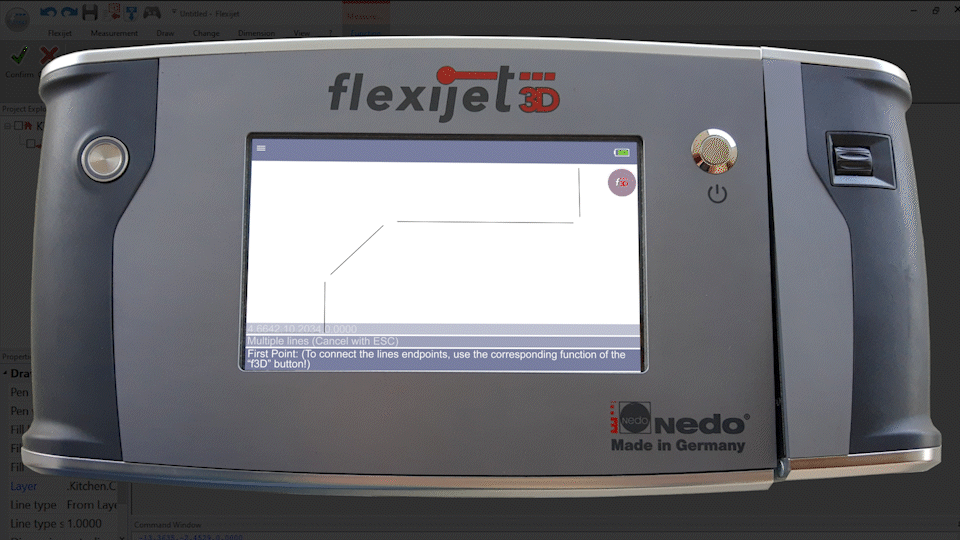

To access Auto-Fillet from the Flexijet’s touch screen:

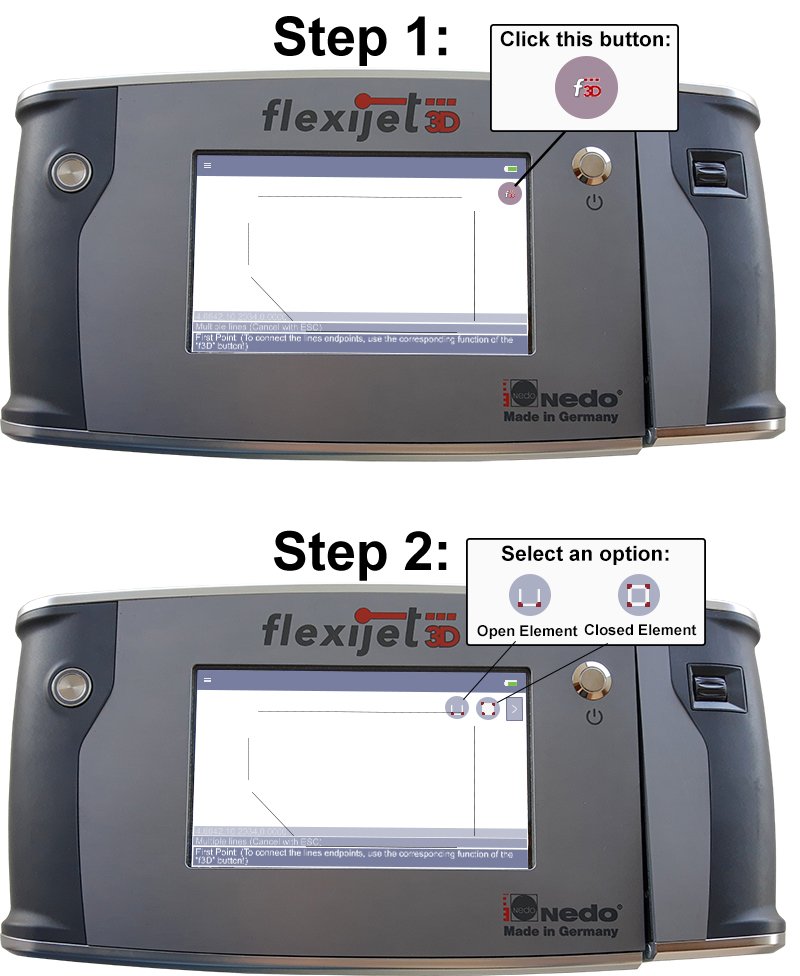

• Press the glowing F3D button and then select the desired button for open or closed element.


To connect lines after exiting the ‘Multiple lines’ function:

• Press the ‘Connect last lines’ button, located on the ‘Change’ tab. Follow the prompts to choose between open or closed element.
  Hint: This function can also be assigned to a button on the Xbox controller.


• Alternatively, use the Connect function to fillet the corners together.

*Note: The direction of measurement does not affect the accuracy of measurements, but lines to be connected using Auto-fillet must be measured in the same direction.

*Note: Auto-fillet is possible with the Multiple lines function. For elements drawn with other functions, use the ‘Connect’ tool in the quick-access.
