12.2.2.5.4 Event

Web Modelers can assign the BPMN properties while working on Graph Edit Mode directly to the shapes.

To Assign BPMN Properties to an Event, please follow the instructions.

*The same instructions apply to a Start or End event

*Ensure you are given the permission to be a Web Modeler, the displayed content is set to Show Latest, and your editing tool is the Web.

1. Navigate to Full Screen Edit Mode, after clicking on Edit Button

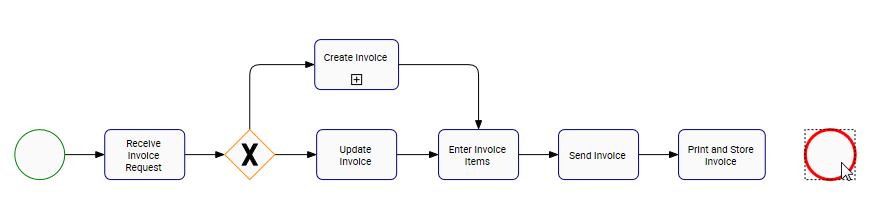

2. Navigate to an Event shape

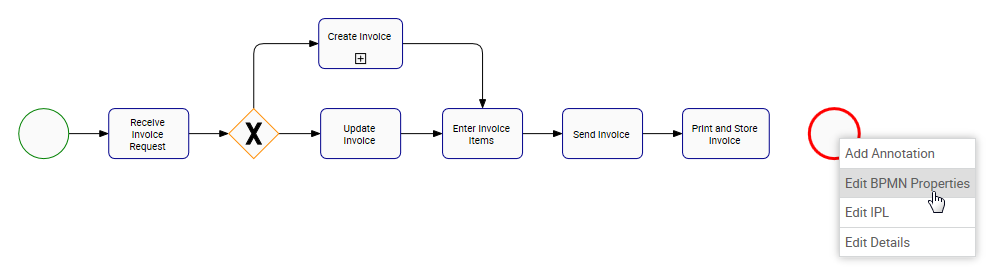

3. Right-click on the Event shape. A drop-down menu will be generate

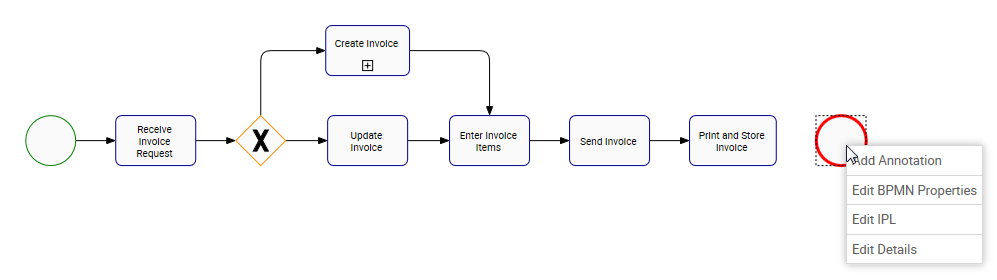

4. Choose the “Edit BPMN Properties” box

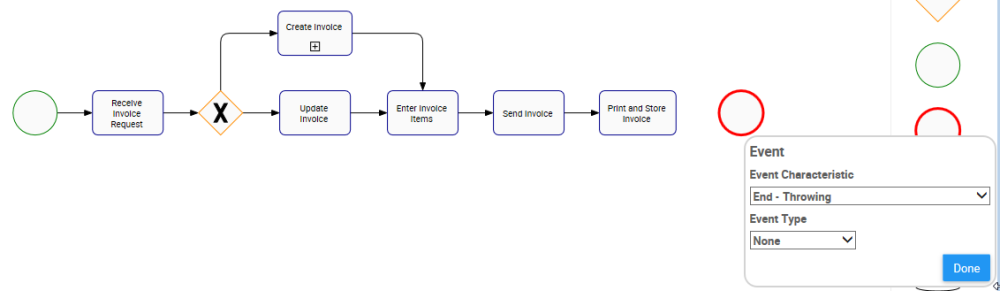

5. A pop-up will be generated allowing you to choose the BPMN Properties for the event

Event Characteristic
i) Navigate to the “Event Characteristic” box

ii) A drop-down list will be generated

iii) Choose the Event Characteristic

*If there is a source or target transition from or to the Event shape, you will not be able to modify the Event Characteristic.

Event Type
i) Navigate to the “Event Type” box

ii) A drop-down list will be generated

*Different event types are available depending on the event characteristic selected

iii) Choose the Event Type

6. After assigning the BPMN properties for the Event, click on the icon to close the pop-up
