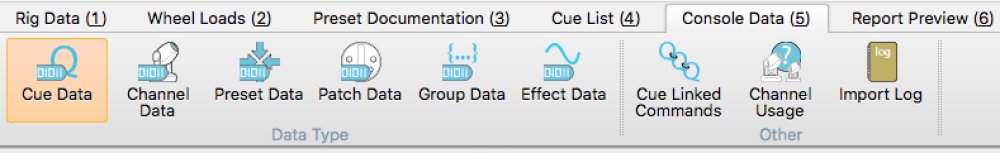

Console Data Toolbar

The buttons on the Console Data toolbar provide access to the different data views. The views are:

  • Cue Data
  • Channel Data
  • Preset Data
  • Patch Data
  • Cue Linked Commands (grandMA only)
  • Channel Usage

Additionally, the import log file generated when console data is imported, can be viewed.

Before console data can be inspected, it must first be imported via the menu File->Import Console Data. Refer to the chapter Importing Console Data for more information. Moving Light Assistant can import data exported from the grandMA (Series 1), grandMA2, Whole Hog 2, Hog 4, EOS, and PRG Vx76 lighting consoles.

The exact information which can be imported and inspected, and the layout of the spreadsheets, will vary depending on the console. The spreadsheet column headings will also vary to more closely reflect the nomenclature of the console.

It is not possible to edit any of the displayed data. The columns displayed are imported from the console data,and cannot be changed. The column order is locked, but their widths can be changed by dragging the boundaries of the column headings.
