Report Generator Interface

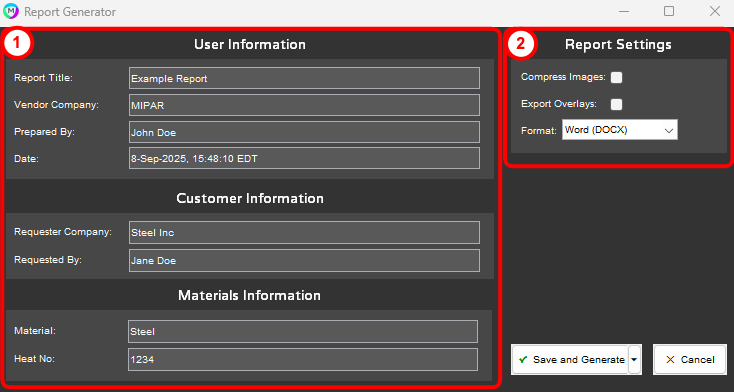

1. User, Customer, and Materials Information

The information entered into these fields will be entered into the header of the report.

2. Report Settings

• Compress Images: Saves images as JPEG to reduce the final report size. Images pulled from a compressed image report are lossy and are no longer original resolution or quality.
• Format: Choose between Word (DOCX) or PDF format. Both require Microsoft Word on your system.

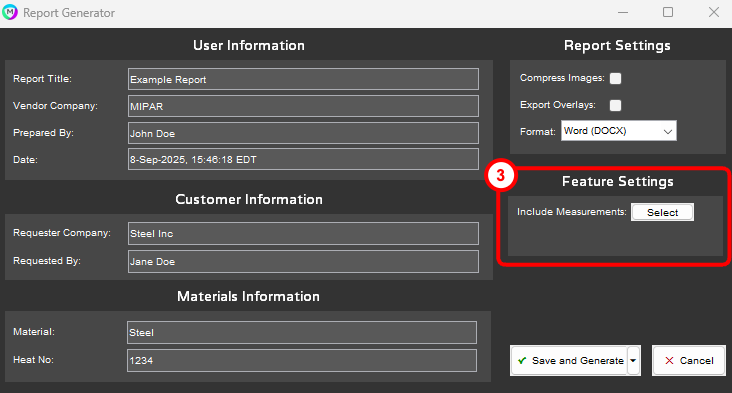

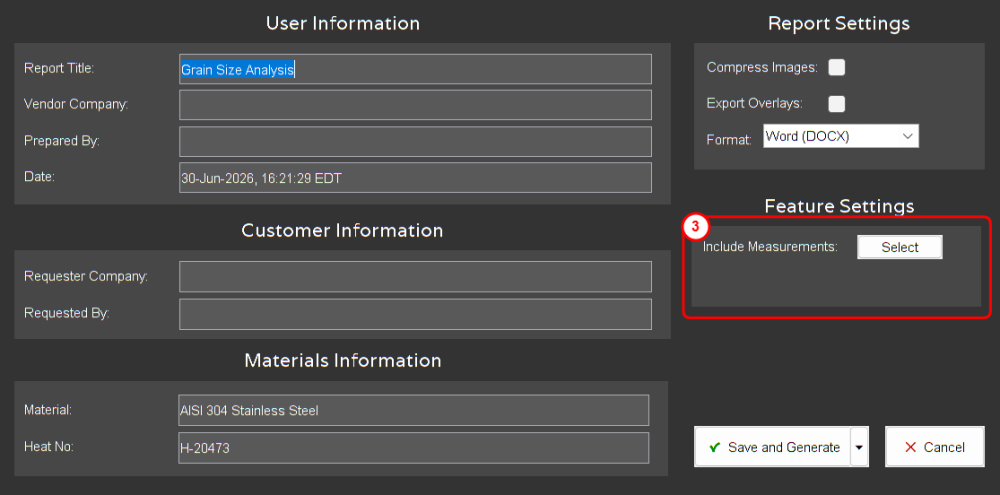

3. Feature Settings  (available when launched from Color By Measure)

• Include Measurements: Select what content from which feature measurements to include in either the Single Image Feature or Batch Image Process report.

Clicking Select shows the below table:

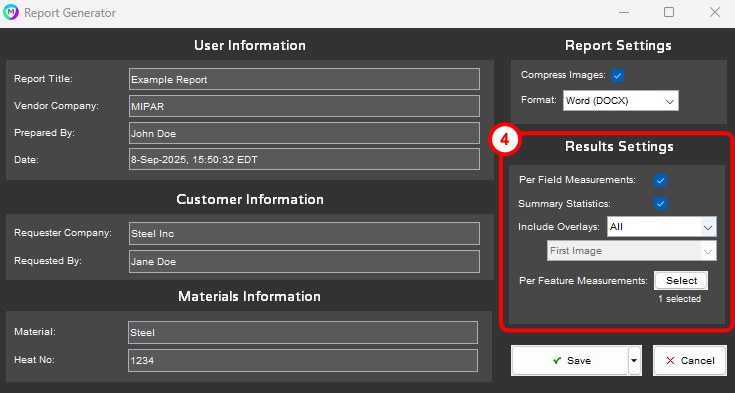

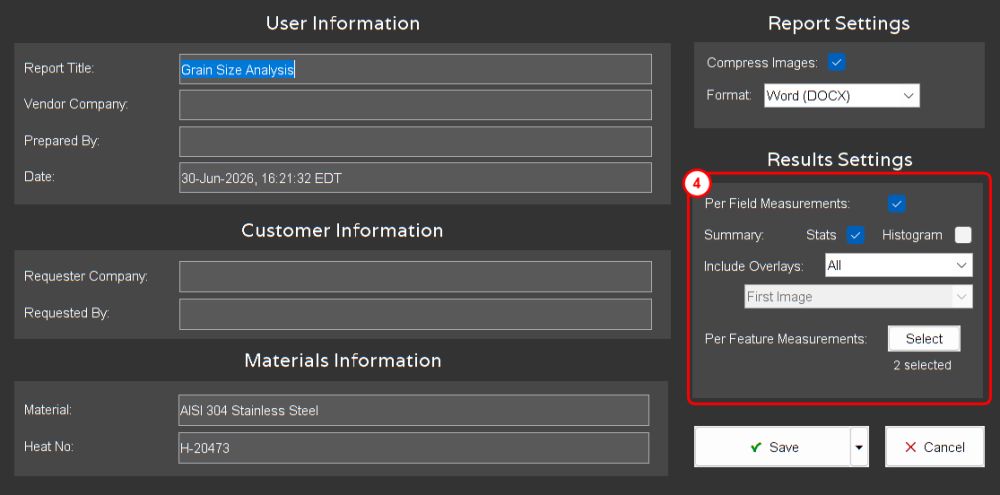

4. Results Settings  (available when launched from Batch Processor)

• Per Field Measurements: Exports a table of measurements per image to the report.
• Summary Statistics: Compiles summary statistics for all measurements across the image set in the batch.
• Include Overlays: for Batch reports select which images to include in the report. Representative to select an image, None to add none, All to add all images.
• Representative Image: Select an image from the batch to include in the report.
• Per Feature Measurements: Choose which per feature measurements to include in the Batch Image Process report. The measurement content (Table, Overlay, Histogram) is determined by the configuration done in the Report Generator interface launched from Color By Measure as shown in #3 above. The formatting of this content is determined by the configuration done within the Color By Measure window itself.
