Combine Channels

Using Combine Channels

The “Combine Channels” option allows the processing of images where individual channels (e.g. red, blue, and green) are saved in separate files. This option will combine these files into a single multi-channel image for processing with a MIPAR recipe. They must be listed consecutively, that is, collated by image. The original images must all be single-channel.

1. Add images to the batch process that would be combined to a multichannel image

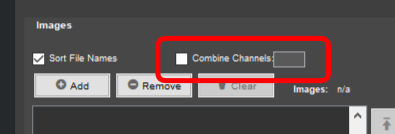

2. Check ‘Combine Channels’
3. Specify the number of channels that will be stacked. For example, if every 4 images should be combined to a single multichannel image, enter the values 4. The images as listed in the Images panel must follow the scheme: 1st image is the 1st channel, 2nd image is the 2nd channel, 3rd image is the 3rd channel and so on.

Tutorial Video
