Creating an IR-Based Driver

This solution shows how to create an IR device for K-Touch by learning the commands from an IR remote. IR learning is done with a Kramer FC-26.
Note: IR learning was added to the FC-26 with firmware version 1.11.24319. Upgrade your FC-26 if necessary.

  1. Download an XML Editor
  • All K-Touch commands are written in XML format. While not 100% needed, a true XML editor allows you to navigate the document more easily.
  • If you do not already have an XML editor, download a free one like Atom (www.atom.io).
  1. Download the IR Template.xml
  • Attached to this knowledge base article is a file called “IR Template.xml”.
  • Download the file.
  1. Open the IR Template in your XML Editor

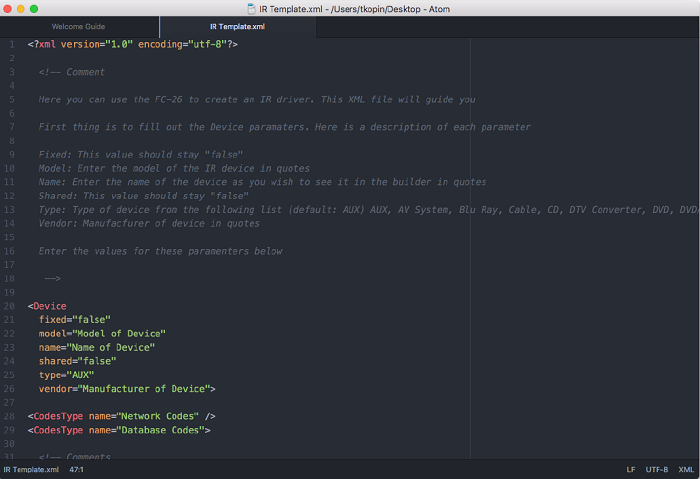

  • Open Atom (or other XML editor) and open the IR Template.xml file.
  1. Enter Device Properties

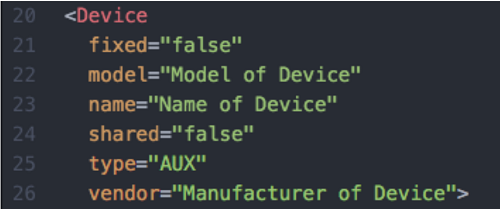

  • The first tag is ‘device’. It contains six properties.
  • Replace the values with ones for this IR device.

Fixed: This value is “false”
Model: Enter the model of the IR device in quotes.
Name: Enter the name of the device as you wish to see it in the builder in quotes.
Shared: This value is “false”.
Type: Type of device from the following list:
AUX (default), AV System, Blu Ray, Cable, CD, DTV Converter, DVD, DVD/VCR Combo, Game, Home Theater System, iPod, Laser Disc, Lighting, Media Manager, Multizone System, Projector, Receiver/Preamp, Satellite, Set Top Box, Shading, Soundbar, Subwoofer, Switcher, Tuner, Thermostat, TV, TV/DVD Combo, TV/DVD/VCR Combo, TV/VCR Combo, VCR, Video Processor, Unknown Type.
Vendor: Manufacturer of device in quotes.

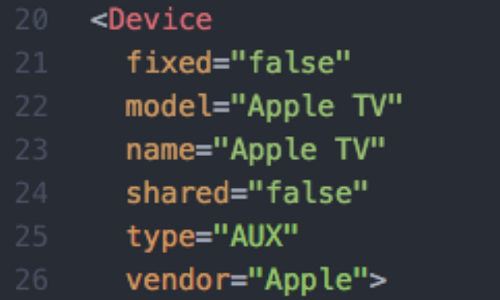

  • The following is an example for the Apple TV device built in this tutorial.
  • Now you are ready to learn and enter the codes into the device
  1. Go to the FC-26 Web Page
  • Connect your PC and the FC-26 to the same network and navigate to the FC-26 Web page.

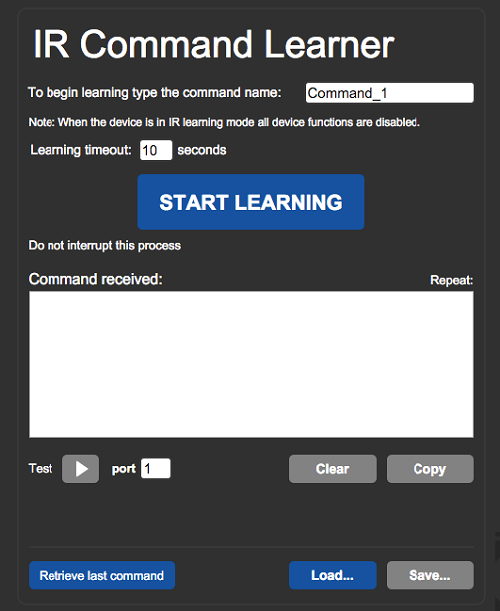

  • Click on the IR Command Learner tab.
  1. Learn a Command
  • Click ‘Start Learning’ in the FC-26 Web page.
  • Holding the IR remote that you are using, point it at the IR In on the front of the FC-26 and press one of the buttons you wish to learn.
    • Note: Be sure that when you are learning IR commands you are in an environment without any other IR interferance (flourescent lights, other IR remotes, etc.)
    • Hold the IR remote as close as possible to the IR receiver “eye”.

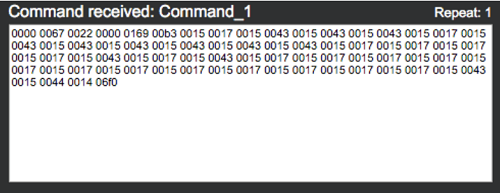

  • The command appears in the command received box.
  1. Add Command to XML Device#
  • Use the copy button in the FC-26 Web page to copy the IR command.
  • Switch back to your XML editor.

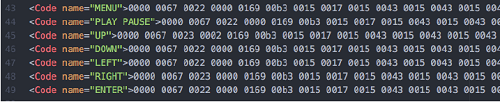

  • Follow the convention of the example codes for your new code.
  • Type the name of the command between the quotes after Code name= (in this case, the menu command).
  • Enter the command after the > and before the .
  1. Repeat for All Needed Commands
  • Repeat steps 6 and 7 for all the commands you need for this one device.
  • Delete the example codes.
  1. Save As
  • The XML device is finished. Save the file on your computer with a .xml extension.
  1. Upload your Device to the K-Touch Builder

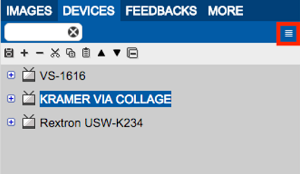

  • Go to the device tab and click on the menu option.

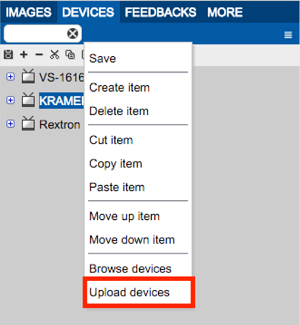

  • Choose Upload devices.

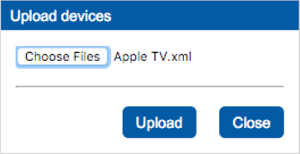

  • Choose the file and click Upload.

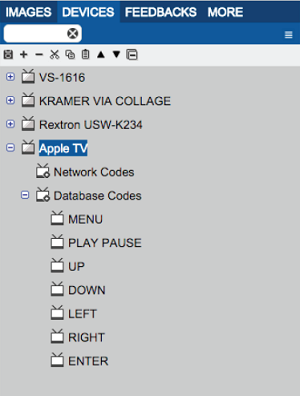

  • View the new device in the builder with all the commands.
  1. Share your IR Device with Kramer (optional)
  • We are always trying to expand our driver database. To add your driver to our global database of devices, email the XML file to ktouch@kramerus.com.
  • We appreciate your help.
