Create a Global Macro

This article shows two methods of creating a global macro.

  1. Where global macros are located

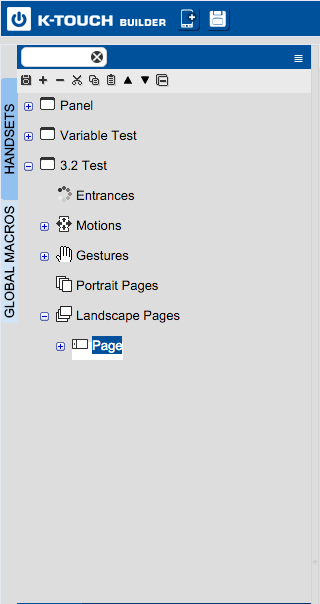

  • In the upper left side of your K-Touch builder window, notice 2 tabs. Handsets and Global Macros.

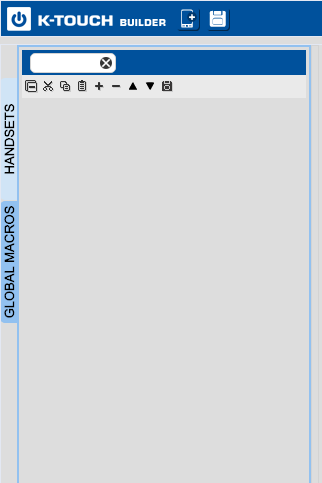

  • Handsets gives you the familiar panels and pages tree view but if you click global macros, the tree changes to a list of global macros
  1. Create a global macro

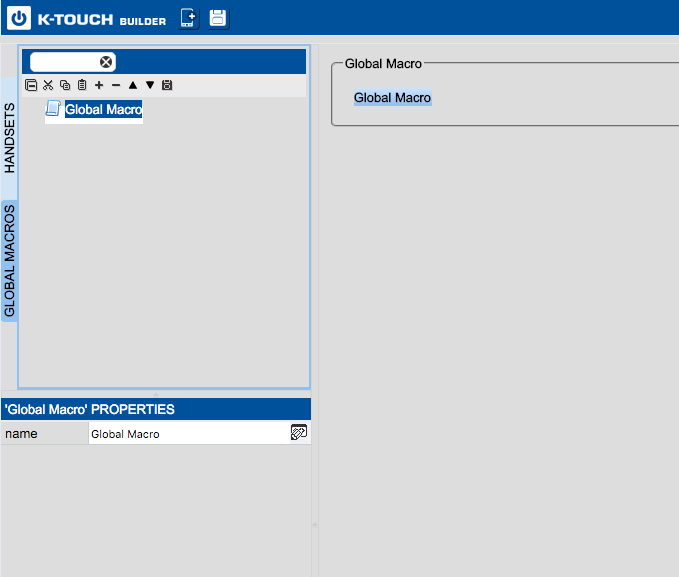

  • One way to create a global macro is to enter the global macro tab and click the + button. This creates a new global macro

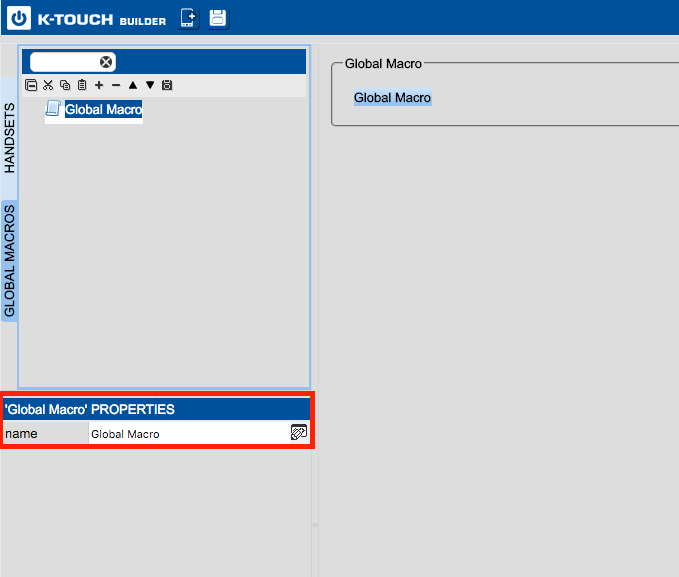

  • Rename your global macro in the properties window
  1. Add commands and actions to the global macro

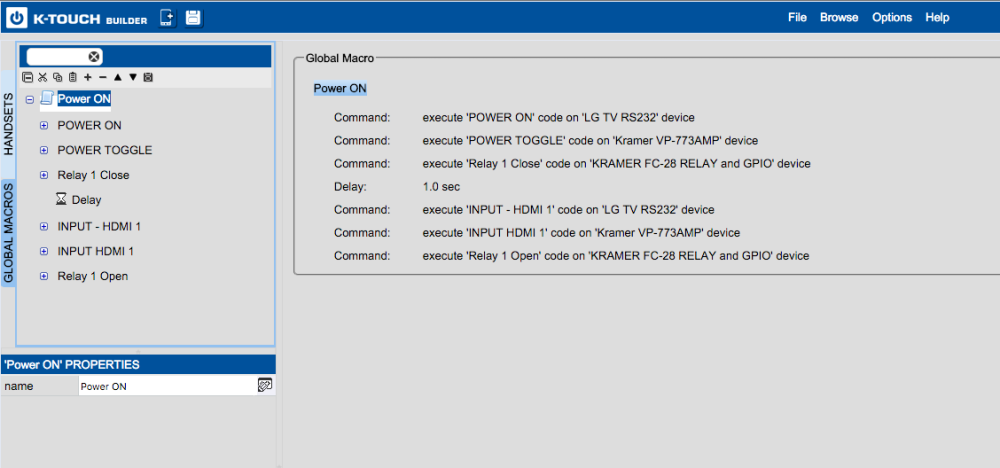

  • Once the global macro is created, add commands and actions to it just like a button macro (Note: links cannot be loaded into a global macro because pages and panels are not global across different handsets)
  • You have just created your global macro
  1. Alternatively

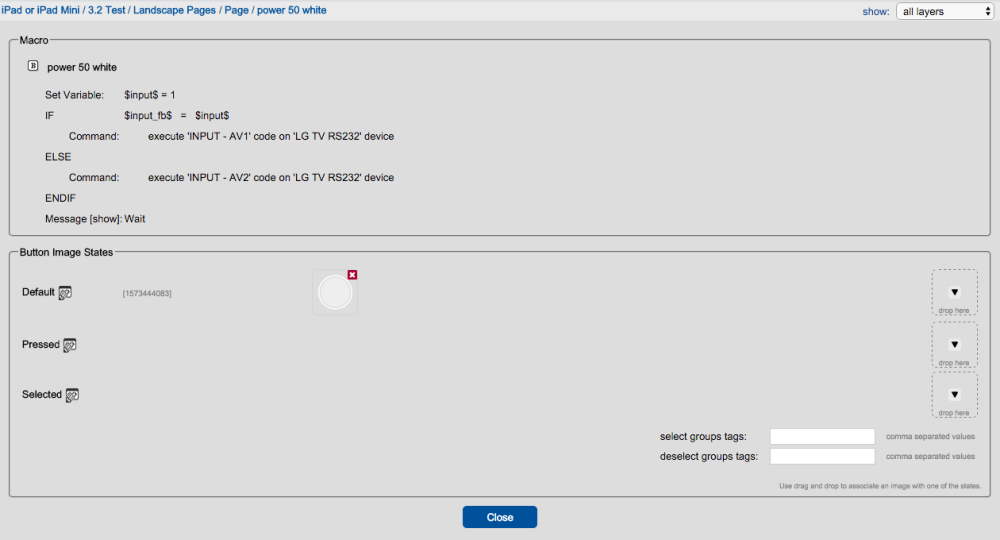

  • Another way to create a global macro is to convert a current button macro into a global one. To do this, double-click a button to reveal its macro

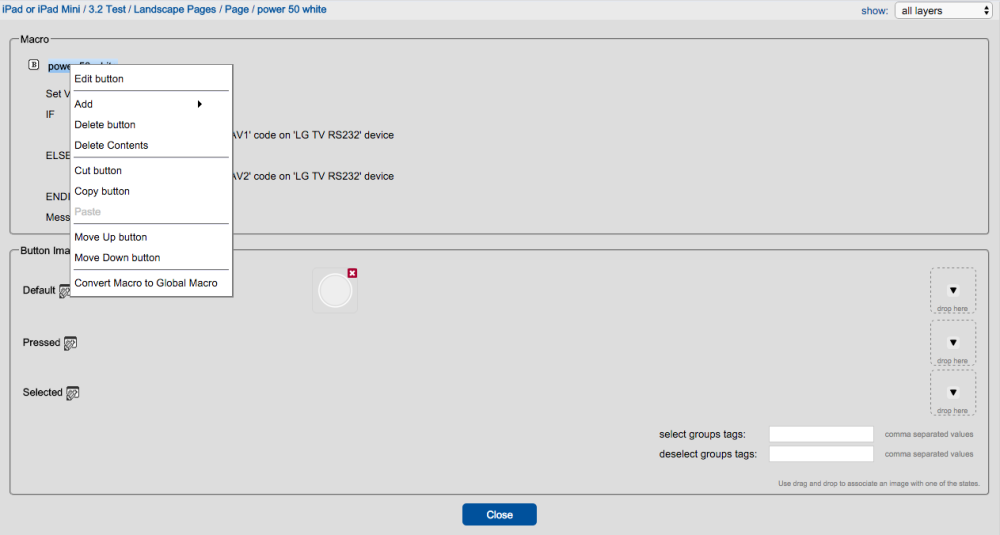

  • Right-click on the macro to bring up a menu

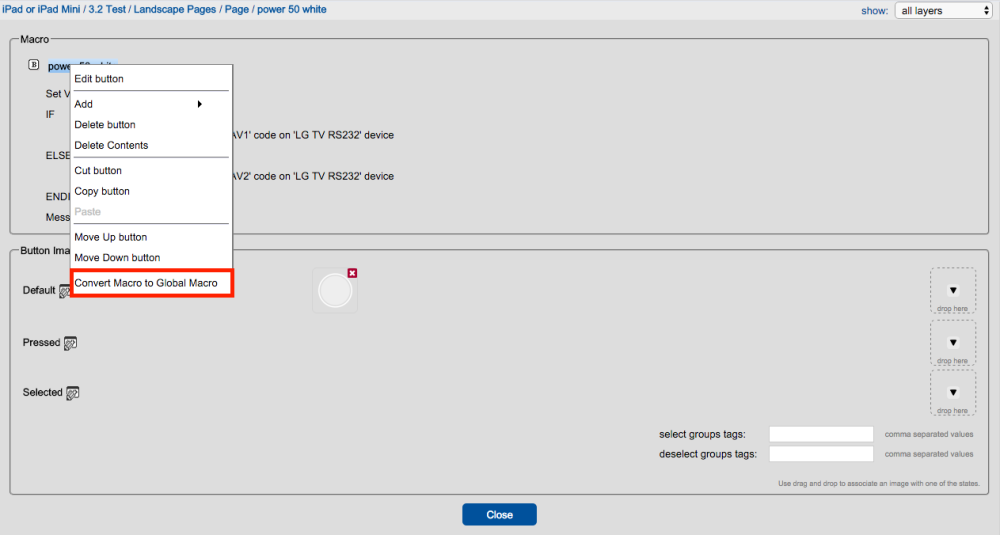

  • Select Convert Macro to Global Macro

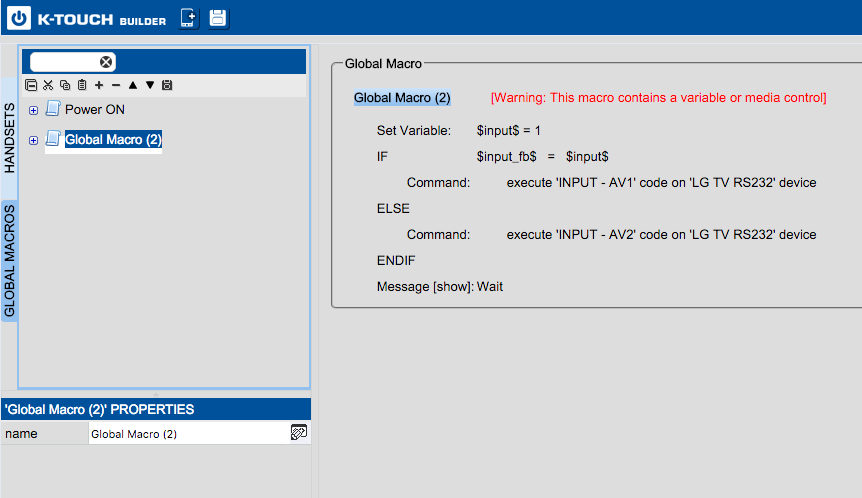

  • The global macro now exists in the global macro tree
