Kramer Control – new tablet setup from tablet

Overview

The Kramer Control setup on the new model, KT-208 & KT-2010, is different from previous versions of Kramer Control. If you intend on setting up the connection between the touch panel and the Brain from the tablet itself, follow the steps below:

Process

Step 1: Launch Chromium

Step 2: Enter IP address of Brain followed by :8000
p(banner tip). If you are using a KC Virtual Brain 1 or 5 the above port will start with 8001

Step 3: Select your Interface

Step 4: Copy the URL

1. Click on the URL bar
   • When you click on the URL, the text will disappear and this is expected
2. Select the icon to copy

Step 5: Open Kramer Agent application

1. You will need to select the home button after copying the URL
2. Click on the Kramer agent application

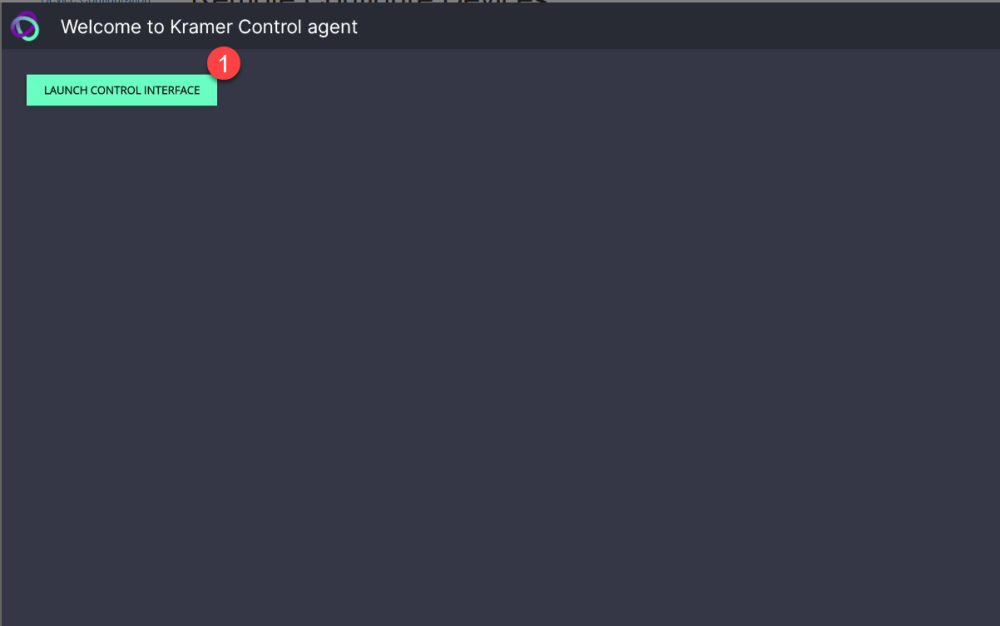

Step 6: Launch Control Interface

Step 7: Enter IP Address and Interface ID

*Once you click on the Launch Control Interface, your copied URL will auto load into the text box. Just click OK for the interface to be opened in full view
