Power Connection
ConveyLinx-Ai2
Power connector is Degson DG245-5.0, 12 AWG (3.31 mm 2) Max wire size, 5-6 mm strip length
ConveyLinx-Ai3-24-FC
Insulation Displacement for standard AS-Interface cable, optional separate cable for logic power
ConveyLinx-Ai3-24-RC
Insulation Displacement for Type MTW (or equivalent) wire. Motor Power 10 AWG (6.0 mm 2) 80 strand, insulation hardness 85 or less. Optional Logic Power 14 AWG (2.5 mm 2) 48 strand, insulation hardness 85 or less.
Electrical Ratings
| Power supply voltage | 24.0V +/- 10% |
| Input Protection Rating | Class III |
| Standby current consumption | < 120mA |
| Motor Starting Current | ≤ 8A per Motor |
| Motor Rated Current | ≤ 3A per Motor |
Environmental Ratings
| Minimum Operating Voltage | 21 |
| Maximum Operating Voltage | 30V |
| Storage temperature | -25ºC to 70º C ( -13ºF to 160ºF) |
| Ambient Operating temperature | Standard Module: 0ºC to 40ºC ( 32°F to 104°F) Freezer Rated Module: -30ºC to 40ºC ( -22°F to 104°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 0.152 mm (0.006 in.) displacement, 1G peak |
| Mechanical Shock | 20G peak for 10ms duration (1.0 ms) |
| Enclosure IP Rating | IP54 |
| Maximum peak current | 21.5A* |
| Maximum motor start current | 8A |
*This is the maximum current that will be allowed by the hardware over current protection circuitry. On board firmware limits the amount of current based on the quantity and motor types connected
Certifications & Standards
| BDS EN 61131-2:2008 | Programmable controllers — Part 2: Equipment requirements and tests |
| BDS EN 61000-6-2:2006 | Electromagnetic compatibility (EMC) — Part 6-2: Generic standards – Immunity for industrial environments |
| BDS EN 61000-6-4:2007+A1:2011 | Electromagnetic compatibility (EMC) — Part 6-4: Generic standards – Emission standard for industrial environments |
| BDS EN 55016-2-1:2009+A1:2011 | Specification for radio disturbance and immunity measuring apparatus and methods Part 2-1 Methods of measurement of disturbances and immunity. Conducted disturbance measurements |
| BDS EN 55014-1:2007+A1:2009 +A2:2011 | Electromagnetic compatibility – Requirements for household appliances, electric tools and similar apparatus — Part 1: Emission |
| BDS EN 61000-4-2:2009 | Electromagnetic compatibility (EMC) Part 4-2: Electromagnetic discharge Immunity test |
| BDS EN 61000-4-4:2012 | Electromagnetic compatibility (EMC) Part 4-4 Electrical fast transient/burst immunity test. |
| BDS EN 61000-4-5:2007 | Electromagnetic compatibility (EMC) Part 4-5 Surge immunity test. |
| BDS EN 61000-4-6:2009 | Electromagnetic compatibility (EMC) Part 4-6 Immunity to conducted disturbances, induced by radio-frequency field |
| BDS EN 61000-4-11:2009 | Electromagnetic compatibility (EMC) Part 4-11 Voltage dips, short interruptions and voltage variations immunity tests |
Sensor Port I/O

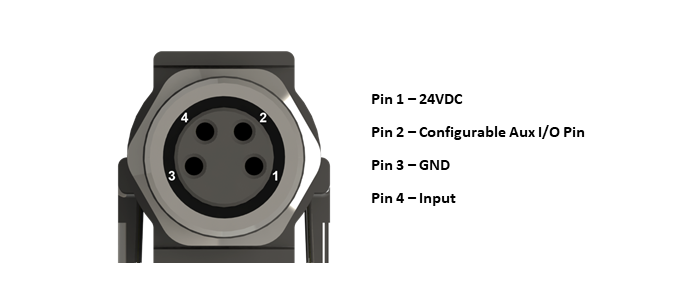

Each Module is equipped with two 4-pin female M8 style Sensor I/O ports primarily used to connect a photo-electric sensor to the module. Each of these ports has one pin dedicated as an input for the sensor (pin 4) and one Aux I/O pin (pin 2) that is configurable to be either an input or an output.
Sensor Input Signal (M8 Pin 4)
The sensor input (pin 4) is auto-sensing for PNP or NPN circuit type such that both sourcing and sinking current will activate the input based upon the following conditions:
| Minimum ON Current | 1.5 mA |
| Maximum OFF Current | 0.4 mA |
Aux I/O Signal (Pin 2) when configured as as INPUT
When configured as an INPUT, the Aux I/O (pin 2) is auto-sensing for PNP or NPN circuit type such that both sourcing and sinking current will activate the input based upon the following conditions:
| Minimum ON Current | 1.5 mA |
| Maximum OFF Current | 0.4 mA |
Aux I/O Signal (Pin 2) when configured as an OUTPUT

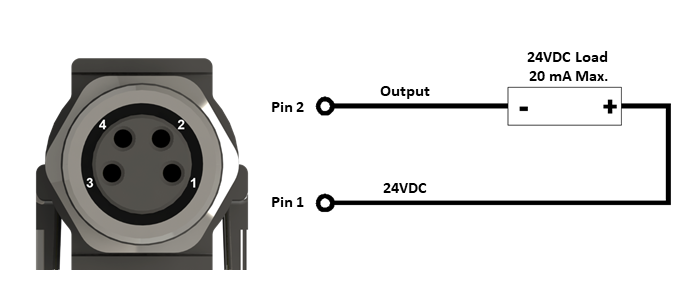

When configured as an OUTPUT, the Aux I/O (Pin 2) provides an NPN only circuit as illustrated:
Sensor Port 24VDC (Pin 1) and GND (Pin 3)
Pin 1 of each Sensor Port provides 24V for powering up a sensor device and/or for supplying the load for the Aux I/O (Pin 2) when configured as an output. The available current for the two control ports on the module is limited internally by a solid-state fuse. The maximum combined current consumption for the two sensor ports is 100 mA.
Motor Port
| Supported motor types | Senergy Ai |
| PWM frequency* | 25 kHz +/- 0.1% |
| Maximum starting current | 8A |
| Maximum rated current | 3A |
| Motor Protection** | Coil-to-coil short, coil-to-Vcc short, overheating, over-voltage, under-voltage, stall sensing and protection |
- The PWM frequency is firmware version dependent
Motor Ports in Digital Output Mode
Either the Left or Right (or both) Motor Ports can be configured to operate their respective motor coil output transistors as 24V DC digital output signals. These digital output signals are sinking type only and will accommodate up to 1A on a given output pin, but restricted to a total of 1.5A for both pins on a given port.

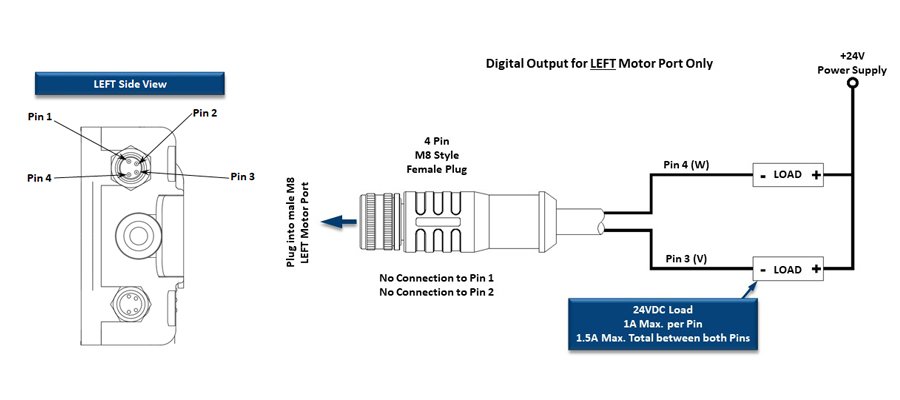

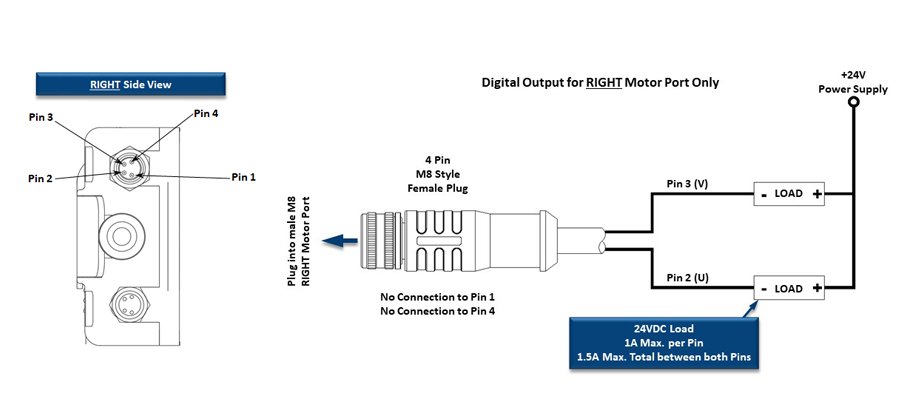

For each of the Motor Ports, only 2 out of the 3 total motor coil output pins are available as digital outputs for a total of 4 Motor Port digital outputs available per module. Please note that these 2 available motor coil pins are different between the Left and Right Motor Ports as illustrated:
Ethernet
• 3 port integrated switch ( 2 external ports and 1 port for the on-board processor)
• Automatic speed setup (10Base-T / 100Base-TX)
• Automatic duplex configuration (Full / Half)
• Automatic straight/crossover cable detection ( Auto MDI/MDI-X)
• PAUSE frame support
• Back pressure flow control support
• Maximum segment length: 100m / 328ft
Supported Protocols
• Modbus/TCP
• EtherNet/IP
• Profinet IO
• CCLink IEF Basic
