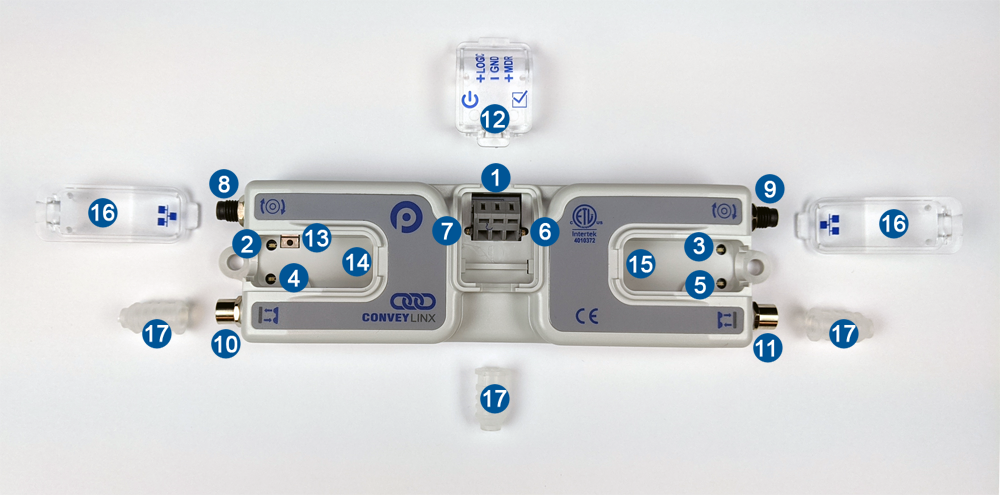

Item |
Description |
|
24VDC Power Terminals with separate connections for Logic and Motors |
& |
Motor Left LED & Motor Right LED – Motor status indicators |
& |
Left Sensor & Right Sensor Status LED Indicators |
|
Module Status LED Indicator |
|
Module Power LED Indicator |
& |
Motor Left and Motor Right Port – 4-pin M8 style connector for MDR connection |
& |
Sensor Left and Sensor Right Port – M8 style connector for zone photo-sensor connection |
|
Removable IP54 Power Compartment Cover |
|
Module Replacement Button |
& |
Link Left and Link Right – RJ-45 style Ethernet network connection between modules including LED Indicators |
|
Removable IP54 Ethernet RJ-45 Port Compartment Cover – Left and Right |
* |
IP54 Protection Shrouds for Ethernet cabling and power wiring |
