Text

Adding text:

• Select the Text button in Flexijet Stone, or Flexijet’s screen

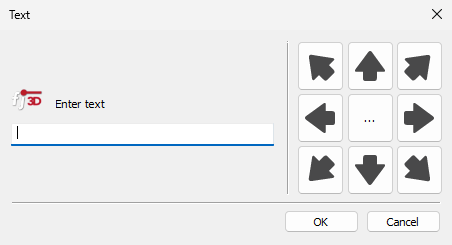

• Enter the text in the dialog window, and select the direction of the text.

• Now, place the text by clicking, entering coordinates, or measuring with Flexijet. Press the ‘Enter’ key or the ‘Confirm’ button.

Note: A specific rotation angle can also be set by clicking OK in the text dialog window and entering the rotation in degrees. (0 degrees is horizontal). Alternatively, you can simply click and drag to set the rotation angle.

Shortcut: ‘Label’

• Text can also be inserted with R-click > ‘Label’. Type the text and press ‘Enter’ or ‘Confirm’



Editing text:

• Right Click on the text to be edited and choose ‘Edit text’


• Edit the text in the dialog box
