Multiple Lines

The Multiple lines function allows a user to draw single lines with a start point and an endpoint and then continue to draw additional lines with a new start point and end point.

This function is typically used to measure straight lines, such as cabinet boxes and panels.

How to use Multiple Lines:

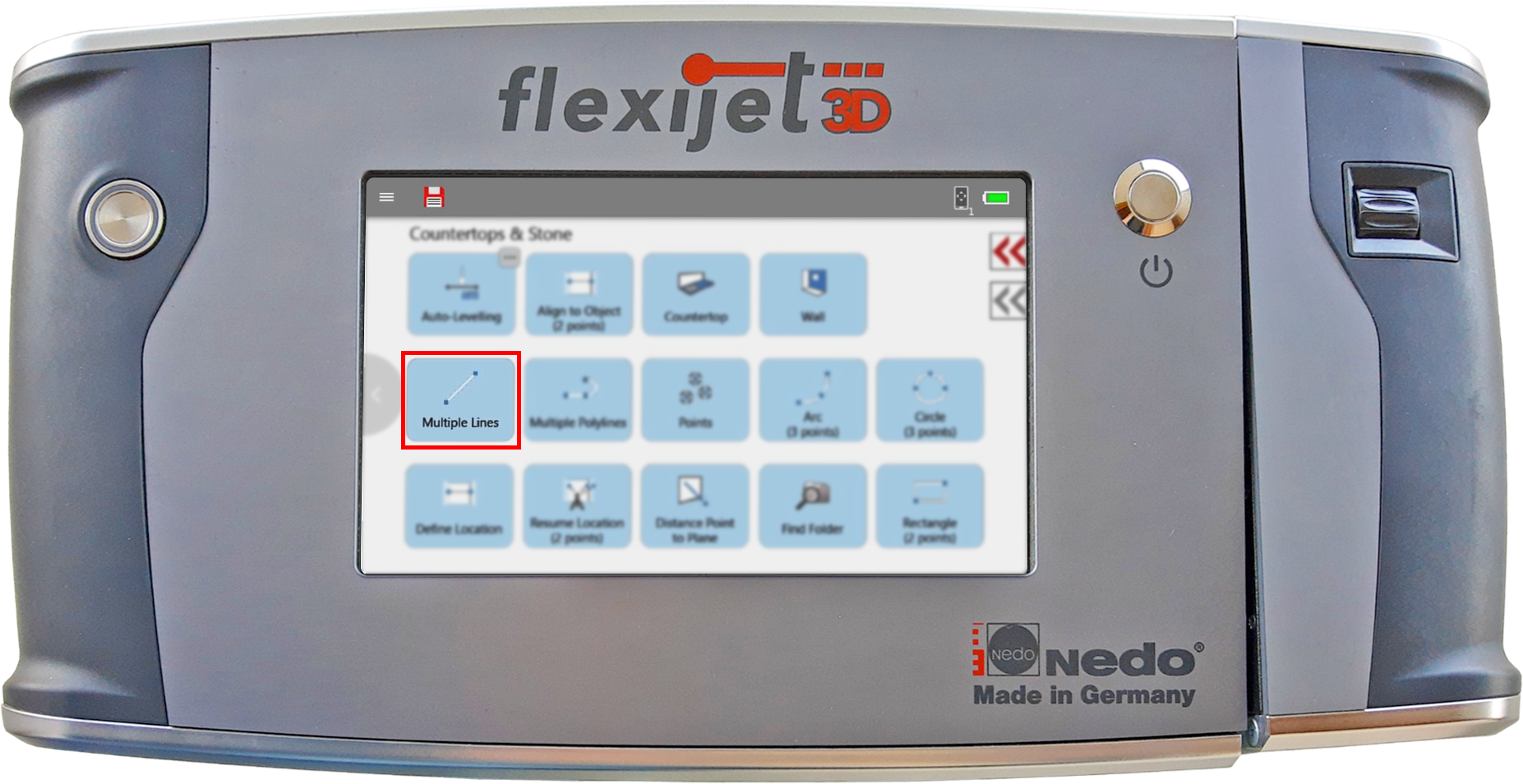

• To use this function, select it from the ‘Draw’ ribbon, or from the Flexijet Touchscreen.

• Now, click, tap, enter coordinates, or measure the first point.
• Then, click, tap, enter coordinates, or measure the second point.
• The line is created, and another line may now be created with a new start point.
• To end, press ‘cancel’ on the Flexijet, ‘confirm’ or ‘Cancel’ in Flexijet Stone, or ‘Esc’ on your keyboard.

Line

How to use Lines:

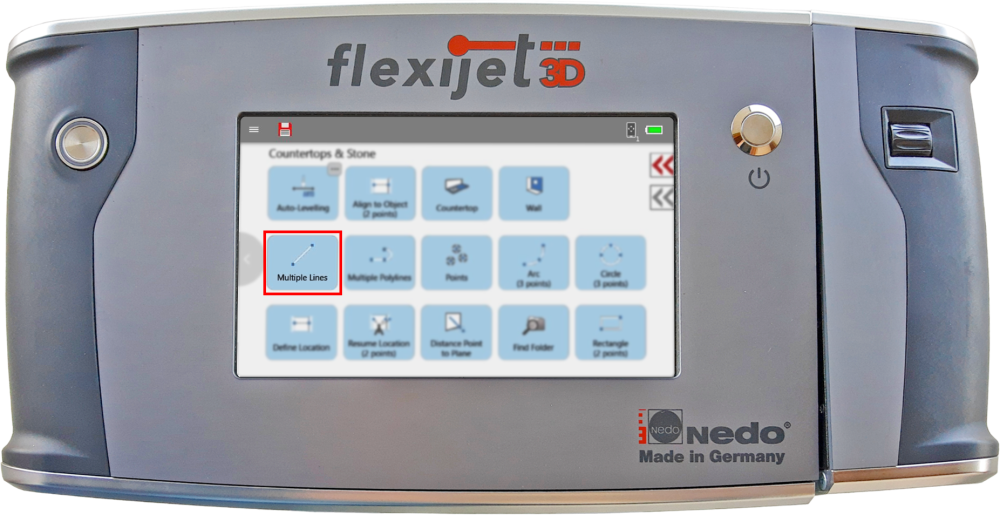

• To use this function, select the ‘Line’ function from the dropdown menu of multiple lines.
• Now, click, tap, enter coordinates, or measure the first point.
• Then, click, tap, enter coordinates, or measure the second point.
• The line is created, and another line may be created with a starting point based on the last point of the last line. This means that lines will be connected.
• To end, press ‘cancel’ on the Flexijet, ‘confirm’ or ‘Cancel’ in Flexijet Stone, or ‘Esc’ on your keyboard.
