Break at a Point

The ‘Break at a Point’ function is used to break an object between two points.

How to use the Break at a Point function:

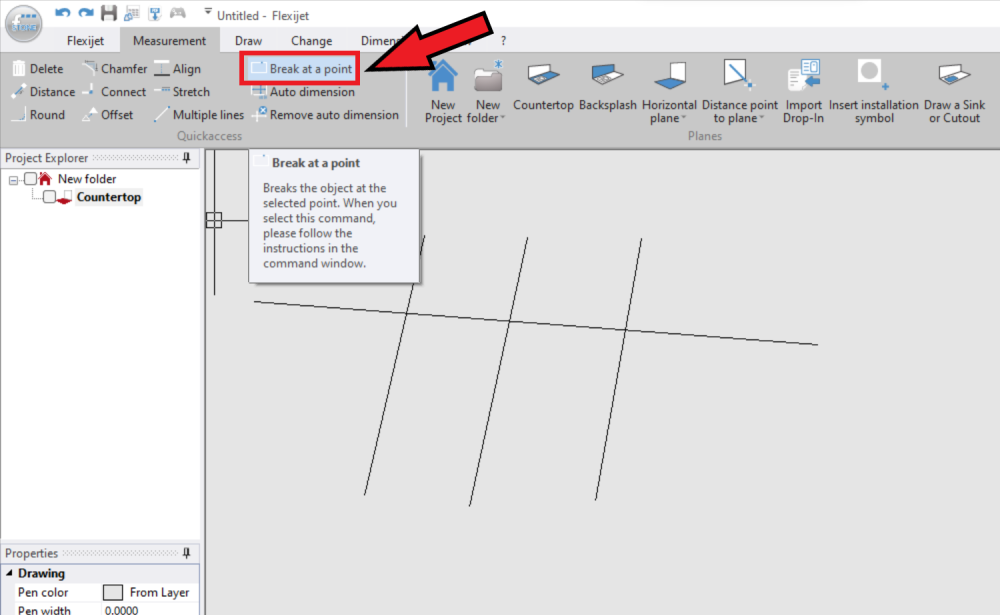

• Select the ‘Break at a Point’ button


• Select the object you wish to break. (Note: confirmation by clicking ‘confirm’ or ‘enter’ is not required).

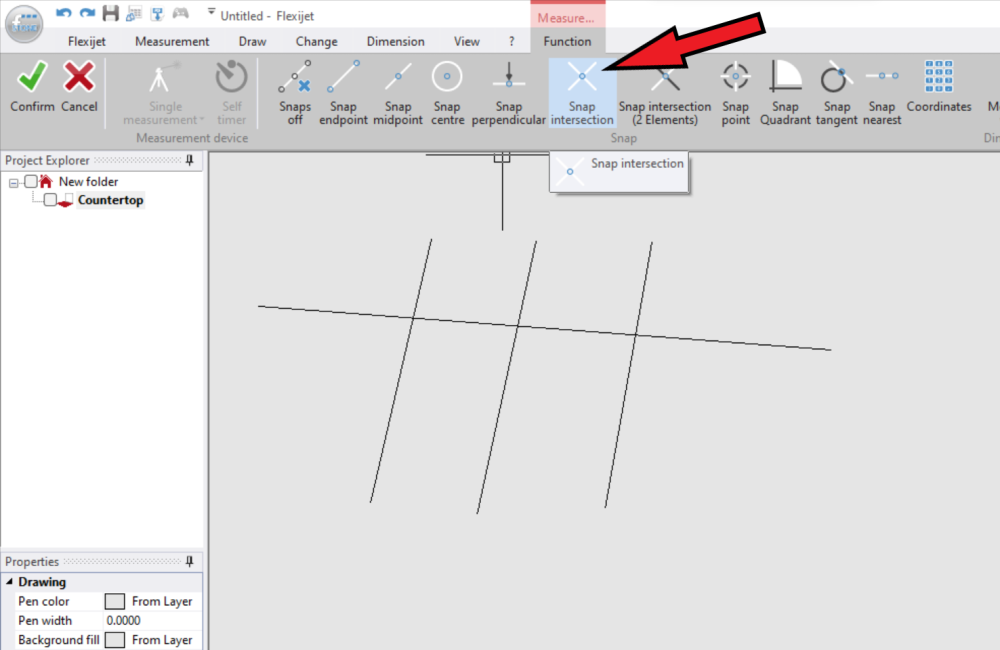

• Click on the Snap Intersection button from the upper menu that appears.

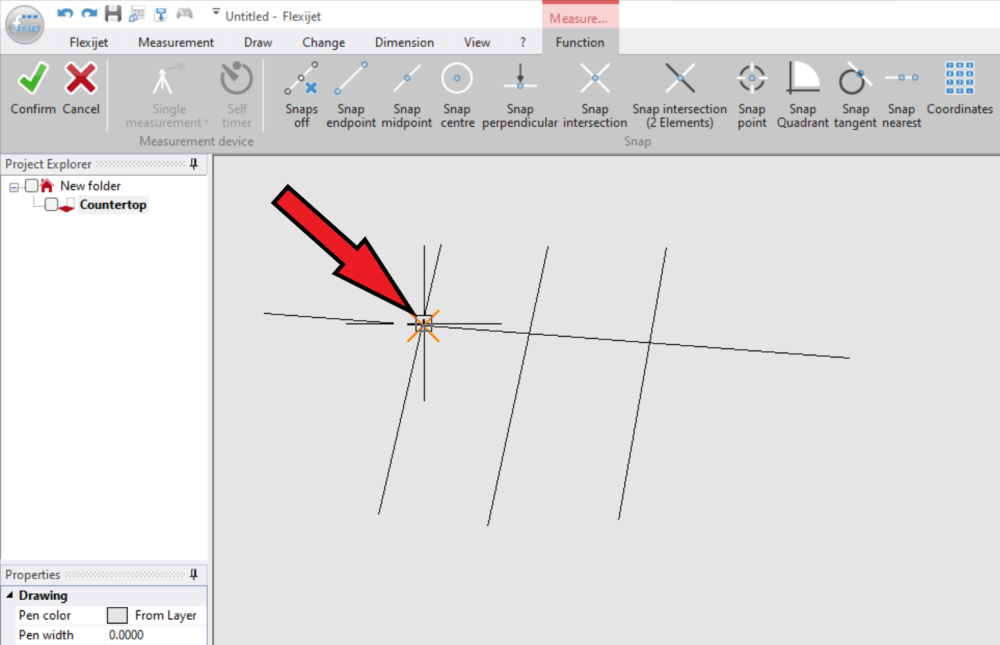

• Click or tap to select the breakpoint.

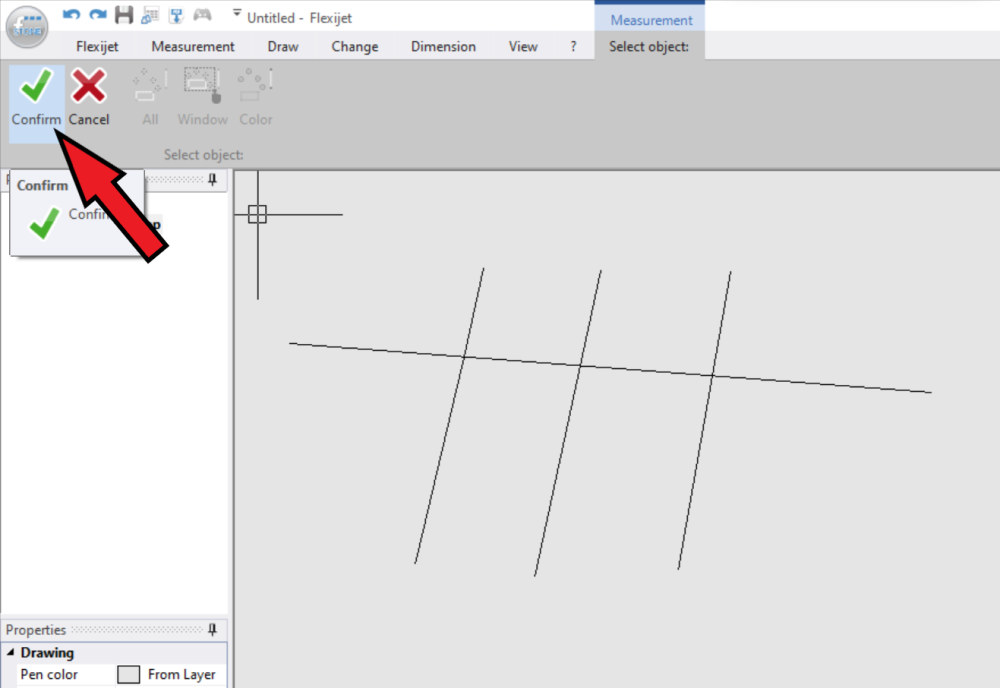

• Click on the confirm button to end the command.


Example gif.

To break between 2 points, use ‘Break 2 points’.
To break all elements at a line, use ‘Break at a line’
