Align to Object

*The ‘Align to Object’ command is usually used when starting a measurement, right after Auto-Levelling.

!Use this function right after auto-leveling, but before creating a folder/plane.

• This function aligns the measurement drawing based on 2 reference points, usually measured on the main front edge of cabinets or on the back wall.
• If you haven’t used this function, it is possible that the drawing is going to be displayed rotated in the canvas area, which does not affect the dimension accuracy. In this case, the ‘Align’ function can usually be used to rotate the drawing view.

How to use this function:

• Select the ‘Align to object’ command from the ‘FlexijetStone’ ribbon, or from the screen of the Flexijet.
  • FlexijetStone ribbon:

  • Flexijet Screen:


• A Dialog window will open allowing for the selection of the type of alignment:


• Simple placement: The X axis of the coordinate system is set with 2 measurement points (usually measured on a straight wall, or in the front edge of principal cabinets). The Z axis of the coordinate system is in the middle of the Flexijet.
• Simple placement with origin: Same as Simple placement, with the added step to set the origin point with an additional measurement. This measurement is usually done on the floor.

• After selecting one of the two options, follow the prompts in the Command window to measure the correct points (left, then right for simple placement). Typically, these 2 points will be measured on a a wall, similar to setting a vertical plane, or on the front face of a bank of cabinets.

• If selected, simple placement: follow the prompts in the Command window to measure the correct points (left, then right). Typically, these two points are measured on a wall, similar to setting a vertical plane, or on the front face of a bank of cabinets.

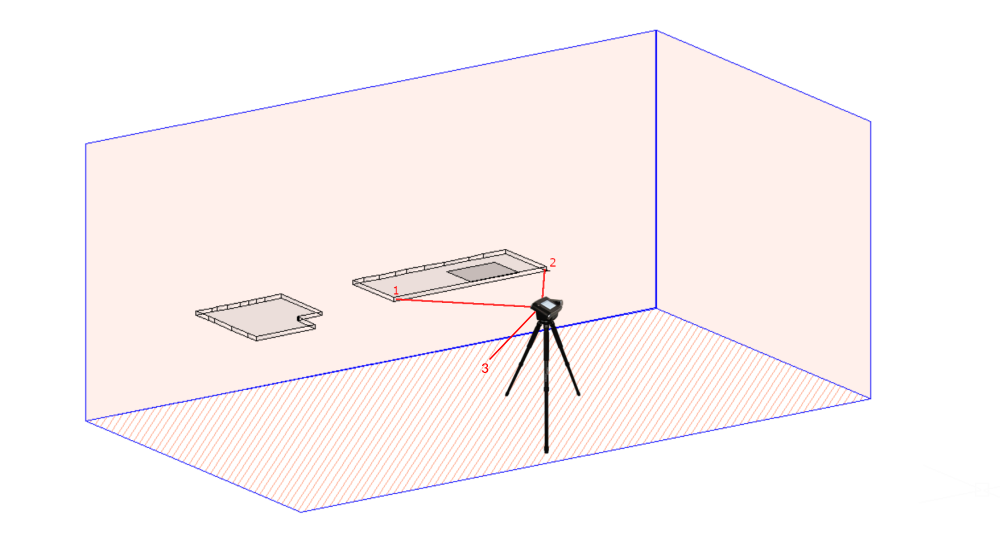

• If selected, Simple placement with origin: follow the prompts in the Command window to measure the correct points (left, right, then origin). Typically, these 2 points are measured on a wall, similar to setting a vertical plane, or on the front face of a tread. Then, the origin point is usually measured at the floor.


*If points have already been measured in the drawing, a warning dialog will appear, confirming that this function will lose the reference to these already measured points. In the example of measuring a bathroom countertop with no physical or locational relation to the previously measured kitchen, press ‘yes’ to continue.
