Series of Measurements – Automatic Measuring

The ‘Series of Measurements’ function is a powerful tool for configuring the Flexijet 3D for automated measuring. The Flexijet will automatically produce a series of measurements defined by the user.

Flexijet offers several different ways of setting up automatic measurements to suit your needs. The drop-down section of the ‘Start Series of Measurements’ button in the ‘Flexijet’ ribbon allows you to access these options. These commands define where Flexijet will measure, at what intervals, in what direction, and where to stop measuring.

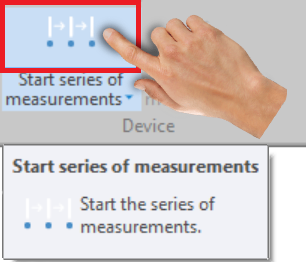

After defining the measurement series to be taken, clicking on the Start series of measurements button will initiate the measurement sequence.

*Note: When in automatic measurement mode, Flexijet only captures measurement photos of the first and last points measured or any points that the user manually measures.

Instructions for types of Automatic Measurements:

• Horizontal – Series of Measurements
• Vertical – Series of Measurements
• Parallel to plane – Series of measurements
• Measure along a path – Series of Measurements
• Digitize Hatch
• Hatch
