Offline System / Module Configuration Screen Tabs / ConveyMerge /


T-Merge Example

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode

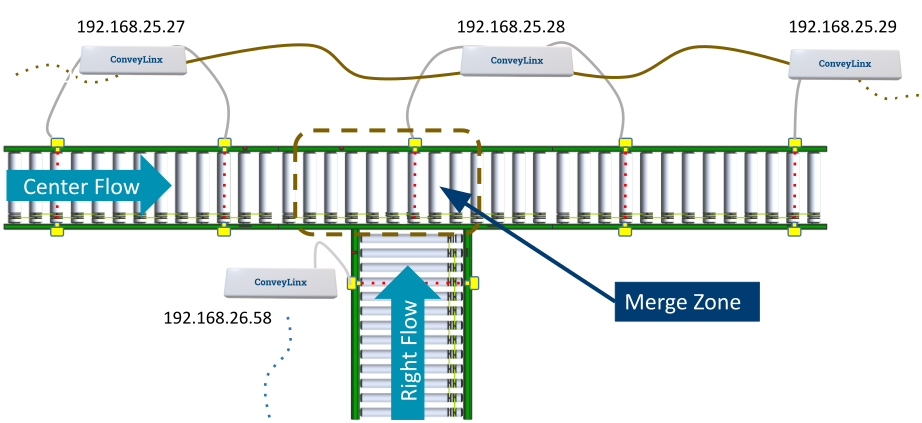

In this example we are going to configure the Right Line to be a T-Merge onto the Center Line and we will set the Merge Priority to be First Come First Served

The Merge Zone is the upstream zone of the module at 192.168.25.28 and the most downstream ConnveyLinx module for the Right Line is at 192.168.26.58. Here is the ConveyMerge Configuration Screen with these values entered
