Network Adapters

Online System /

Network Adapters	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅

	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

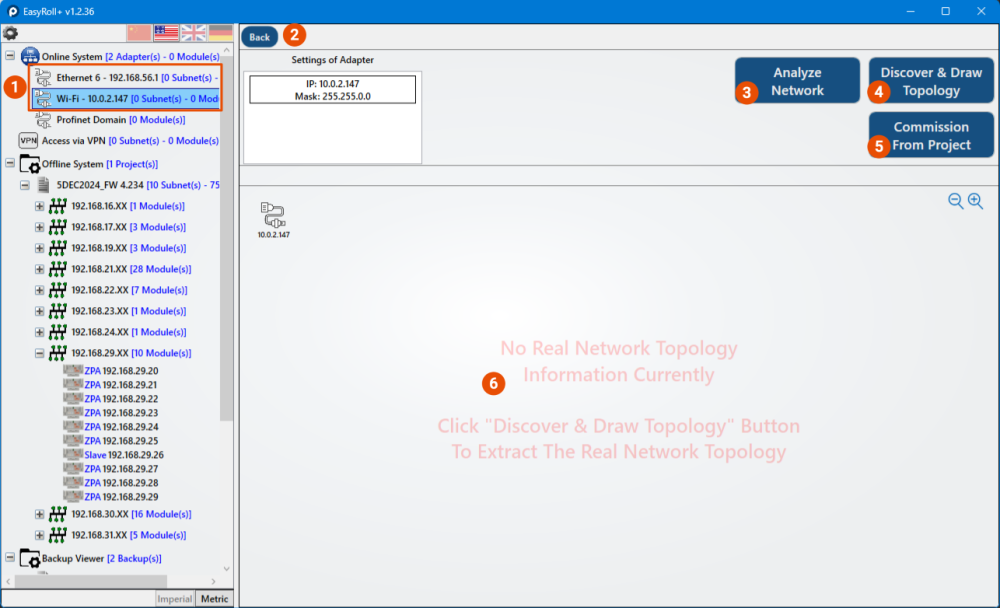

Selecting one of the Network Adapters from the Online System tree presents the below screen. From here you may interact with many aspects of the adapter.

Item	Function	Description
	Adapter	● Other adapters will be shown in this tree just as Wi-Fi, Ethernet 6, etc. is ● Right clicking opens a context menu with “Discover & Draw Topology”, “Disable”, and “Reorder IPs”
	Back	● Return to the Online System Screen
	Analyze Network	● Click to view the settings within which the network is analyzed ● Adjust criteria such as Motors, Zones and Sensors before continuing to “Save & Analyze”
	Discover & Draw Topology	● Click to discover all of the connected modules and their location on the network ● Please use caution when connected to a network with a running system, as this procedure temporarily Stops the system and breaks PLC connection
	Commission From Project	● Transfer settings and Ip Addresses configured on offline projects onto online projects ● Helpful for working on a system in the office then going to the floor to implement the configuration.
	Network Topology	● Here you can see the Ethernet adapter’s IP address ● Modules found within the Networks Topography will be displayed here after “Discover & Draw Topography” has been run
