Module Configuration Screen Tabs /

Registers Poll	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅
	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

Registers Poll Tab

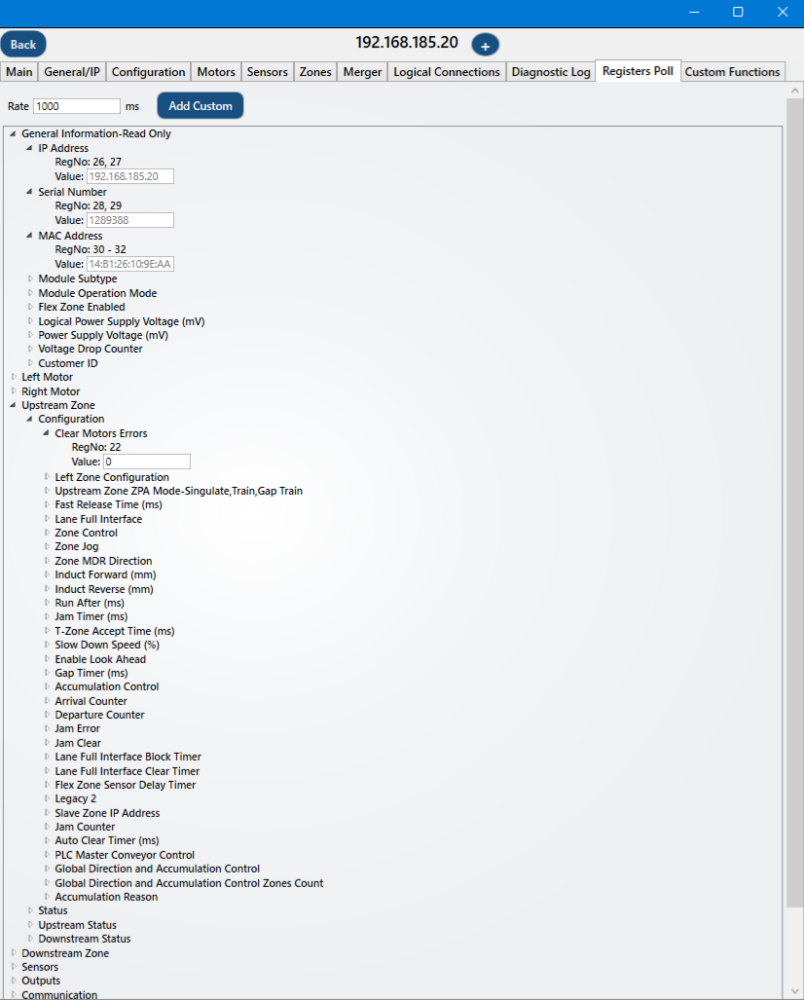

The “Registers Poll” tab shows the registers and the information polled from them. The registers and available data will vary with firmware and module type. You can view the registers and their values (values are dynamic if the system is online) as well as add a Custom register. Please refer to the Developers Guide of your module to find information on additional registers.

Below some of the content has been expanded to display the values and registers, expanding any of these will show this information.

Custom Registers

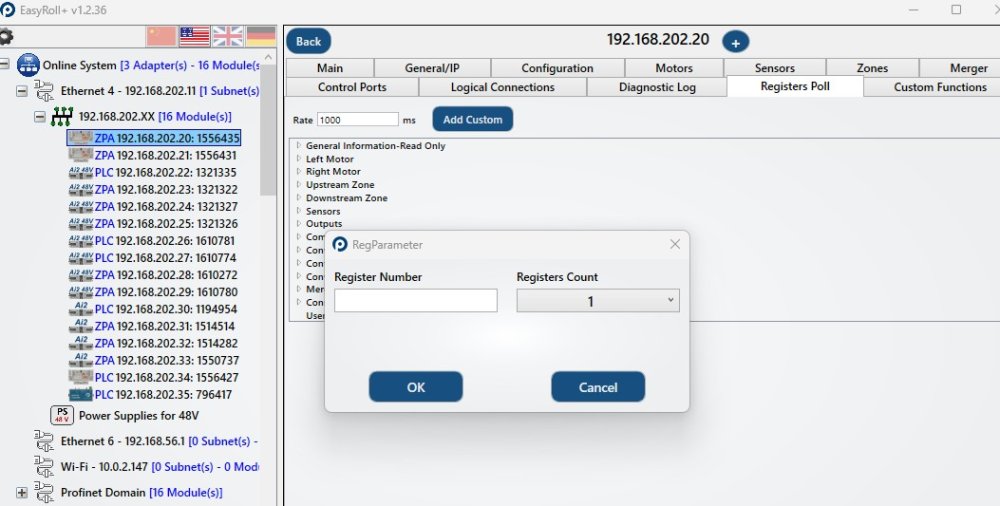

After clicking “Add Custom” button, you can arrange for an additional specific register to be polled. Be aware of the number of bits that the data takes and assign it the correct number of registers. The custom data will appear at the very end of the Registers list under “User Registers”
