Projects - EasyRoll+ User Manual - 1

Offline System /

Projects	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅

	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

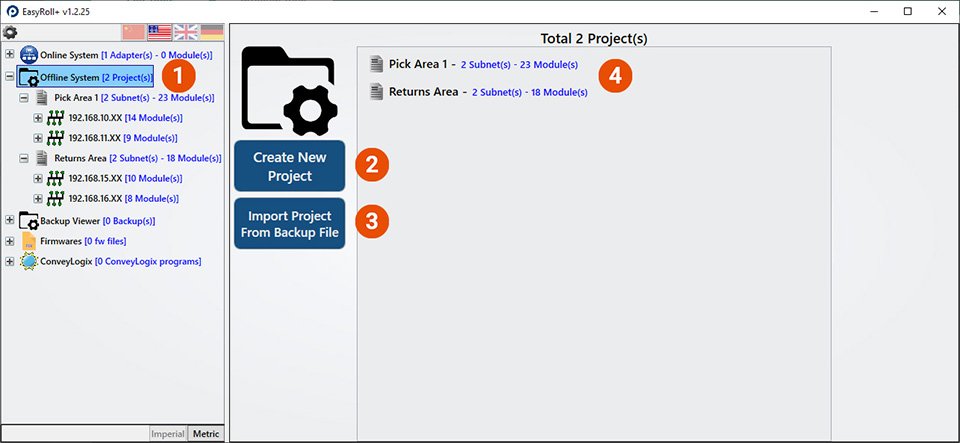

The top level of the Offline System in EasyRoll+ is the Projects screen. From here you can view all saved offline projects as well as create new projects.

Item	Function	Description
	Offline Main Tree	Double click to open the Projects screen Tree expands to show all projects currently saved on your PC
	Create New Project Button	Opens dialog for you to enter a name for the new project Project names must be unique on the same PC
	Import Button	Opens a File Open dialog to select an existing EasyRoll+ backup file Allows you to import a project created by someone else or from a different PC
	Saved Projects	List of currently saved projects on your PC Displays quantity of subnets and total ConveyLinx modules in each project Double click a project to open the Subnets screen for that project
