Online System / Network Adapters /


ConveyStop

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode


The below tutorial video walks you through creating and altering Stop Groups in ConveyStop.



The below image shows you how to navigate to the ConveyStop page from the Online System page

Configure your Stop Groups. Create and modify groupings to be controlled by the start and stops. Force starting and stopping of the selected group.


Item Function Description
Get Real Topology & Redraw
  • Draw how each module is connected to each other in real time, this includes orientation, upstream downstream, the types of modules, their serial numbers and Ip addresses
  • May be helpful if any changes have been implemented to redraw the system before continuing
Discover & Redraw
  • Discover modules on the network and display their individual Ip Addresses, module types and Serial Numbers.
  • Draws the relationships that each of the discovered modules have to each other
Force Start
  • Start the system as it is
Force Stop
  • Halt the system in (approximate) place
Apply Changes
  • Applies the changes you have made to the applicable modules and groups
Undo Changes
  • Cancels most recent changes made to relevant modules and groups
Save Project
  • Save your project before exiting
Import Project
  • Import a project which has been created in EasyRoll+
Topology & Groupings
  • Shows the relationships of any connected modules in the system as well as their current groupings
  • Right click on a module to add or remove it to a group, or select multiple modules to add or remove them to groups, or to create a new group. Additionally right clicking an individual module can add a “Left Start”, “Left Emergency”, “Right Start”, or “Right Emergency”
All Devices
  • This list shows all discovered modules and whether or not they are grouped
  • Grouped and ungrouped modules have the same right click options as they do in the Topology & Groupings section

How to Make a module the PLC Informer

Assign which module should be the one for inform the PLC about which module has triggered a stop.

Step One:

First click “Get Real Topology & Redraw”, confirm and wait for updated image of the system

Step Two:

Group desired modules by clicking and dragging across all of the modules, then right click on them and choose “Create ConveyStop Group”

Step Three:

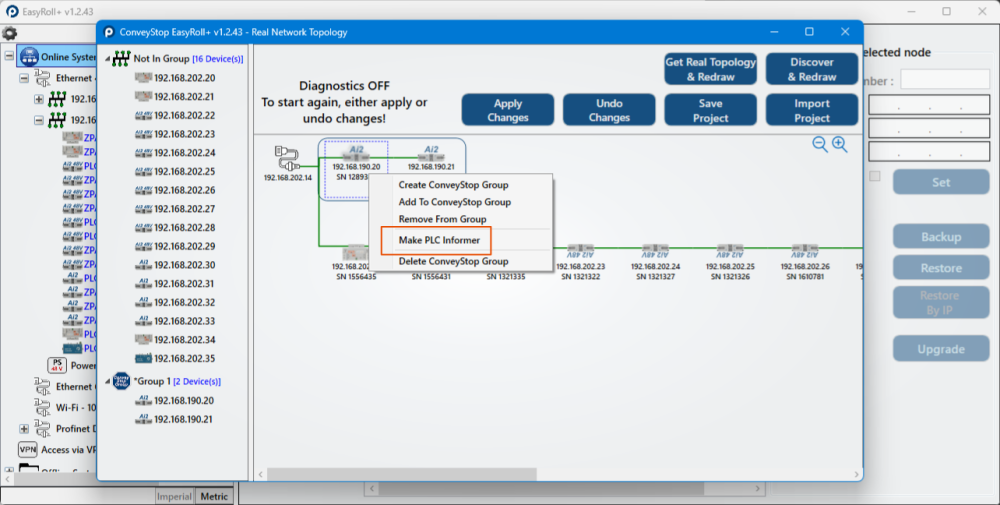

Right click on the module that you would like the assign the informer role, and click the option for “Make PLC Informer”

Step Four:

Click “Apply Changes”
