Backup Viewer - EasyRoll+ User Manual - 1

Backup Viewer	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅

	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

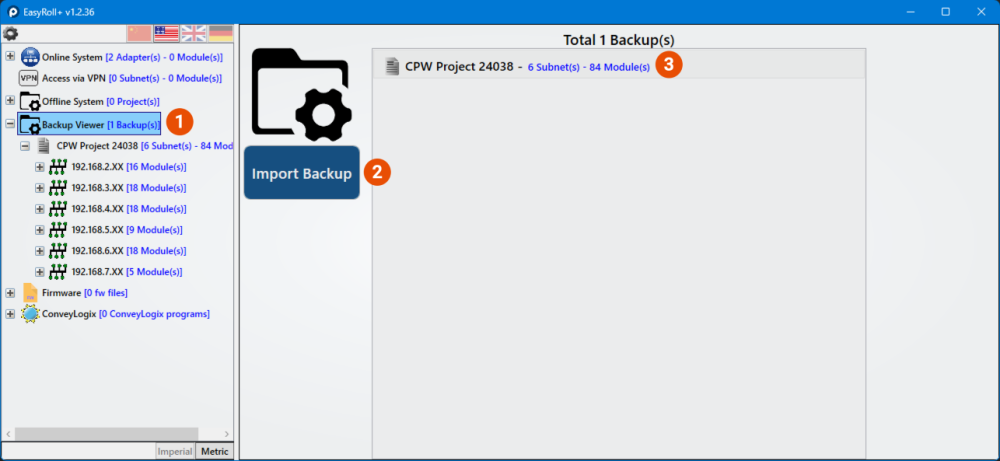

The top level of the Backup Viewer in EasyRoll+ is the Total Backup(s) screen. From here you can view all backed up projects as well as create new project back ups.

Item	Function	Description
	Backup Viewer	Click to open the Backup Viewer screen Tree expands to show all backups currently saved from your PC Right clicking allows you to add backups without navigating to the Import Backup button
	Import Backup Button	Opens dialog for you to select a backup from your PC Project names must be unique and should be meaningful
	Backups	List of currently saved backups on your PC Displays quantity of subnets and total ConveyLinx modules in each project backup Double click a project to open the Subnets screen for that project
