Online System / Network Adapters /


Discover & Draw Topology

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode


Discover and Draw Topology Button

This example is an Ethernet Adapter but it works the same for others. Click the button to Discover all modules on the network and view the Topology of how each module is connected to the network in relation to the next.

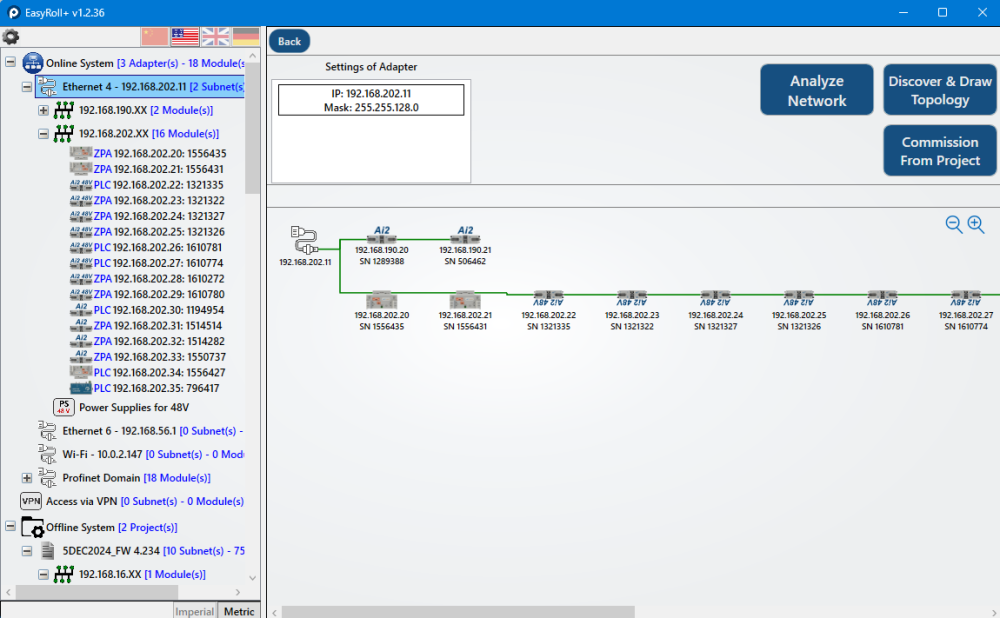

Resulting Discovered and Drawn Image

After utilizing the Discover and Draw Topology the resulting image will appear below. There are two subnets that are connected here, 192.168.190.xx, and 192.168.202.xx, they show all modules with their IP Address and Serial Numbers as well as the orientation of the modules. Modules appearing upside down are this way because of the Network Adapter being on the left, causing the flow to begin on the left where the Network Adapter is illustrated and go to the right.
