Backup Viewer /


Backup Project

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode


Project’s Main Screen

When viewing a particular backup, each subnet will be listed with each individual module. Each module will have its Serial Number and IP Address listed with it, and analyzing the network will provide the notes you see in black and green on the third portion of the screen.

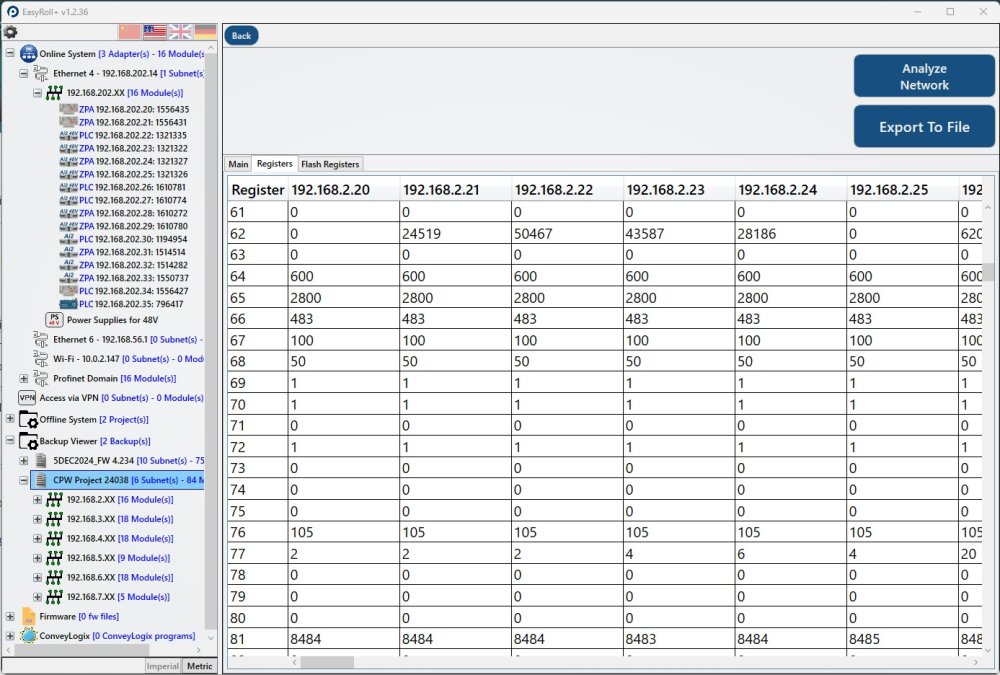

Project’s Registers Screen

Please refer to the Registers Poll tab or the Developer’s Guide for your particular module’s registers. The sheet shows each module and their values for each register, each module is noted on the sheet by IP Address. These are volatile values saved in the RAM, this is a snapshot of the backup projects’ values at the time of saving them.

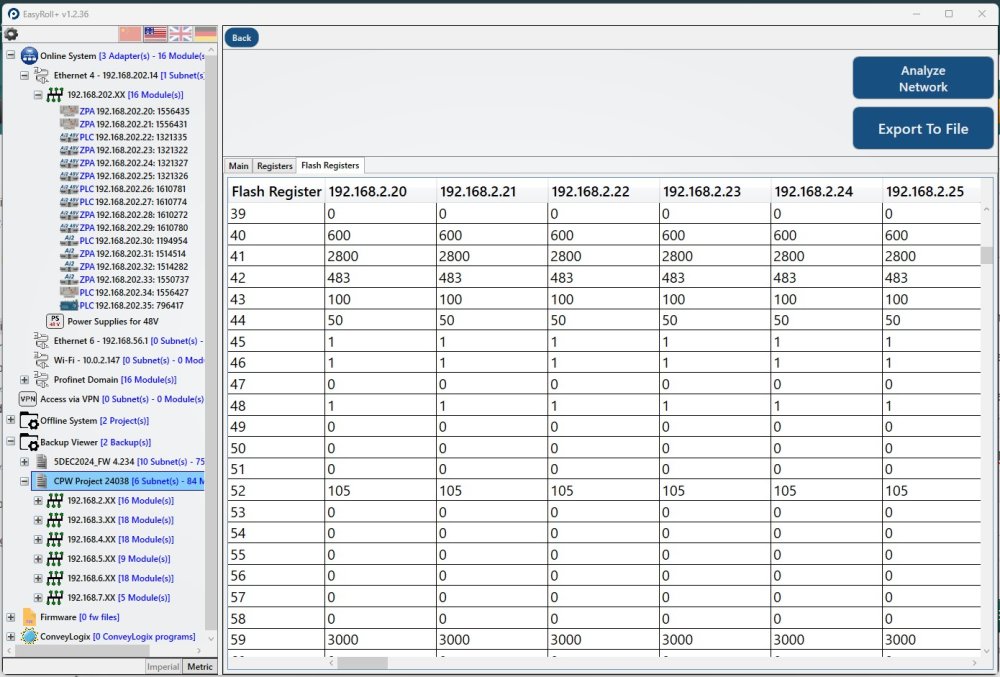

Project’s Flash Registers Screen

Please refer to the Registers Poll tab or the Developer’s Guide for your particular module’s registers. The sheet shows each module and their values for each register, each module is noted on the sheet by IP Address. These are more stable values saved in the Flash, this is a snapshot of the backup projects’ values at the time of saving them.
