Module Configuration Screen Tabs /


Main

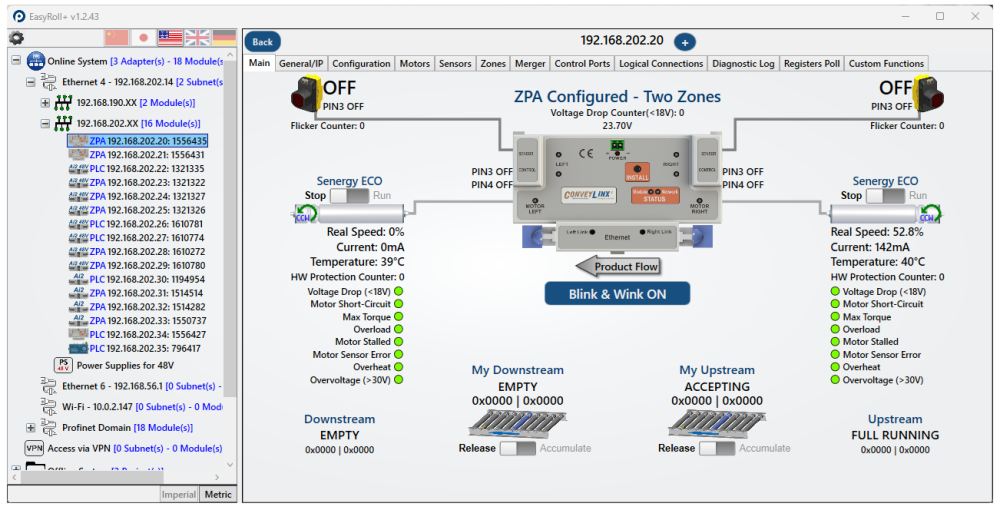

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V

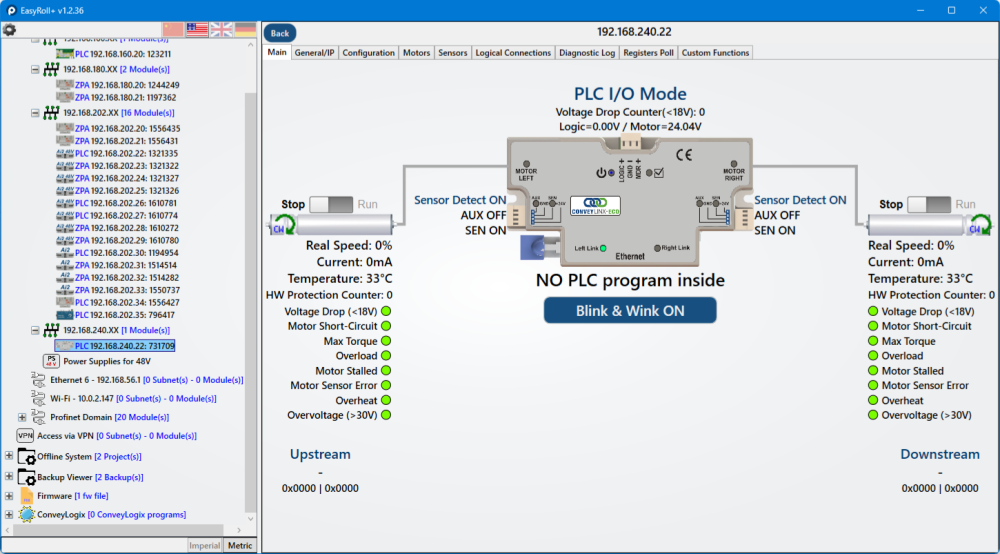

ConveyLinx-ECO ZPA Mode PLC I/O Mode


The Main tab screen shows a graphical image of the selected control module along with its current configuration.



Item Function Description
Next/Previous Selector
  • Displays IP address of currently selected module
  • + button selects the next module in the subnet tree
  • – button selects the previous module in the subnet tree
Back Button
  • Selects the root subnet for the currently selected module
  • Screen tabs will be replaced with the subnet screen
Module Motor Connections
  • Displays information about the module’s motors and their state
  • Shows the mode and configuration currently saved in the offline file for the module or currently present online
  • Graphic changes based on online status, errors and statuses
Configuration Status
  • Displays information about the voltage being received by the module, the sensors connected, the PIN2 and PIN4 settings, sometimes will display product flow direction, Blink & Wink On / OFF state, and circumstantially more
Module Connections
  • Displays information about the module’s upstream and downstream connections
  • Shows the mode and configuration currently saved in the offline file or currently present online
  • Graphics change based on conveyor presence, module presence, and more


Screenshots Showing More Conveylinx Module Examples


ConveyLinx-Ai2 Offline

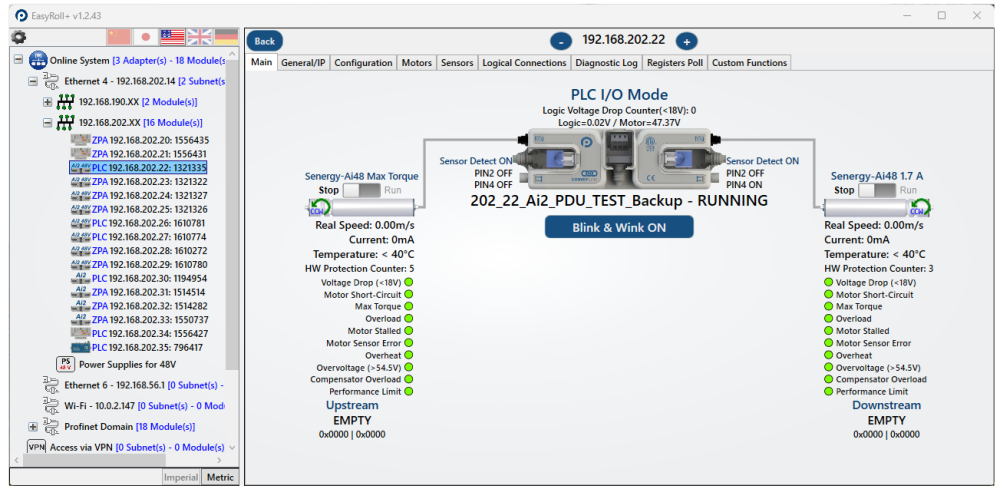

ConveyLinx-Ai2 48V Online

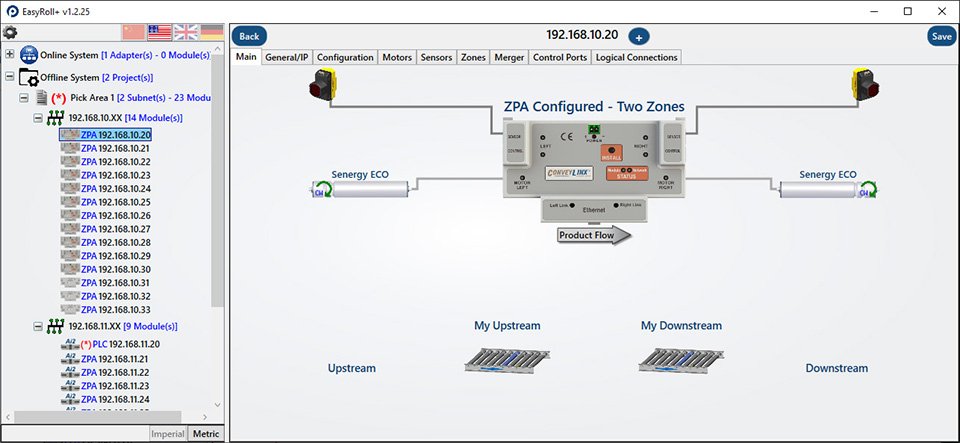

ConveyLinx-ERSC Offline & Online

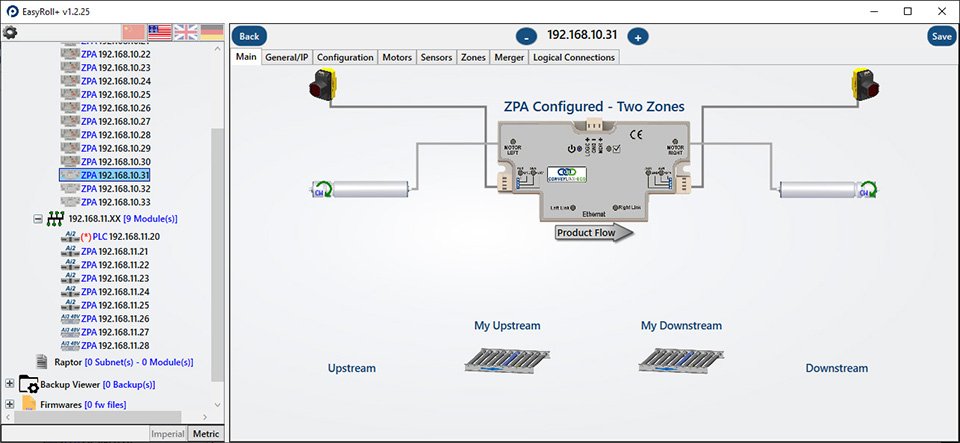

ConveyLinx-ECO Offline & Online
